35W Waterproof Single Output Switching Power Supply LPV-35 series

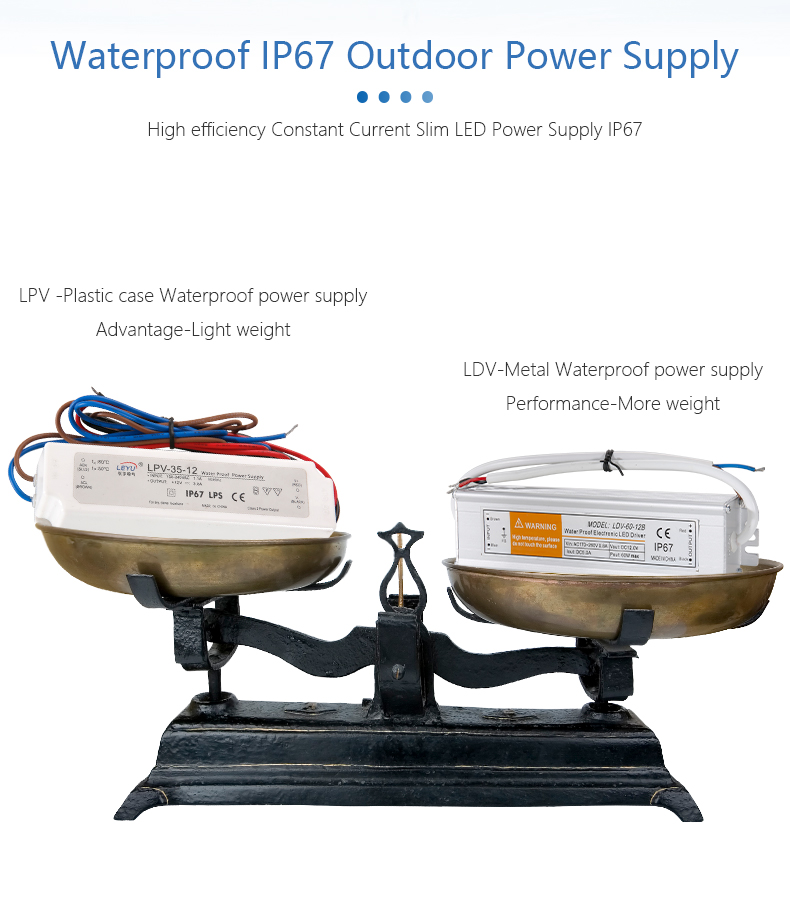

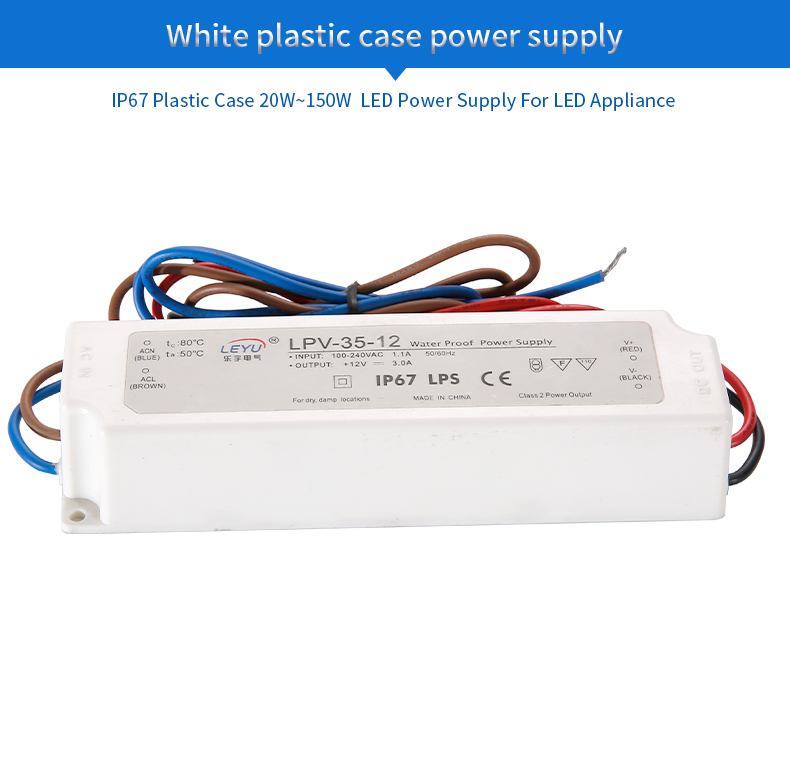

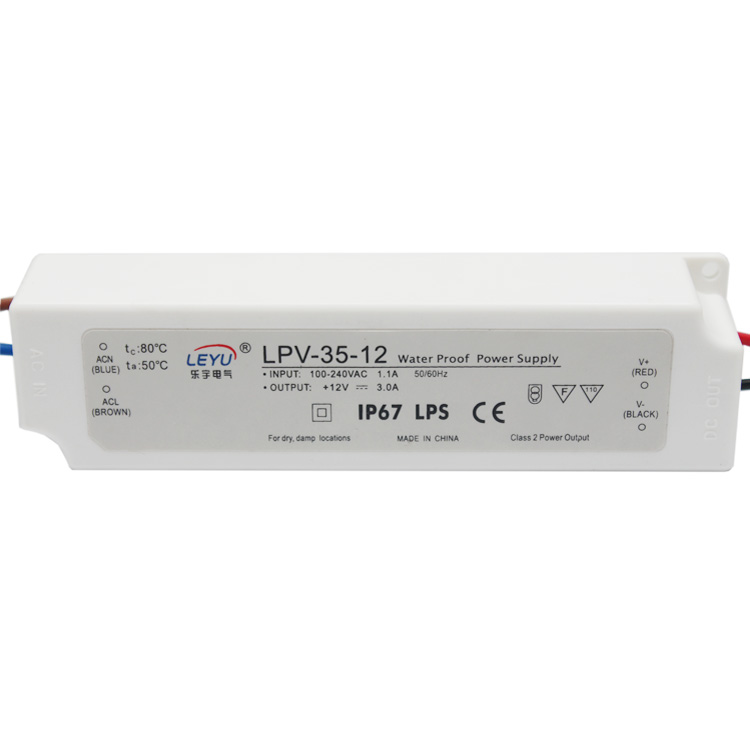

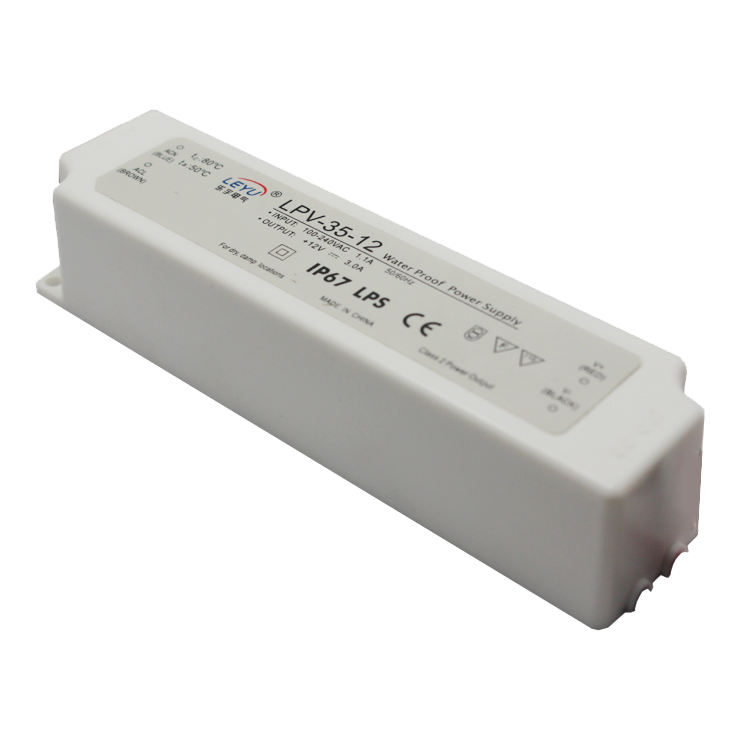

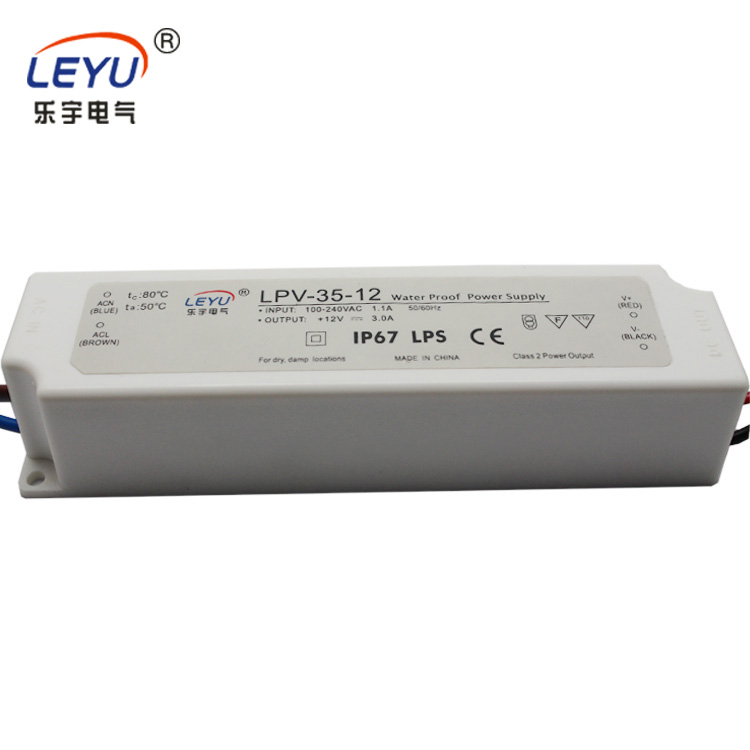

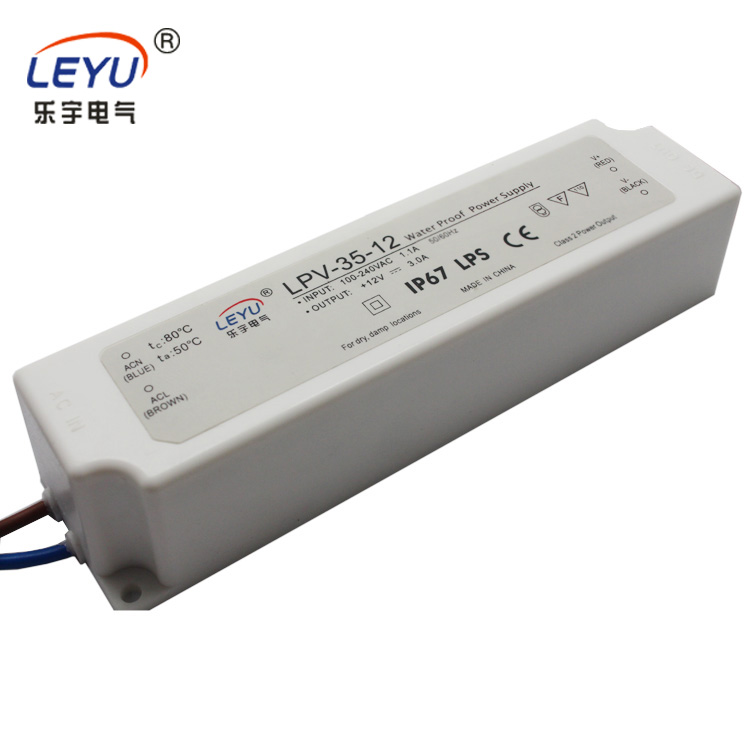

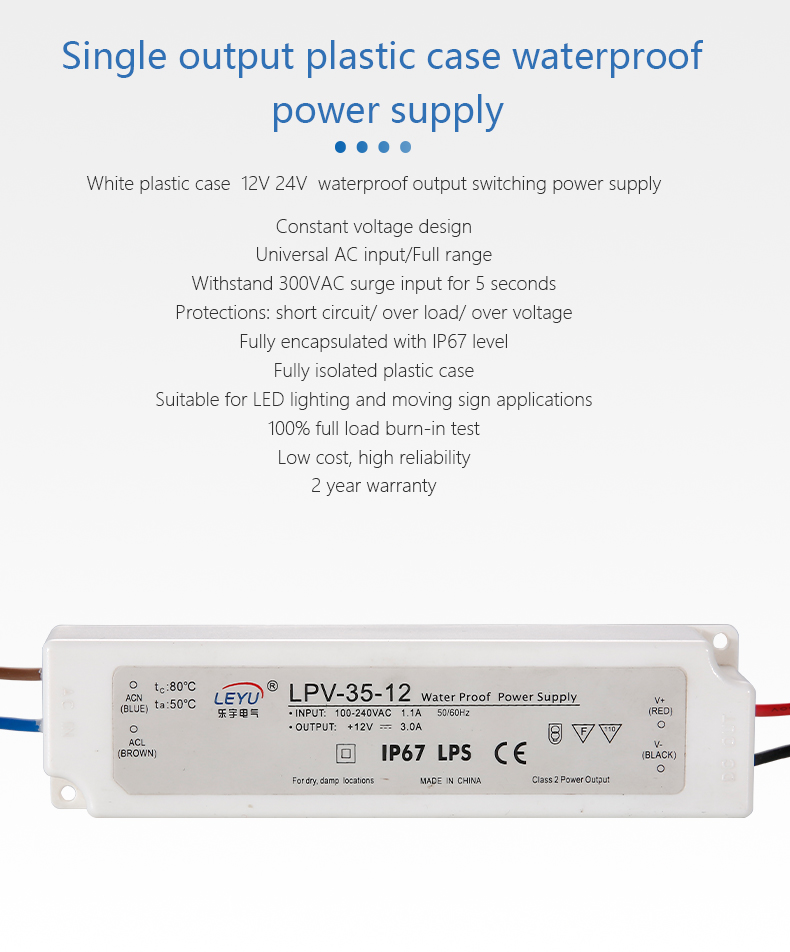

Features:
Constant voltage design
Universal AC input/Full range
Withstand 300VAC surge input for 5 seconds

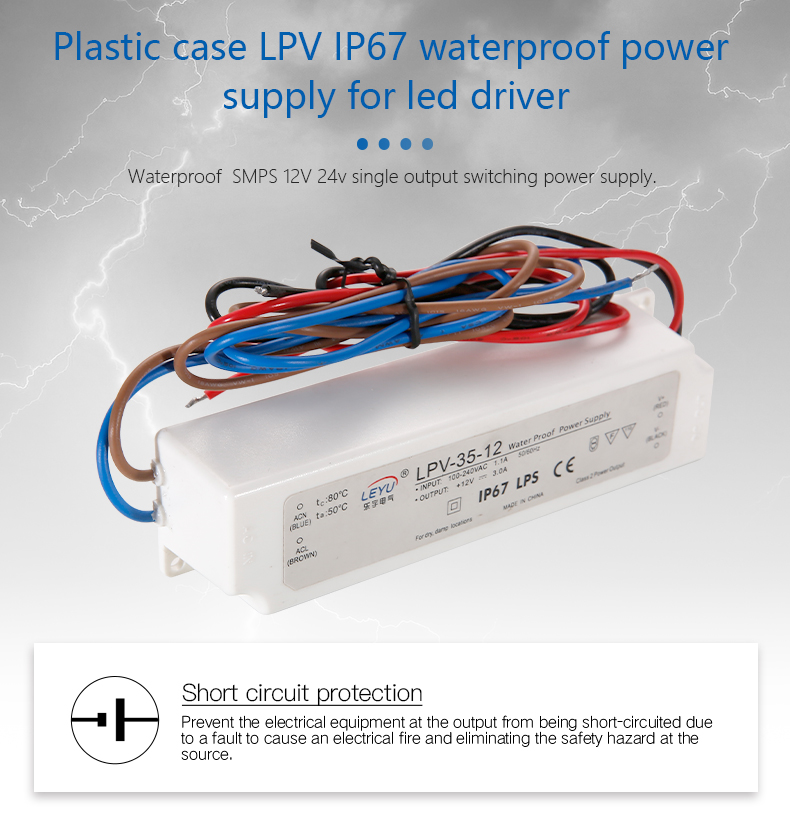

Protections: short circuit/ over load/ over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level
Fully isolated plastic case
Class IIpower unit, no FG
Class 2 power unit
Pass LPS
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high
reliability
2 year warranty
|

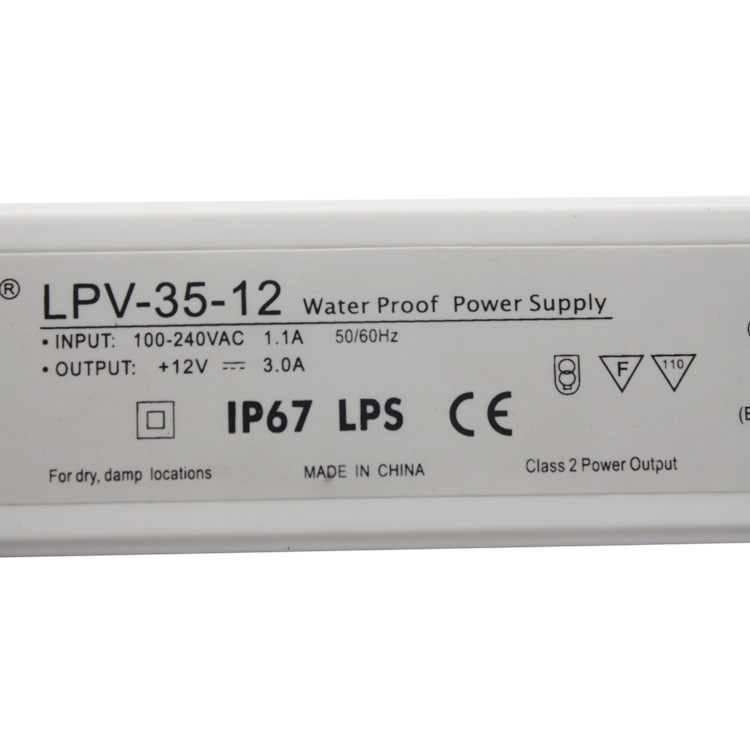

SPECIFICATION |
|
|||||
|
OUTPUT |
|
|||||
|
Model |
LPV-35-5 |
LPV-35-12 |
LPV-35-15 |
LPV-35-24 |
LPV-35-36 |
|
|
DC Voltage |
5V |
12V |
15V |
24V |
36V |
|
|
Rated Current |
5A |
3A |
2.4A |
1.5A |
1A |
|
|
Current Range |
0 ~ 6A |
0 ~ 3A |
0 ~ 2.4A |
0 ~ 1.5A |
0 ~ 1A |
|
|
Rated Power |
30W |
36W |
36W |
36W |
36W |
|
|
Ripple&Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
|
|
Voltage Tolerance |
±6.0% |
±5.0% |
||||
|
Line Regulation |
±1.0% |
|||||
|
Load Regulation |
±4.0% |
±2.0% |
||||
|
Setup,Rise Time |
500ms, 20ms/230VAC500ms, 20ms/115VAC at full load |
|||||
|
Hold Up Time |
50ms/230VAC 16ms/115VAC at full load |
|||||
|
|
|
|||||
|

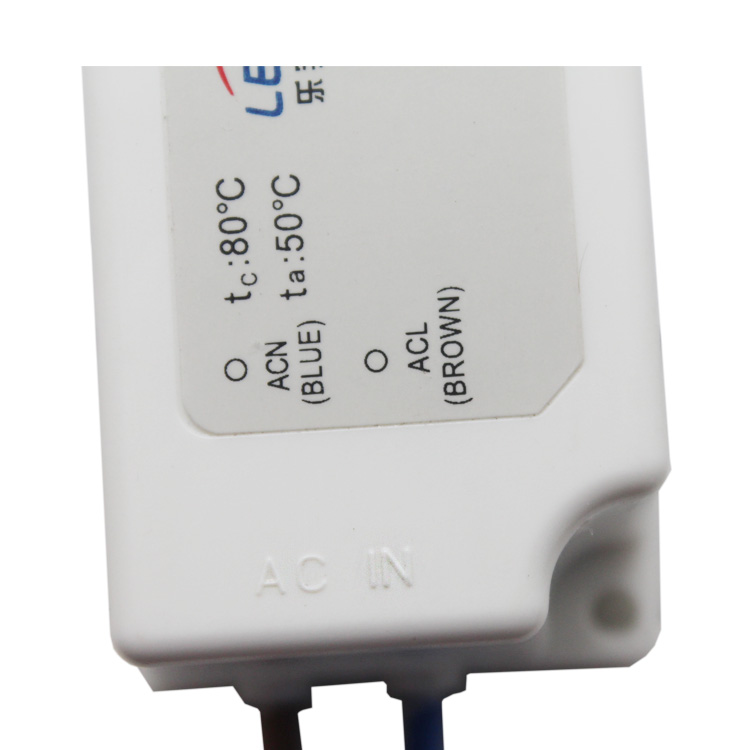

INPUT |
|
|||||
|
Voltage Range |
90 ~ 264VAC 127 ~ 370VDC |
|||||
|
Frequency Range |
47 ~ 63Hz |
|||||
|
Efficiency |
77% |
84% |
84% |
85% |
85% |
|
|
AC Current |
1.1A/115VAC 0.57A/230VAC |
|||||
|
Inrush Current |
Cold Start55A at 230VAC |
|||||
|
Leakage Current |
0.25mA / 240VAC |
|||||
|
|
|
|||||
|
PROTECTION |
|
|||||
|
Over Load |
110 ~ 150% rated output power |
|||||
|
Protectiontype: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over Voltage |
5.75~6.75V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
41.4~48.6V |
|
|
Protection type: Shut down o/p voltage, re-power on to recover |
||||||
|
|
|
|||||
|
ENVIRONMENT |
|
|||||
|
Working Temp. |
-30 ~ +65℃ (Refer to “Derating Curve”) |
|||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
|||||
|
StorageTemp., Humidity |
-40 ~ +80℃, 10 ~ 95% RH |
|||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 45℃) |
|||||
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||
|
|
|
|||||
|
SAFETY &EMC |
|
|||||
|
Safety Standards |
UL1310 class 2,CAN/CSA No.223-M91,CB IEC61347-2-13, IP67 approved, design refer to TUV EN60950-1 |
|||||
|
Withstand Voltage |
I/P-O/P:3KVAC |
|||||
|
Isolation Resistance |
I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH |
|||||
|
EMC Emission |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A,EN61000-3-3 |
|||||
|
EMC Immunity |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, EN55024, light industry level, criteria A |
|||||
|
|
|
|||||
|
OTHERS |
|
|||||
|
Dimension |
148*40*30mm (L*W*H) |
|||||
|
Weight |
0.34Kg |
|||||
|
Packing |
40pcs/14.6Kg/0.63CUFT |
|||||
|
|
|
|||||
|
NOTE |
|
|||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4.Derating may not be needed under low input voltage. Please check the static characteristics for more details. |
||||||
