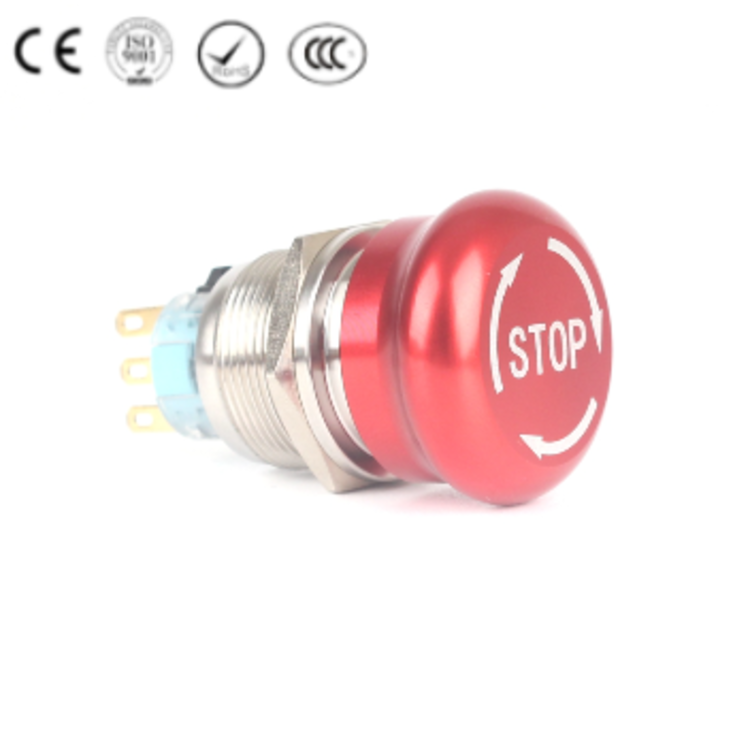

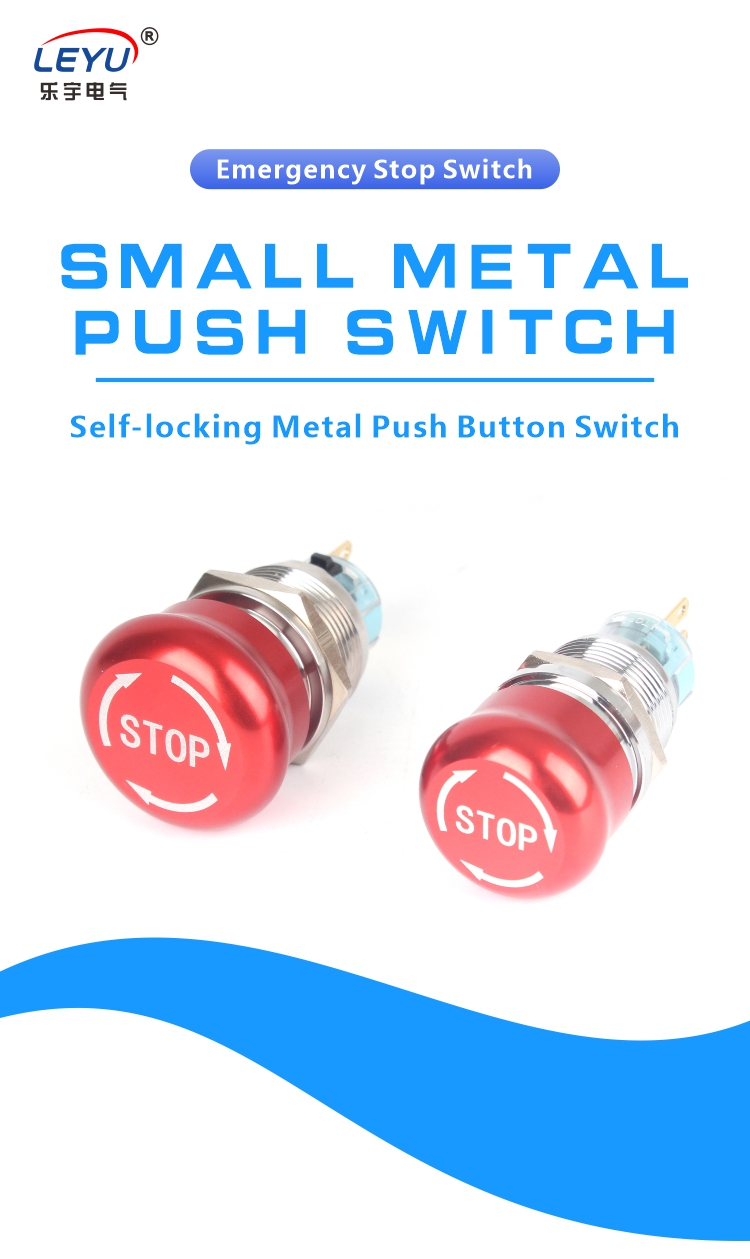

Emergency stop button

Metal head frame with matching metal mounting base, impact-resistant;
Dual screws secure the head to the mounting base, grounded through the panel for enhanced safety and anti-rotation;
Simple modular design facilitates post-installation maintenance, modification, and retrofitting by non-professionals;
Sub-assemblies available for flexible configuration of different functions;
Metal mounting screws for secure fastening to the panel and grounding contact.

Product Detail



Specifications

Product name
Emergency stop switch

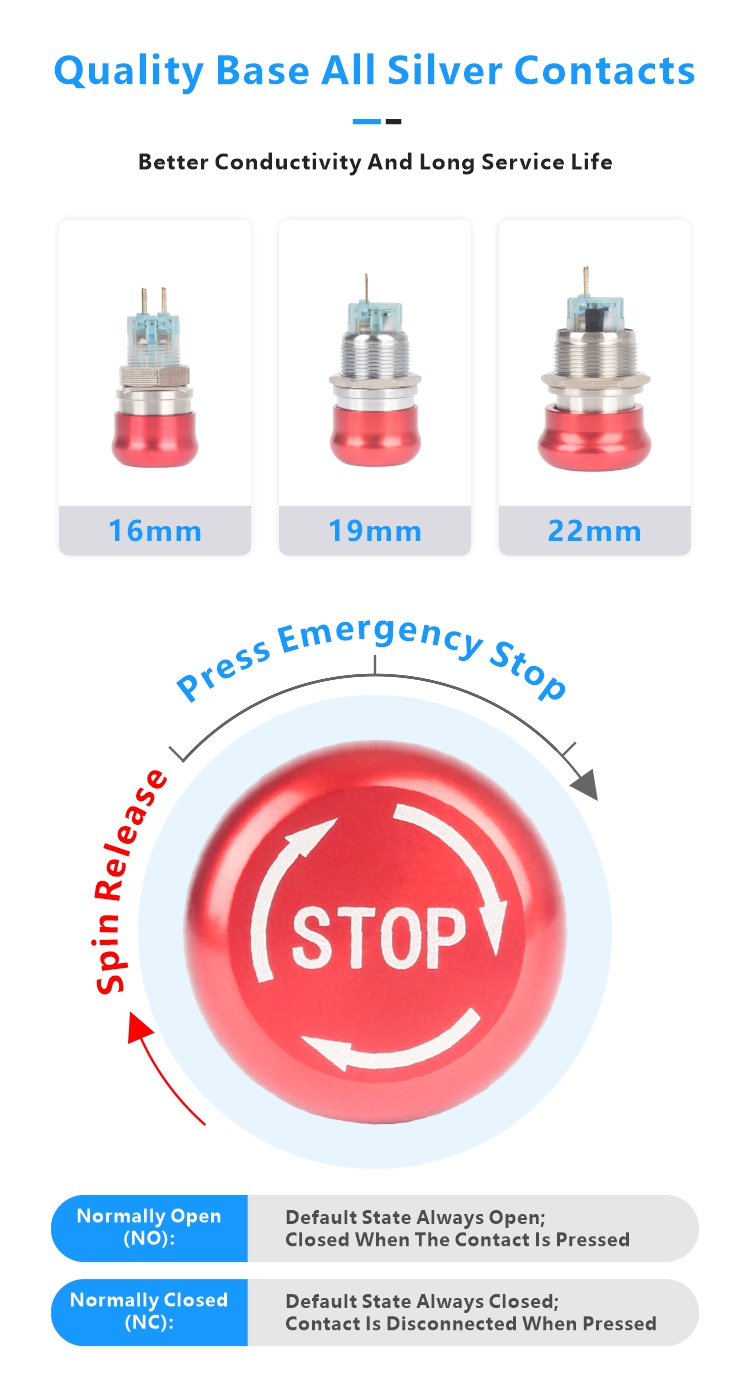

Mode of operation
Rotate/press
Hole size 22mm

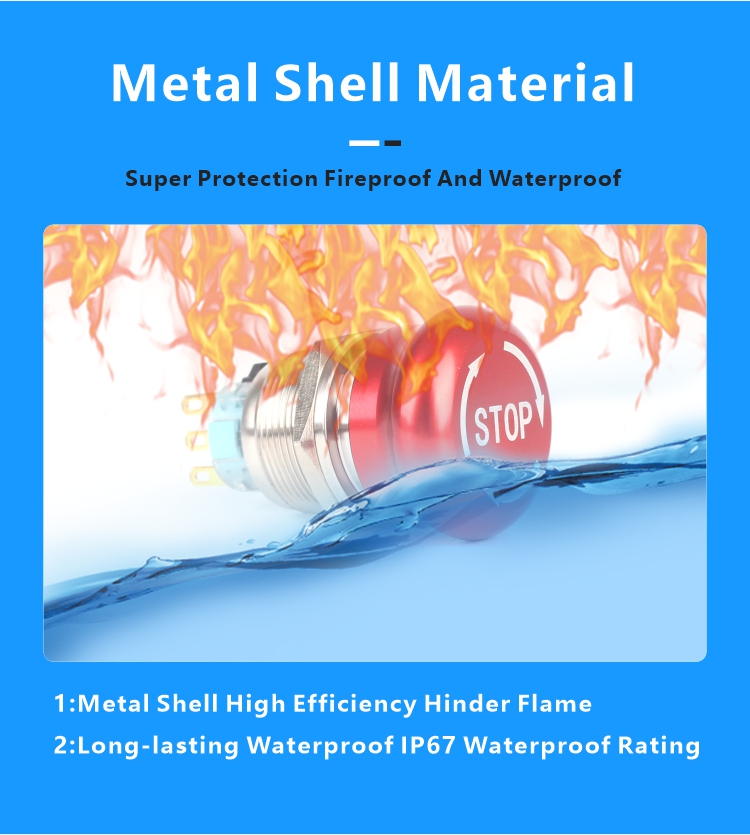

Shell material
Copper plating/stainless steel
Head shape
Mushroom head

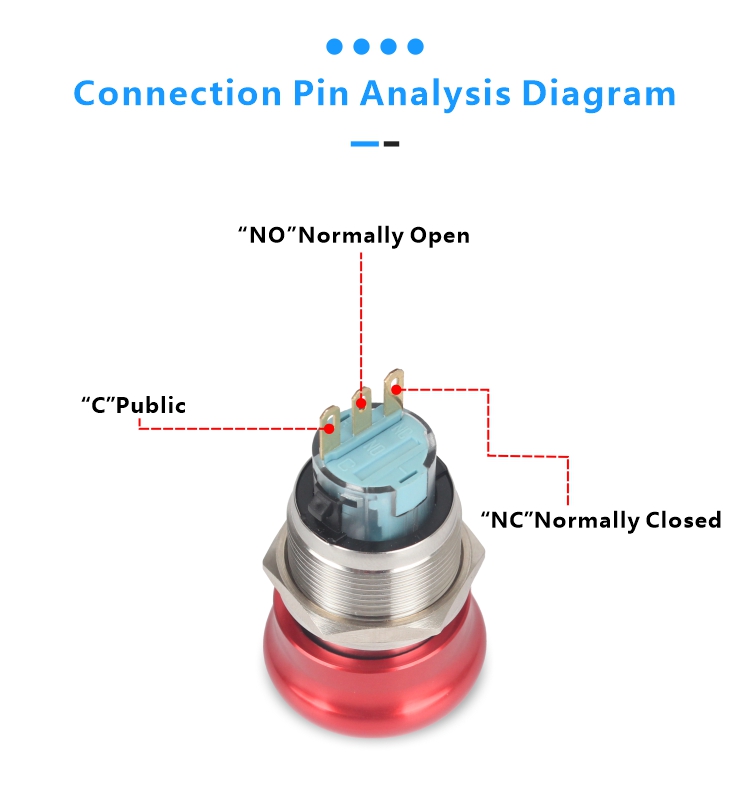

Contact configuration
1NO1NC

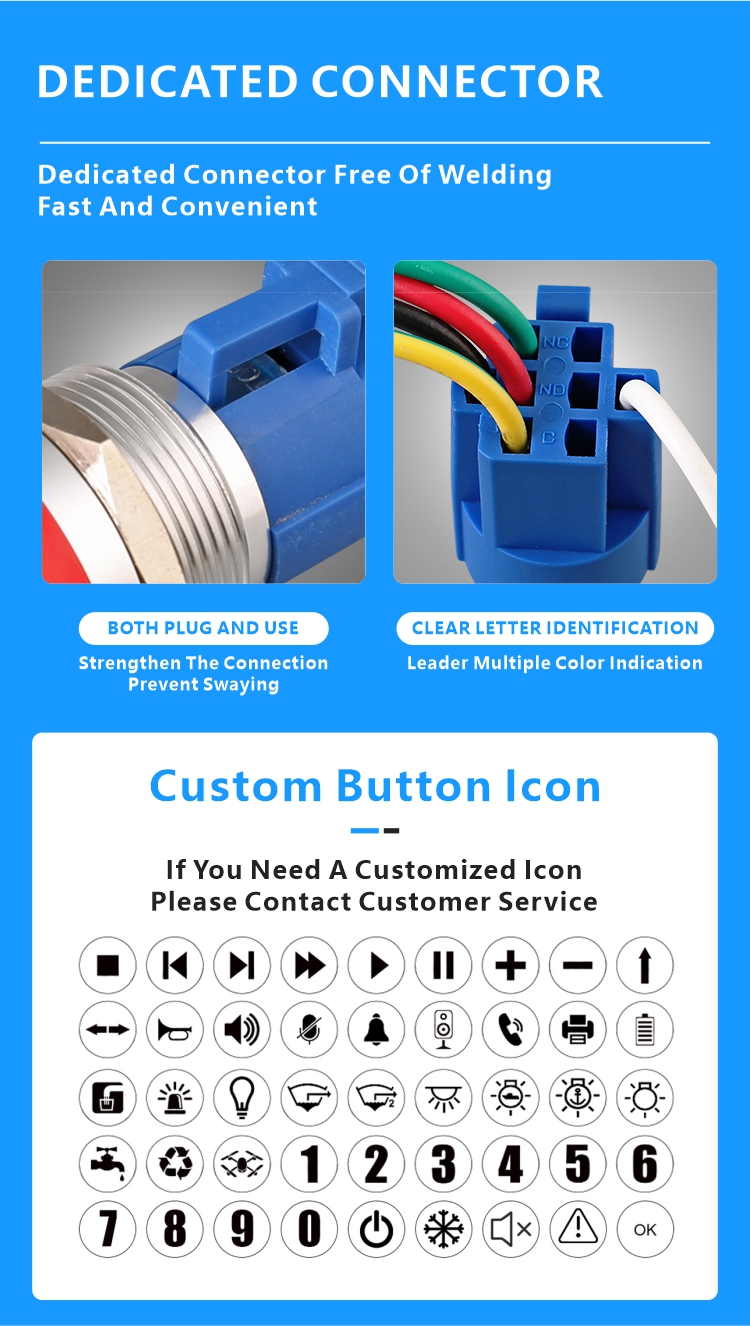

Terminal type
Pin terminal
Electrical life
≥50,000 times
Mechanical life
≥1,000,000 times
Contact Resistance
≤50mΩ
Operation stroke
about 3.1mm
IP Class
IP65,IK09
Symbol
With Arrow, "STOP" text
