LRS-35 35W Enclosed Switching Power Supply
Compact AC-DC switching power supply with 5V, 12V, 15V, 24V, 36V and 48V output options for industrial automation, LED lighting, electronic equipment and control systems.
35W
Rated Output Power
85–264VAC
Universal AC Input
5–48VDC
Multiple Output Options
Fanless
Free Air Convection
-30°C to +70°C
Operating Temperature
Product Detail
LRS-35 is a compact 35W enclosed AC-DC switching power supply designed for industrial automation, LED lighting, electronic equipment and control systems. It supports a universal input range of 85–264VAC and provides multiple DC output options from 5V to 48V. The fanless design uses free air convection for cooling, while built-in short-circuit, overload and over-voltage protection helps improve operating reliability. The LRS-35 series operates from -30°C to +70°C and is available in multiple output models for different low-power DC applications.

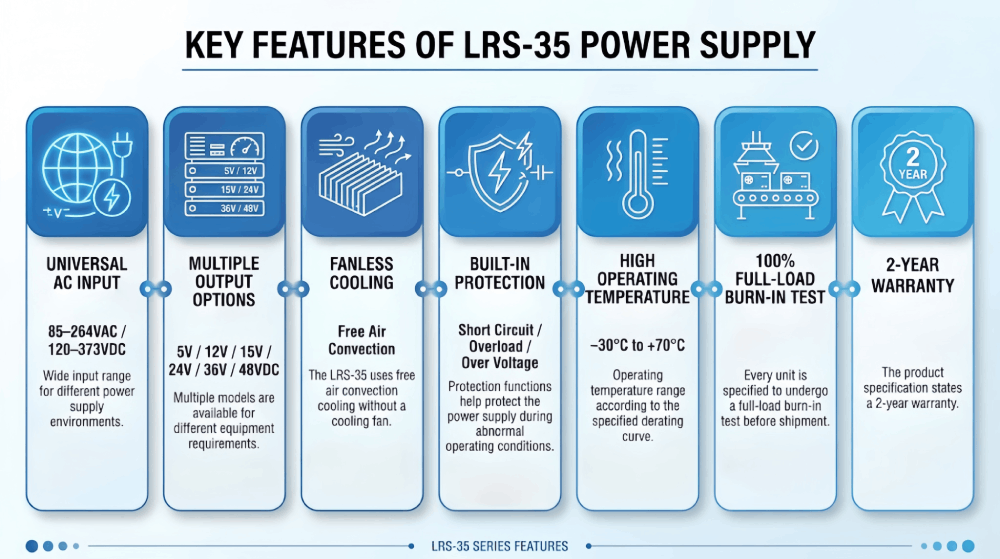

Key Features
|
Model |
Output Voltage |
Rated Current |
Rated Power |
| LRS-35-5 | 5V DC | 7A | 35W |
| LRS-35-12 | 12V DC | 3A | 36W |
| LRS-35-15 | 15V DC | 2.4A | 36W |
| LRS-35-24 | 24V DC | 1.5A | 36W |
| LRS-35-36 | 36V DC | 1A | 36W |
| LRS-35-48 | 48V DC | 0.8A | 38.4W |
Model Selection
- Choose the output voltage according to your equipment requirements and required DC load current.
- Need help choosing the right model?
- Tell us your required input voltage, output voltage and load current.
- Request a Quote →
|
SPECIFICATION |
|
|||||
|
OUTPUT |
|
|||||
|
Model |
LRS-35-5 |
LRS-35-12 |
LRS-35-15 |
LRS-35-24 |
LRS-35-36 |
LRS-35-48 |
|
DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
|
Rated Current |
7A |
3A |
2.4A |
1.5A |
1A |
0.8A |
|
Current Range |
0~7A |
0~3A |
0~2.4A |
0~1.5A |
0~1A |
0~0.8A |
|
Rated Power |
35W |
36W |
36W |
36W |
36W |
38.4W |
|
Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
200mVp-p |
200mVp-p |
|
Voltage Adj. Range |
4.5 ~ 5.5V |
10.2~ 13.8V |
13.5~18V |
21.6~28.8V |
32.4~39.6V |
43.2~52.8V |
|
Voltage Tolerance |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Setup, Rise Time |
1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load |
|||||
|
Hold Up Time |
30ms/230VAC 12ms/115VAC at full load |
|||||
|
INPUT |
|
|||||
|
Voltage Range |
85 ~ 264VAC 120 ~ 373VDC |
|||||
|
Frequency Range |
47 ~ 63Hz |
|||||
|
Efficiency |
82% |
86% |
86% |
88% |
88% |
89% |
|
AC Current |
0.7A/115VAC 0.42A/230VAC |
|||||
|
Inrush Current |
Cold start 45A/230VAC |
|||||
|
Leakage Current |
<0.75mA / 240VAC |
|||||
|
PROTECTION |
|
|||||
|
Over Load |
110 ~ 150% rated output power |
|||||
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
Over Voltage |
5.75~6.9V |
13.8 ~ 16.2V |
18.75~21.75V |
28.8 ~ 33.6V |
41.4~48.6V |
55.2~ 64.8V |
|
Protection type: shut down o/p voltage, re-power on to recover |
||||||
|
ENVIRONMENT |
|
|||||
|
Working Temp. |
-30 ~ +70℃ (Refer to “derating curve”) |
|||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
|||||
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
|||||
|
Vibration |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
|||||
|
SAFETY & EMC |
|
|||||
|
Safety Standards |
UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved |
|||||
|
Withstand Voltage |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
|||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
|||||
|
EMC Emission |
Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3 |
|||||
|
EMC Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A |
|||||
|
OTHERS |
|
|||||
|

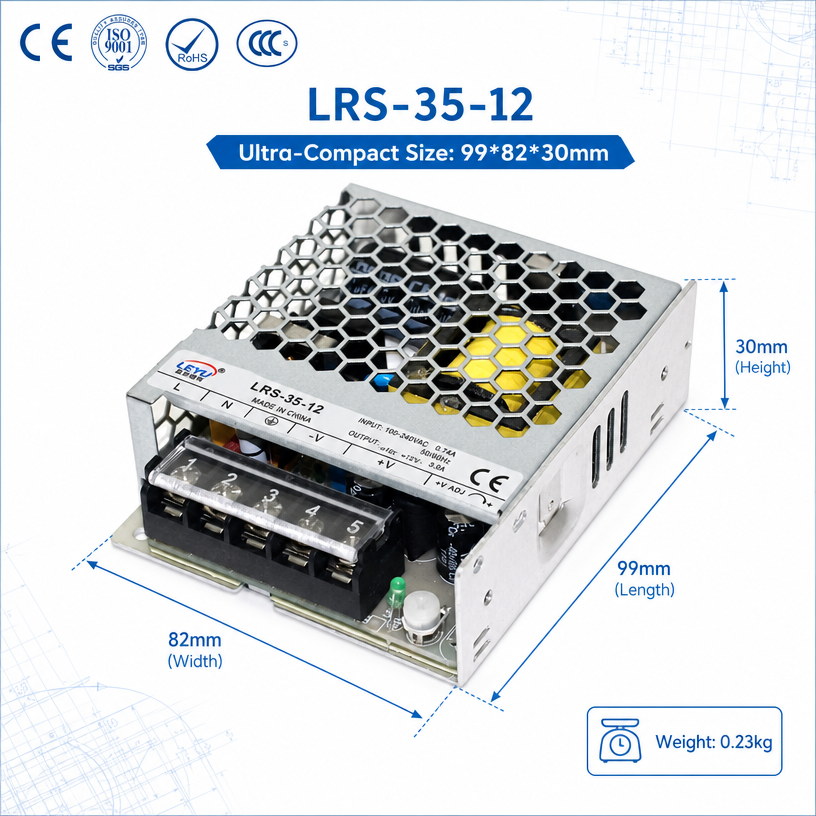

Dimension |
99*82*30mm (L*W*H) |
|||||
|
Weight |
0.23Kg |
|||||
|
Packing |
60pcs/carton/14.8kg/0.88CUFT |
|||||
|
NOTE |
|
|||||
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time. |
||||||
Built-in Protection
1. Short Circuit Protection
Protects the power supply during output short-circuit conditions.2.Overload Protection
110–150% rated output powerProtection operates in hiccup mode and automatically recovers after the fault condition is removed.
3.Over-Voltage Protection
Output over-voltage protection is provided for the different output models.Reliability Features
- 100% Full-Load Burn-In Test
- -30°C to +70°C Operating Temperature
- 2-Year Warranty
- Free Air Convection Cooling
Industrial Automation
- Power supply for industrial controllers, control systems and automation equipment.
LED Lighting
- Suitable for low-voltage LED lighting and related electronic equipment.
Electronic Equipment
- For electronic devices requiring regulated DC power.
Control Systems
- Suitable for control panels and low-power control applications.
Monitoring & Security Equipment
- Can be considered for equipment requiring a compact enclosed AC-DC power supply.
- The compact metal enclosure helps simplify installation in space-constrained equipment and control systems.
- 99 × 82 × 30 mm
-
0.23 kg
-
Easy installation
|
Required Output |
Recommended Model |
|
5V / up to 7A |
LRS-35-5 |
|
12V / up to 3A |
LRS-35-12 |
|
15V / up to 2.4A |
LRS-35-15 |
|
24V / up to 1.5A |
LRS-35-24 |
|
36V / up to 1A |
LRS-35-36 |
|
48V / up to 0.8A |
LRS-35-48 |
A1: LRS-35 is a 35W enclosed AC-DC switching power supply for low-power industrial, electronic and control applications.
Q2: What output voltages are available for LRS-35?
A2:LRS-35 is available in 5V, 12V, 15V, 24V, 36V and 48V DC output models.
Q3: What is the input voltage of LRS-35?
A3: The input range is 85–264VAC or 120–373VDC.
Q4: Is LRS-35 fanless?
A4: Yes. LRS-35 uses free air convection cooling.
Q5: What is the maximum output current of LRS-35-24?
A5: The rated current of LRS-35-24 is 1.5A.
Q6: What is the efficiency of LRS-35?
A6: The specified efficiency ranges from 82% to 89%, depending on the output model.
Q7: What protections does LRS-35 have?
A7: LRS-35 provides short-circuit, overload and over-voltage protection.
Q8: What is the operating temperature of LRS-35?
A8: The specified operating temperature range is -30°C to +70°C, referring to the derating curve.
Q9: What is the size of LRS-35?
A9: The dimensions are 99 × 82 × 30 mm.
Q10: Does LRS-35 have a warranty?
A10: The product specification states a 2-year warranty.
