OPIP-3000W

Online Service

Print this Page

Skype Online

E-mail Us

QQ

Facebook

wangwang

Wechat

Online Inquiry

Product Detail

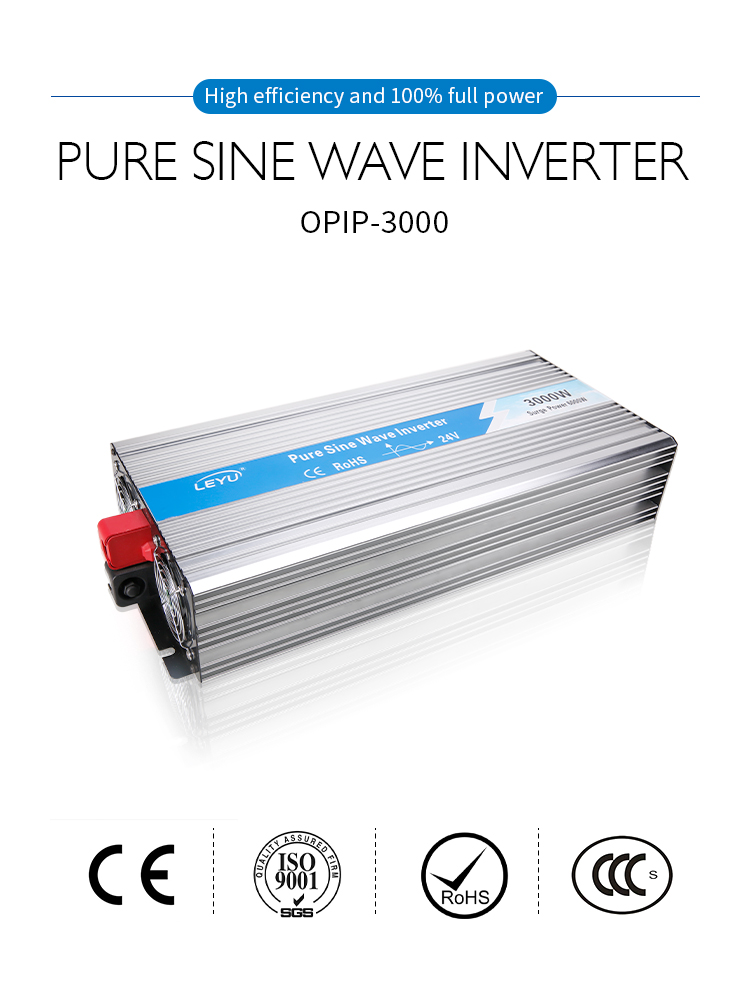

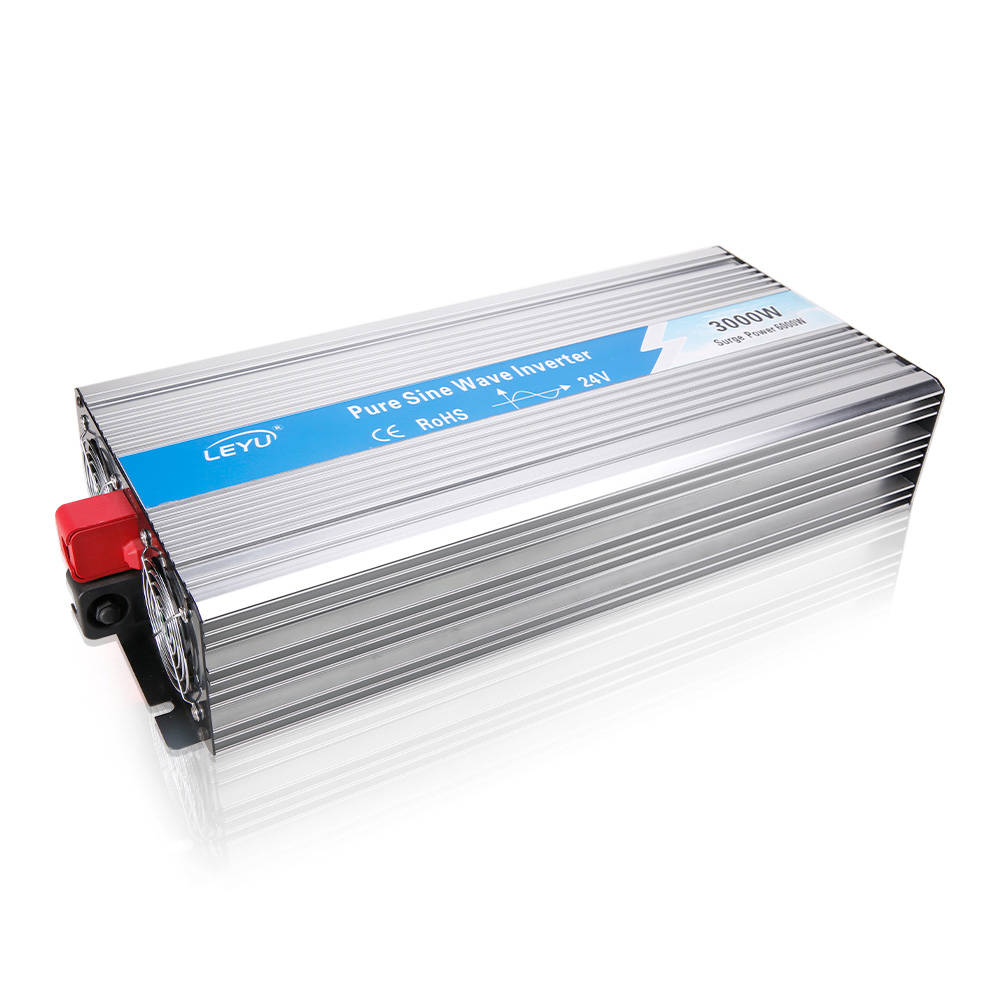

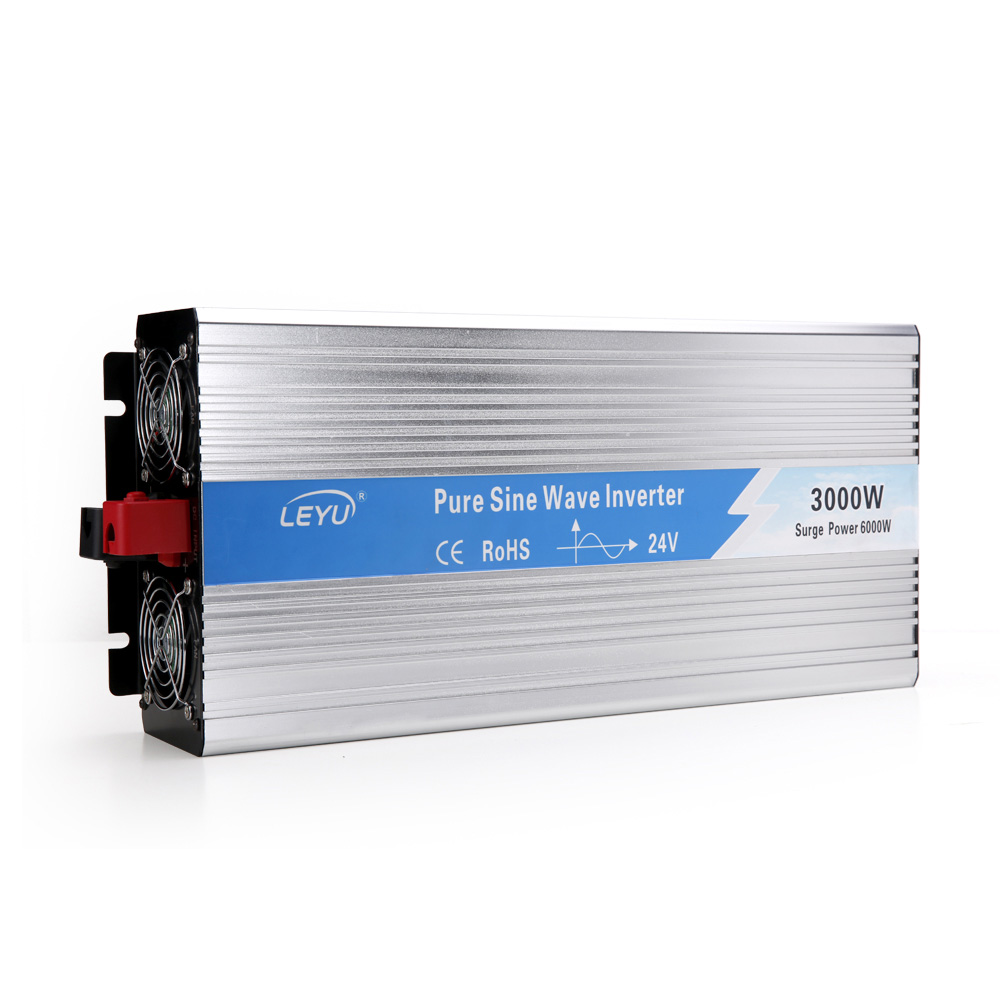

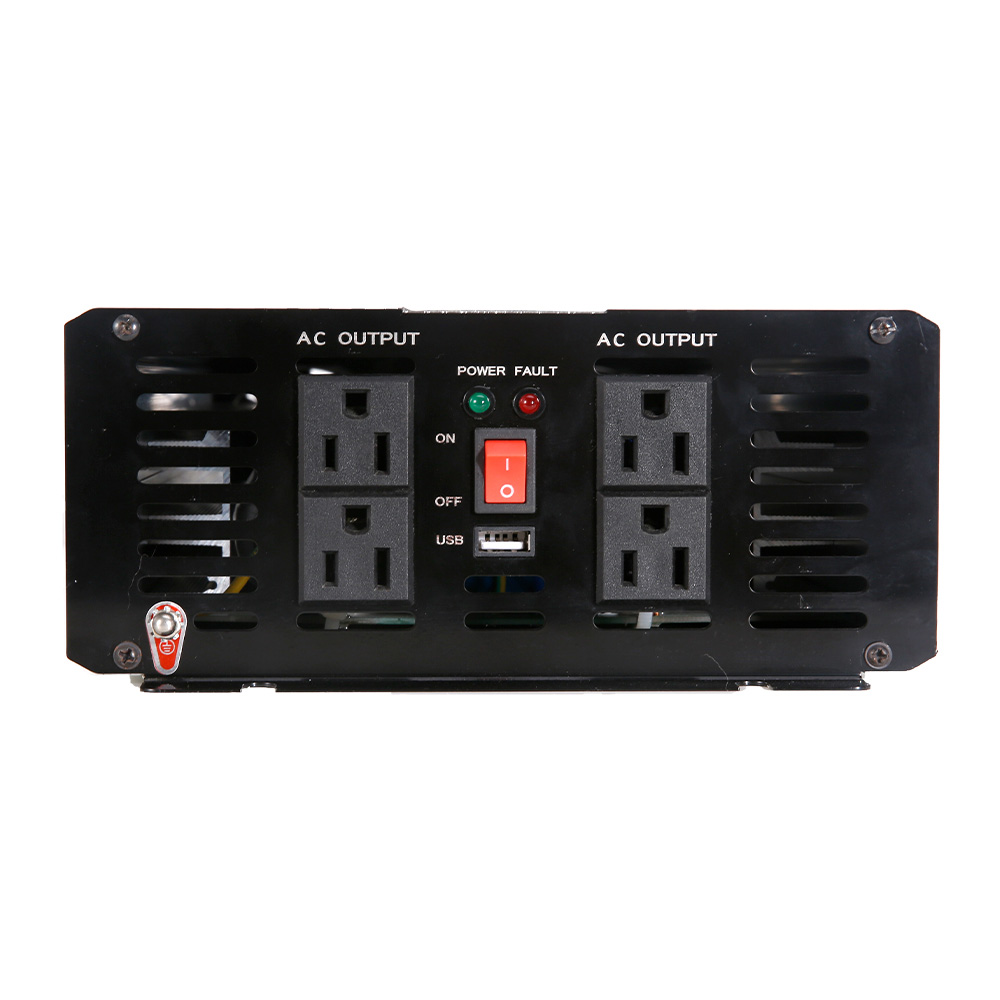

3000W pure sine wave inverter
Product Features :
High transform efficiency 、fast start；
Pure sine wave output waveform；
Softstart function；
Strong adaptability and stability ；
With automatic over-current and output short circuit protection to avoid damage the equipment；

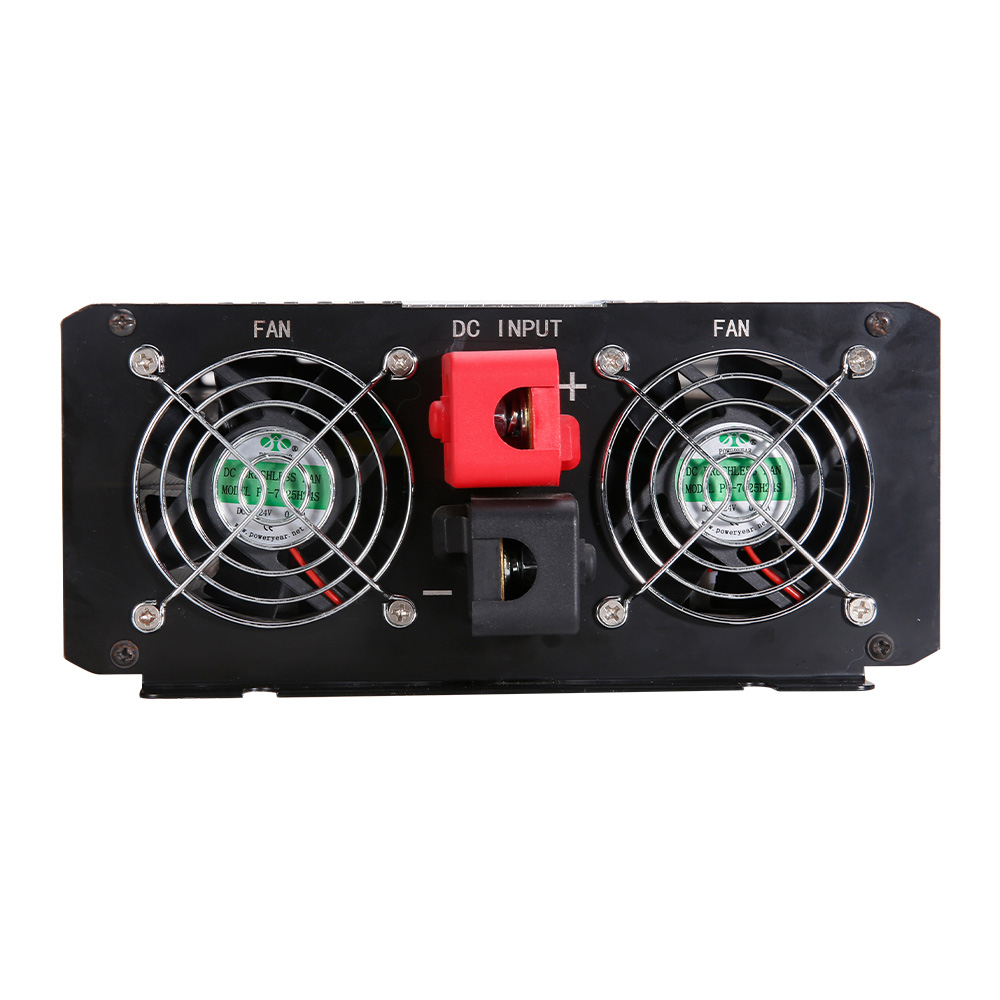

Temperature controlled fan,safe&efficient；
Safe and reliable with built in fuse.
18 months warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc；

output voltage such as 120v, 130v, 200V,240v, etc；Many kinds of sockets are available).

Model	OPIP-3K-1	OPIP-3K-1	OPIP-3K-1	OPIP-3K-2	OPIP-3K-2	OPIP-3K-2
Rated power	3000W
Peak power	6000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	1.3A	0.8A	0.6A	1.3A	0.8A	0.6A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V

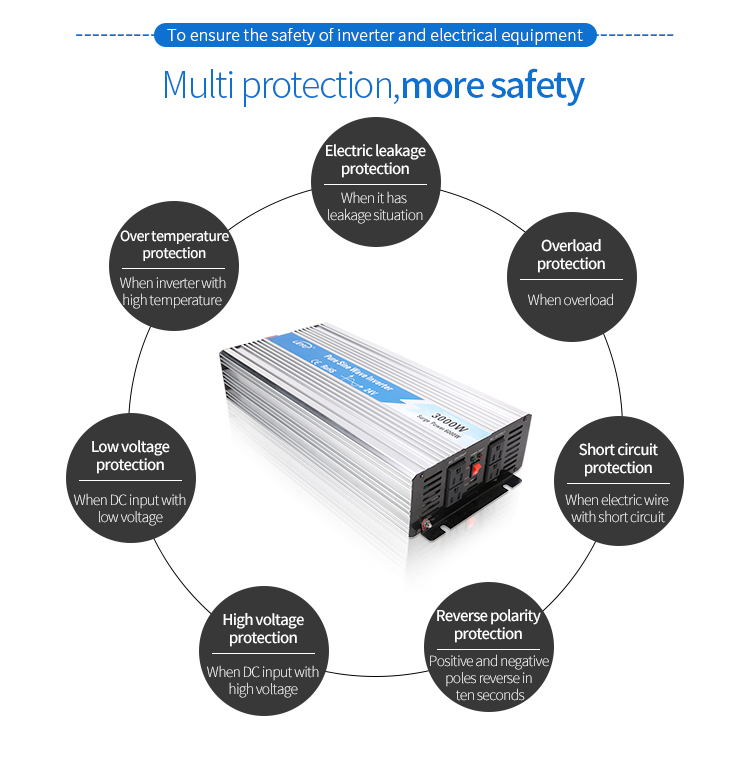

Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	495x215x95mm
Packing(mm)	515x262x120mm
Net./gross weight(g)	6620/7180g
QTY/Ctn	2 Pcs
Meas./Ctn(mm)	540x278x230mm
Gross weight/Ctn(g)	15200g
Warranty	18 months
Configuration	Standard
Cooling method	Intelligent air cooling
