Model：
|
15A
|
20A
|
30A
|
40A
|
50A
|
|

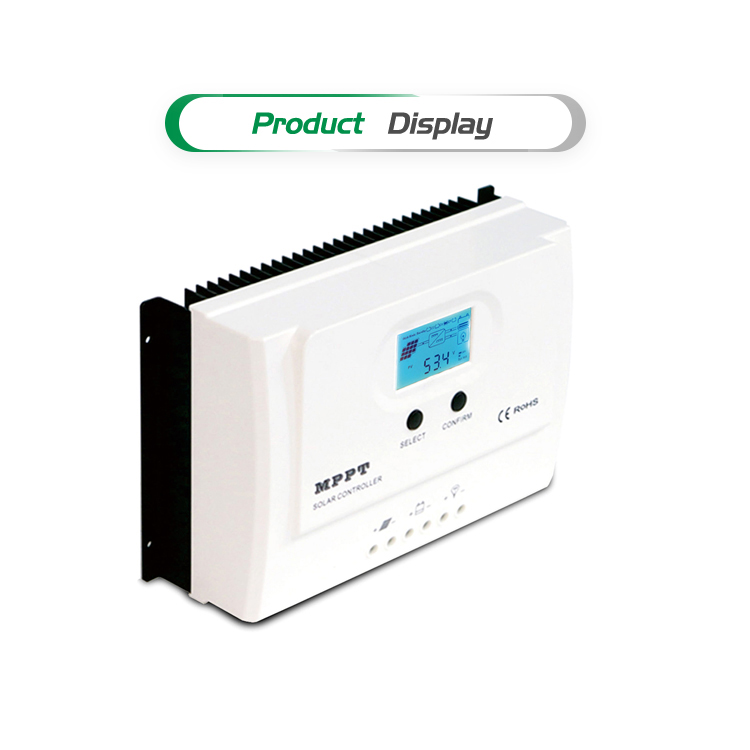

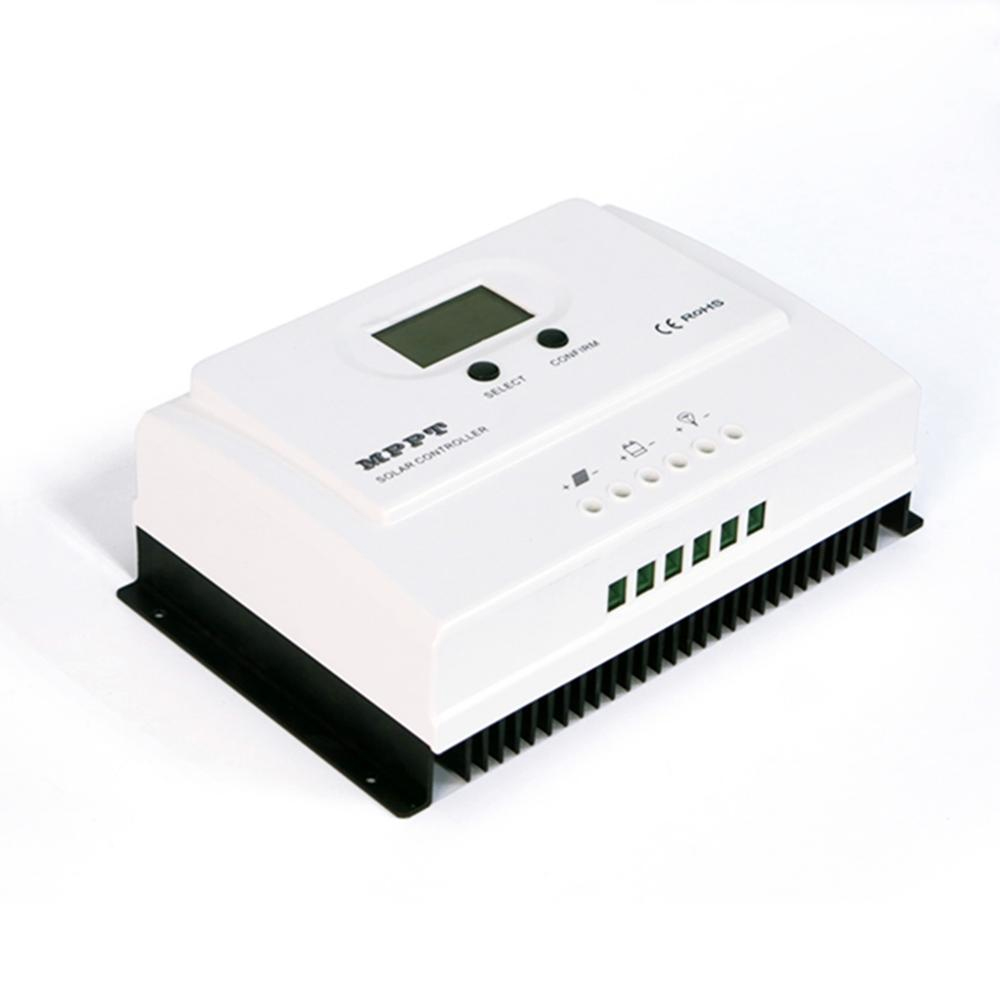

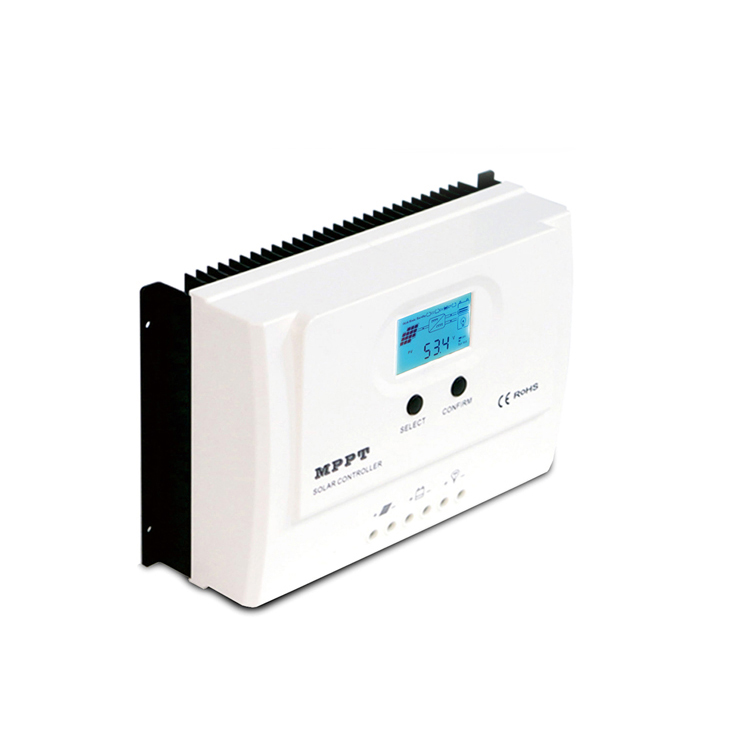

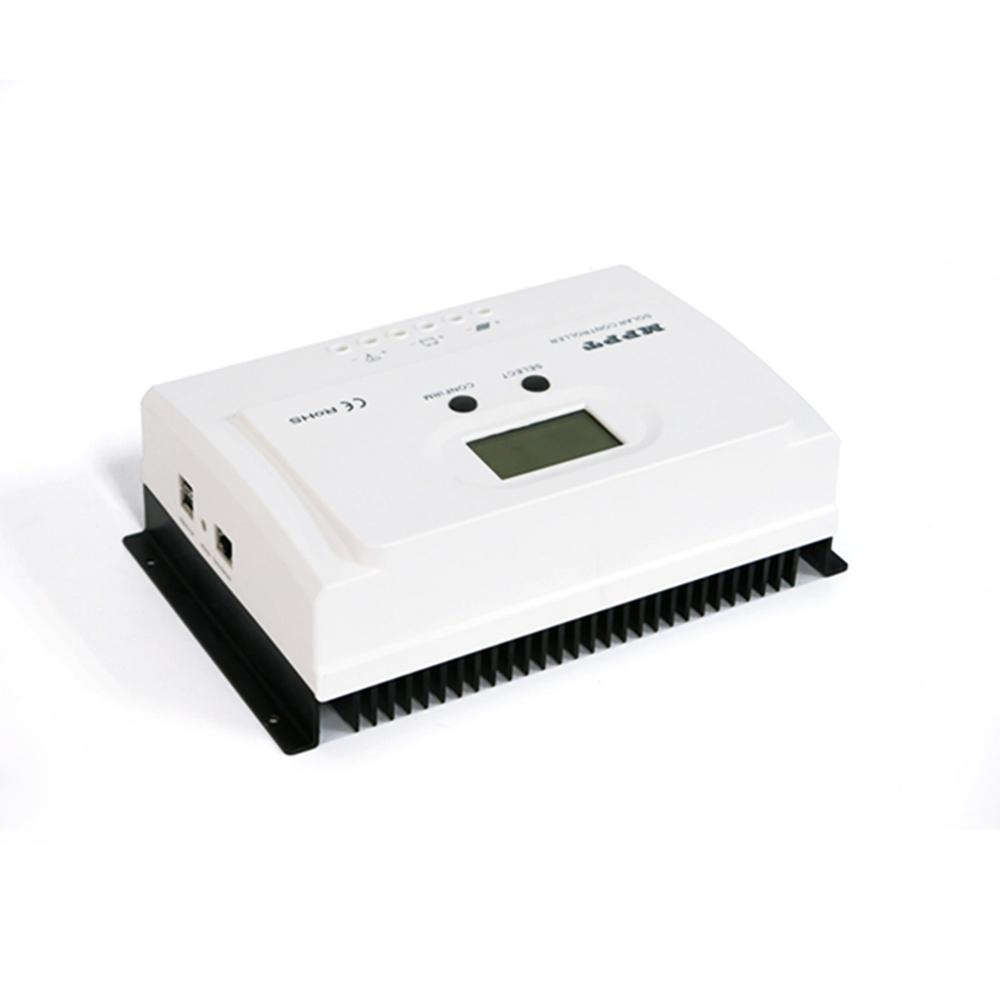

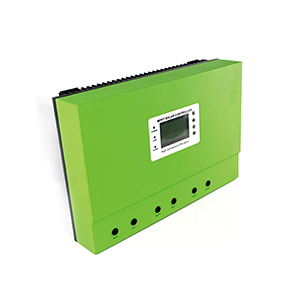

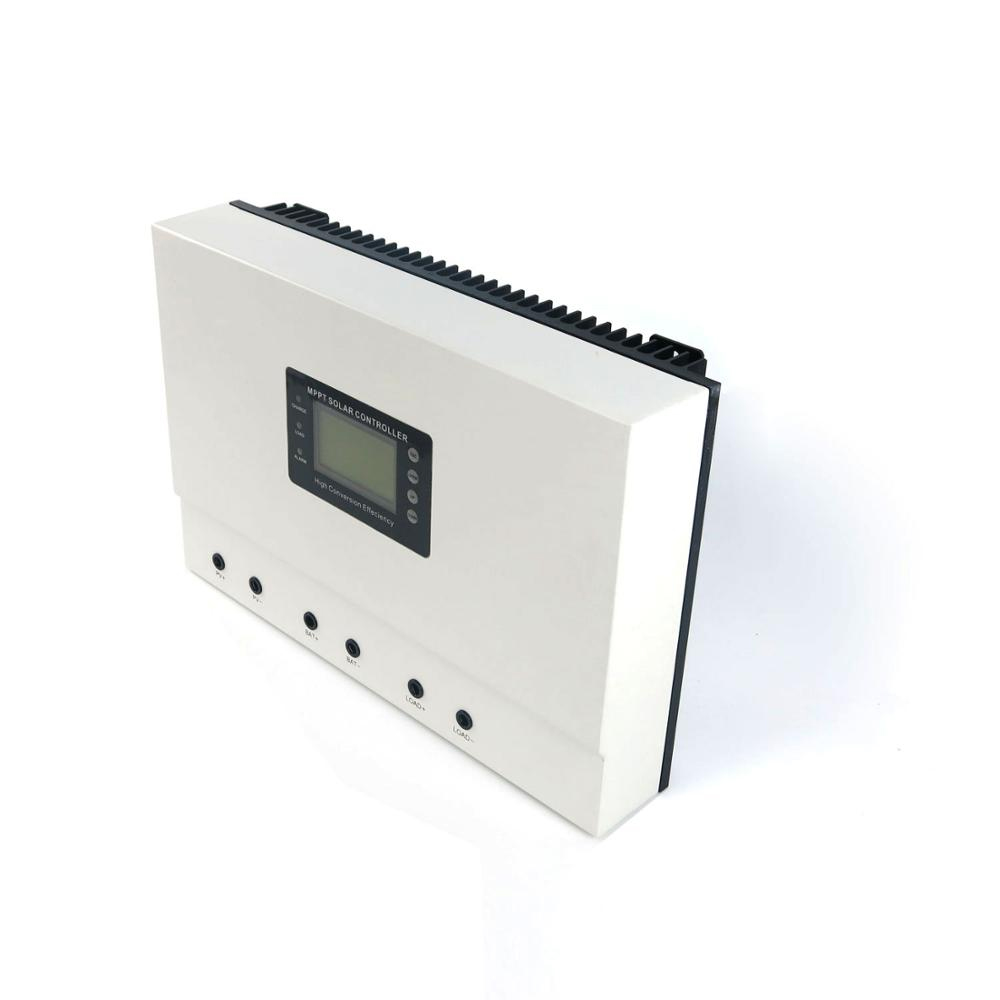

OPL MPPT-12V/24V-Series
|
|
Charge mode
|
MPPT(maximum power point tracking)
|
|
MPPT efficiency
|
≥99.5%
|
|
System type
|
DC12V/24V system
|
Automatic Recognition
|
|
INPUT CHARACTERISTICS
|
|
PV Max PV input voltage（VOC）
|
12V/24V system
|
DC100V
|
DC150V
|
|
Start the charging voltage point
|
12V system
|
18V
|
|
24V system
|
32V
|
|
High input voltage protection point
|
12V/24V system
|
DC100V
|
DC150V
|
|
High input voltage recovery point
|
12V/24V system
|
DC95V
|
DC145V
|
|
Rated PV power
|
12V system
|
200W
|
260W
|
390W
|
520W
|
650W
|
|
24V system
|
400W
|
520W
|
780W
|
1040W
|
1300W
|
|
CHARGE CHRECTRESTICS
|
|
Selectable Battery Types
|
12V/24V system
|
Sealed lead-acid batteries, Vented batteries Gel, NiCd battery
|
|
(Other types of the batteries also can be defined)
|
|
Charge method
|
12V/24V system
|
Three stages charge: constant current(MPPT),constant voltage, floating charge
|
|
Charge rated current
|
12V/24V system
|
15A
|
20A
|
30A
|
40A
|
50A
|
|
OUTPUT DISCHARGE CHARACTERISTICS
|
|

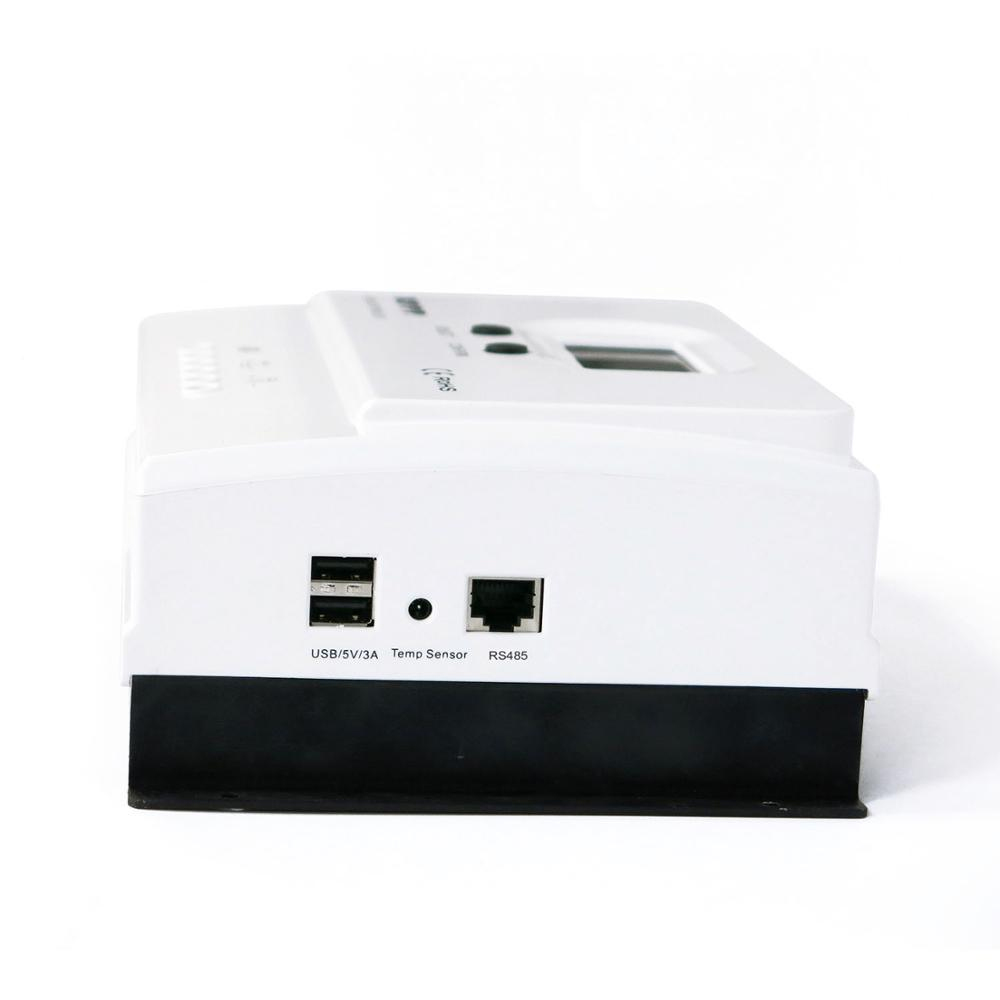

USB (Total for 2 USB output)
|
DC5V 3A
|
|
LOAD output voltage
|
Based on battery voltage
|
|
Max. DC load current
|
30A
|
|
Output control mode
|
ON/OFF mode, PV voltage control mode
|
|
Output control set way
|
Controller button or PC software
|
|
DISPLAY
|
|
LCD Display
|
System type, PV voltage,charge voltage, charging current,charging power, temperature etc.
|
|
PC software
|
RS232
|
|
OTHER PARAMETERS
|
|
Protection function
|
Yes (Over voltage, low voltage, over temperature,over load, Short circuit protection etc.)
|
|
Cooling mode
|
Auto cool
|
|
Type of Mechanical Protection
|
IP 30
|
|
Measurement DxWxH (mm)
|
200*110*66
|
243*155*79
|
|
Packing DxWxH (mm)
|
249*144*105
|
289*189*113
|
|
N.W. (KG)
|
0.9
|
1.8
|
|
G.W. (KG)
|
1.3
|
2.2
|
