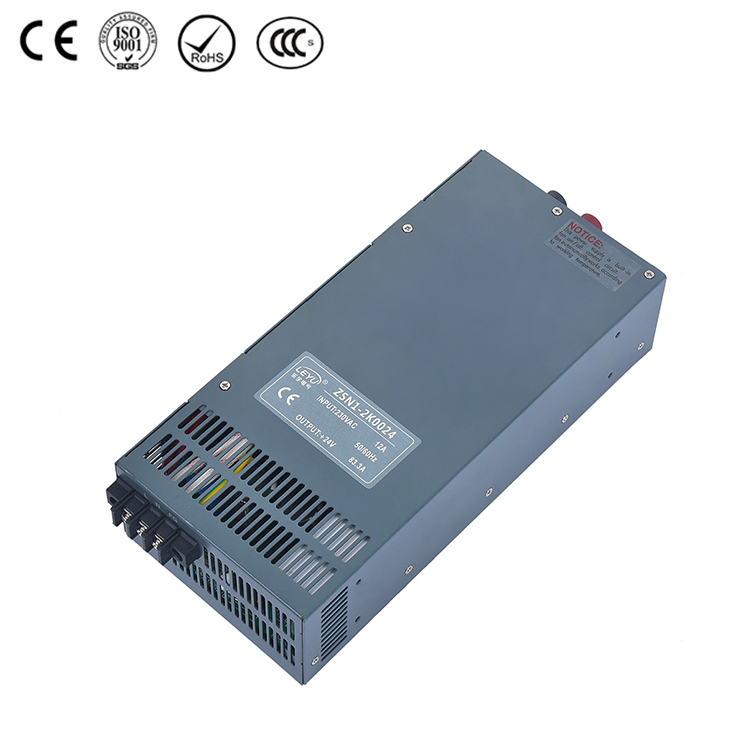

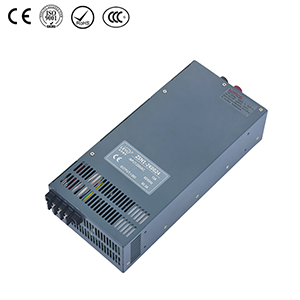

ZSN1-2K0

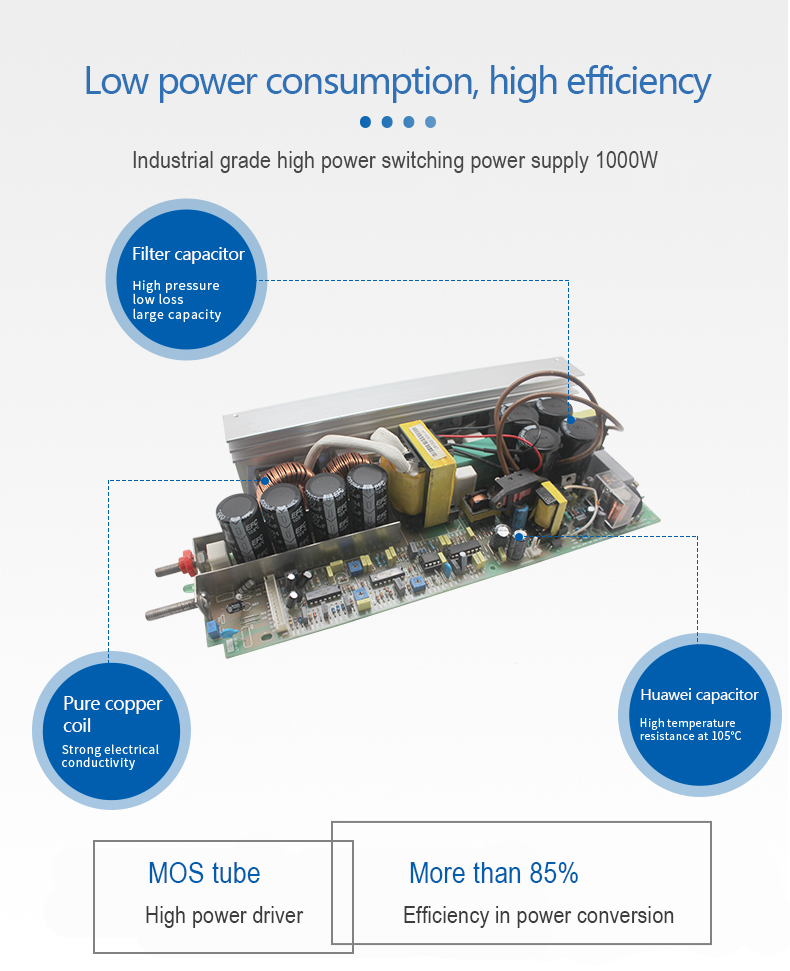

High-power switched-mode power supplies are mainly used in industrial automation control, military equipment, medical instruments, and communication systems. They are characterized by small size, good heat dissipation, and low cost. The device consists of a main circuit, PWM control circuit, microcontroller control circuit, and auxiliary power supply.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
Next

Product Detail

Specifications

Model

ZSN1-2K0-24

ZSN1-2K0-27

ZSN1-2K0-48

OUTPUT
DC Voltage

24V

27V

48V

Rated Current

80A

70A

40A

Current Range

0-80A

0-70A

0-40A

Rated Power

1920W

1890W

1920W

Ripple & Noise
 240mVp-p 240mVp-p 300mVp-p
Voltage Adj. Range

20~26.4V

24~30V

41~56V

Voltage Tolerance
 ±5%
Inlet Stability
 ±1%  ±0.5%
Load Stability
 ±1%  ±0.5%
Setup, Rise, Hold Up Time
 800ms, 50ms, 16ms at full load
INPUT
Voltage Range
 180~264VAC   47～63 Hz
AC Current
 15A/230VAC
Efficiency
 75% 76% 80%
Inrush Current
 30A/115V 60A/230V
Leakage Current
 <3.5mA/240VAC
PROTECTION
Over Load
 105%~135% Type: plusing hiccup shutdown Reset: auto recovery
Over Temp.
 RTH>=80 output shutdown
ENVIRONMENT
Working Temp., Humidity
 -10°C~+60°C(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity
 -20°C~+85°C, 10%~95%RH
Temp. Coefficient
 ±0.03%/°C(0~50°C)
Vibration
 10~500Hz,2G 10min,/1cycle,Period for 60min,Each X.Y.X axes
Dimension
 291*132*68mm(L*W*H)
Weight
 2.5Kg
