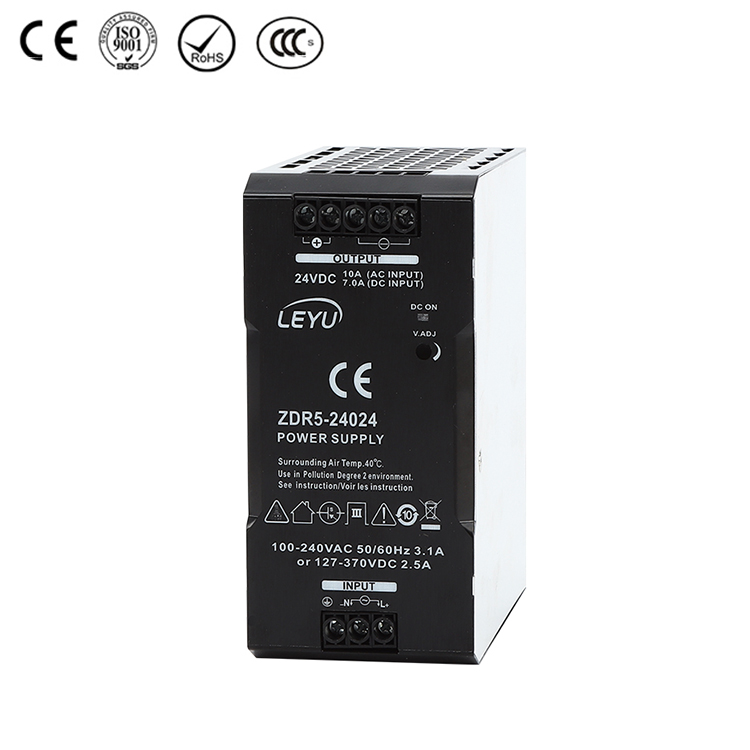

Leyu ZDR5-240 Power Supply

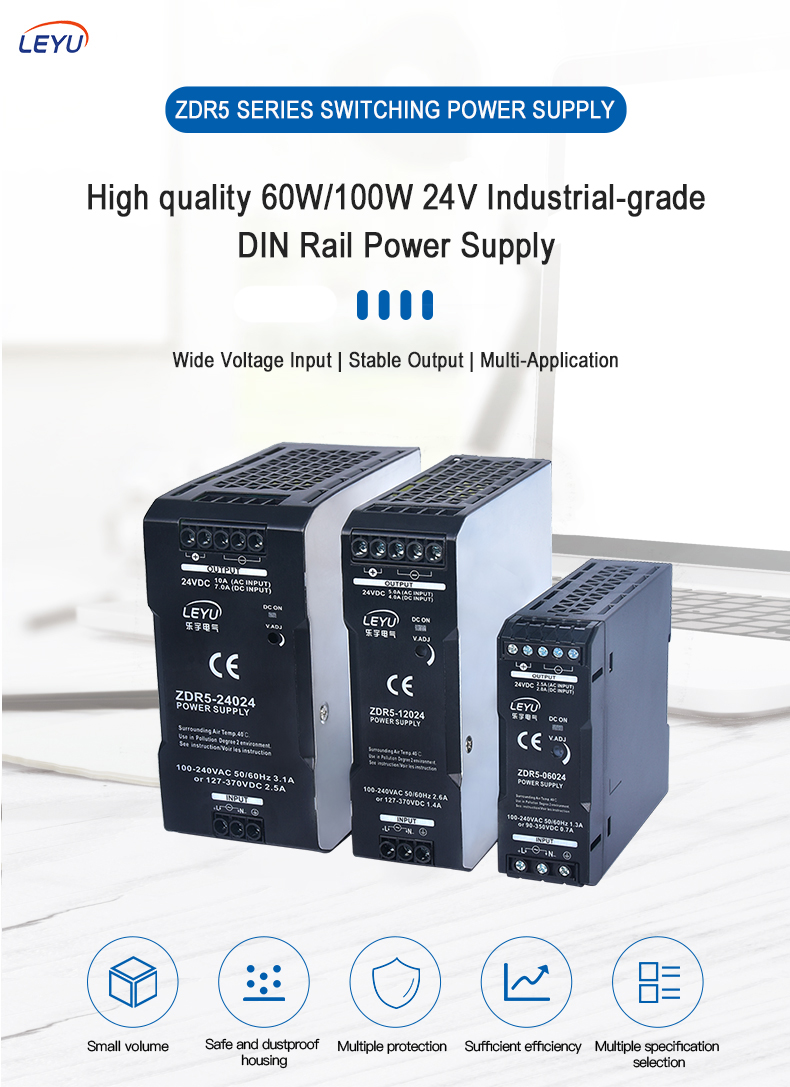

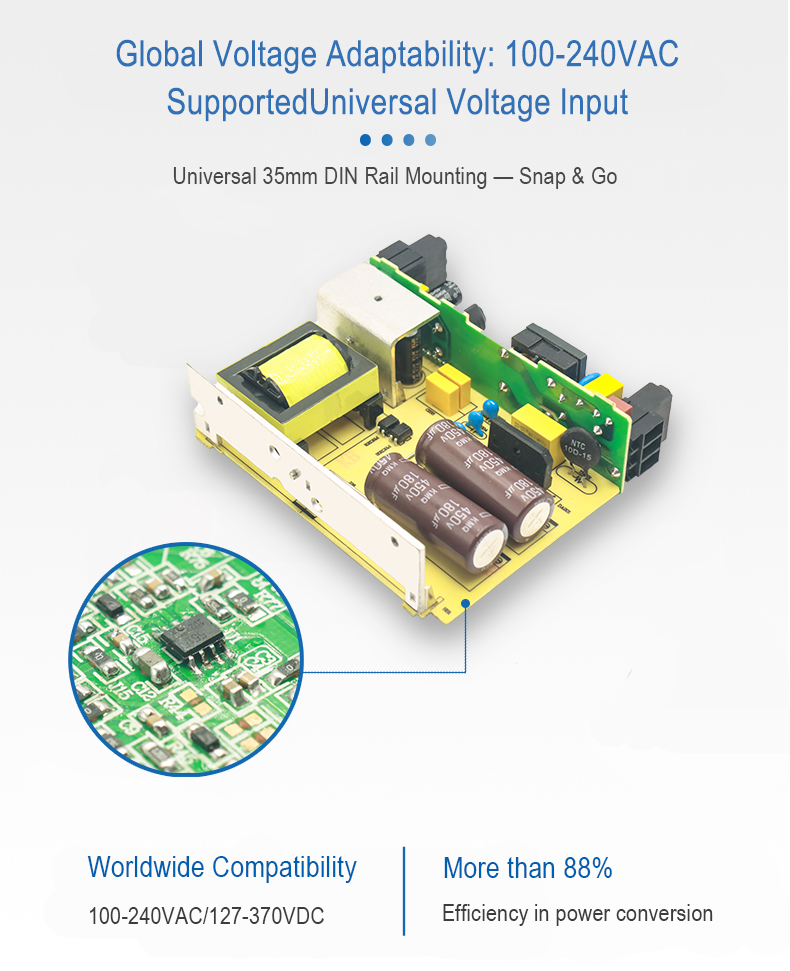

ZDR5 is a DIN Rail power supply series with an economical price and slim design. Like other LEYU’s DIN Rail series, they can be mounted on a TS35 Standard DIN rail.
Online Service
Product Detail
|
Module |
ZDR5-240 |
|
Output DC Voltage |
24V |
|
Output Rated Current |
10A |
|
Output Current Range |
0-10A |
|
Output Rated Power |
240W |
|
Output Ripple & Noise |
150mV |
|
Voltage Adj. Range |
-10% to 15% (with V.ADJ)(guaranteed) |
|
Voltage Tolerance |
±1% |
|
Setup, Rise Time |
1000ms,60ms/230VAC 1800ms,60ms/ 115VAC at full load |
|
Hold Up Time 115 VAC input |
34 ms |
|
Hold Up Time 230 VAC input |
36 ms |
|
Input Voltage Range |
100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC)*6 |
|
Input AC Current |
AC100-220V5.2A DC90-350V2.8A |
|
Efficiency 230 VAC input |
85% |
|
Inrush Current 115 VAC input |
16A |
|
Inrush Current 230 VAC input |
32A |
|
Inrush Current 230 VAC input |
<1mA/240VAC |
|

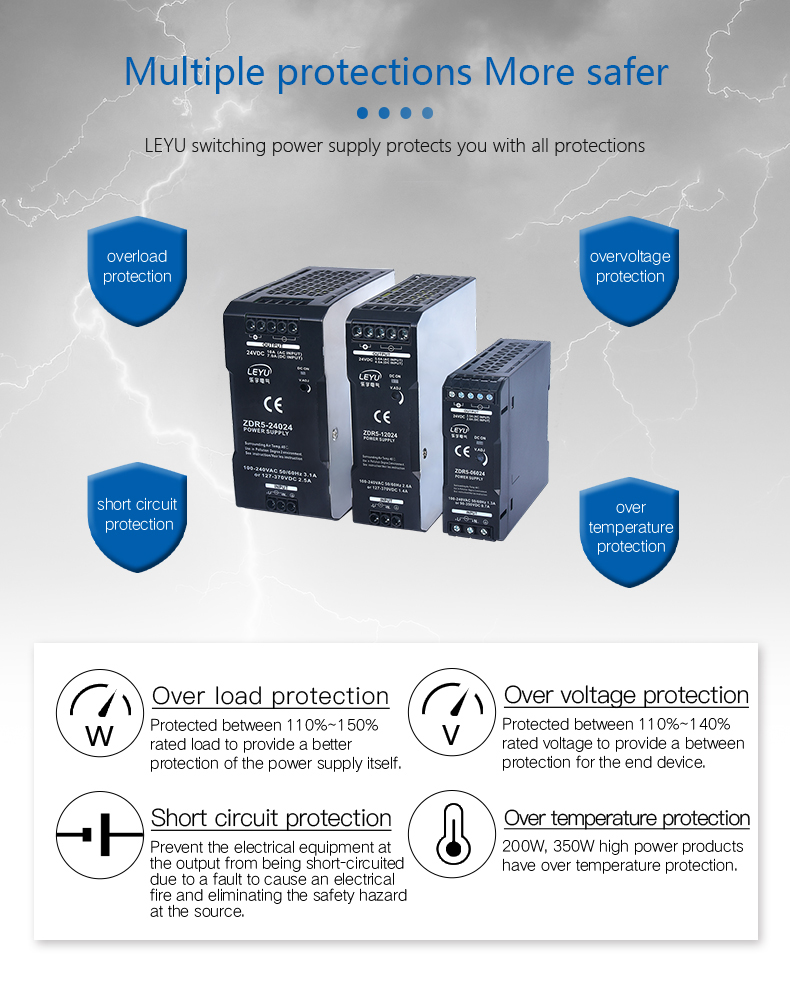

Over Load Protection |
120% to 150% of rated load current |
|
Over Voltage Protection |
YWS*5 |
|
Working Temp., Humidity |
-25 to 60°C (Refer to Engineering Data),20% to 90% (Storage humidity: 10% to 95%) |
|
Storage Temp.,Humidity |
-10 to 60°C |
|
Vibration |
10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions each in X,Y, and Z directions10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W , 120W, 240 W,) for 80 min.each in X,Y, and Z directions |
|
Withstand Voltage |
I/P-O/P: 3KVAC I/P-FG: 2.0KVAC O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
|
Safety Standard |
Design refer to EN62368-1, |
|
EMC Standard |
EN55032,EN55035,EN61000-3-2,EN61000-3-3\ |
|
Dimension |
125×60×126 |
|
Weight |
840G |
NOTE：
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0. 1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
