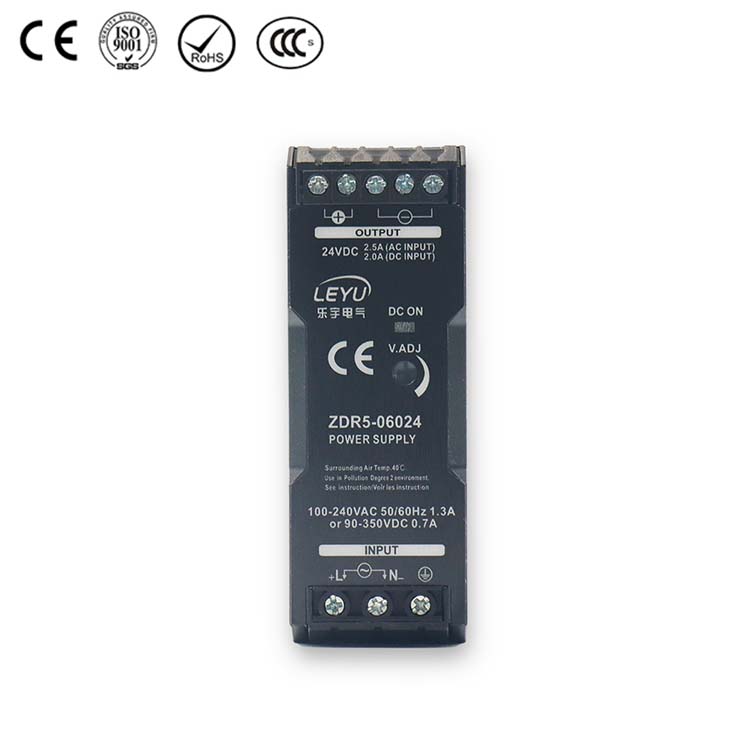

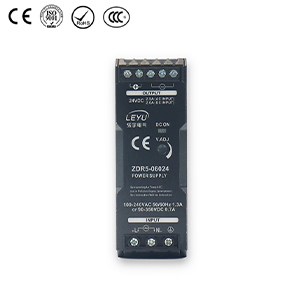

Leyu ZDR5-060 Power Supply

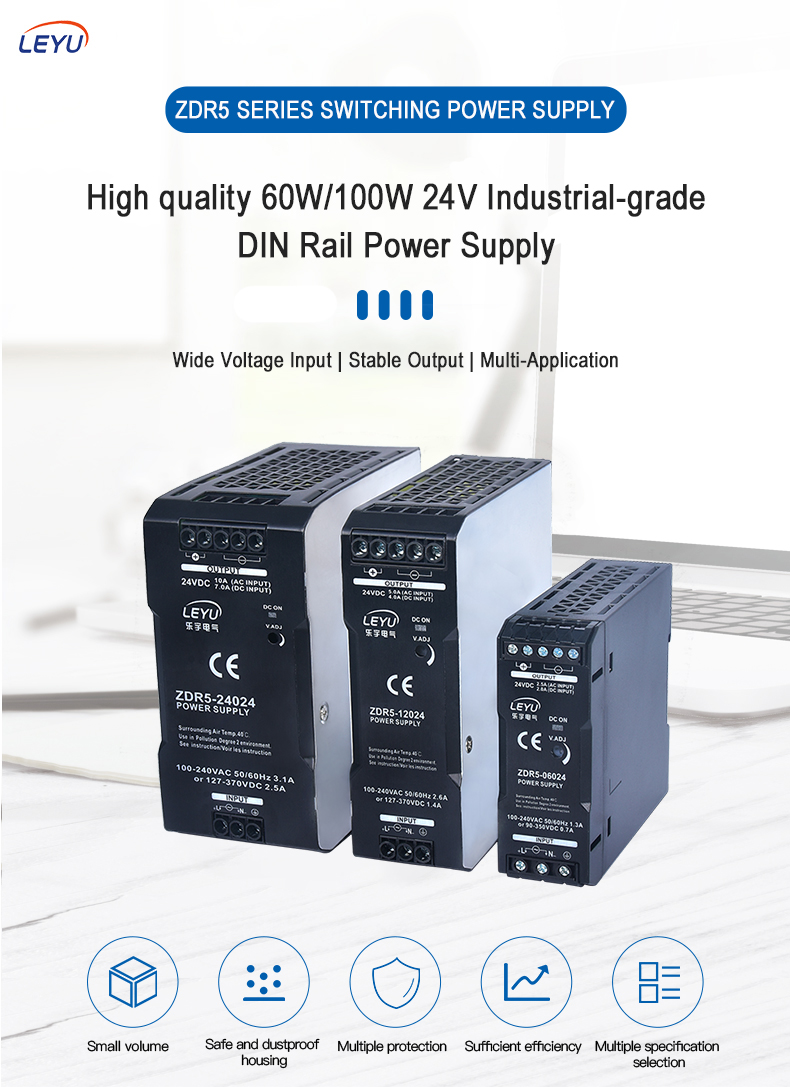

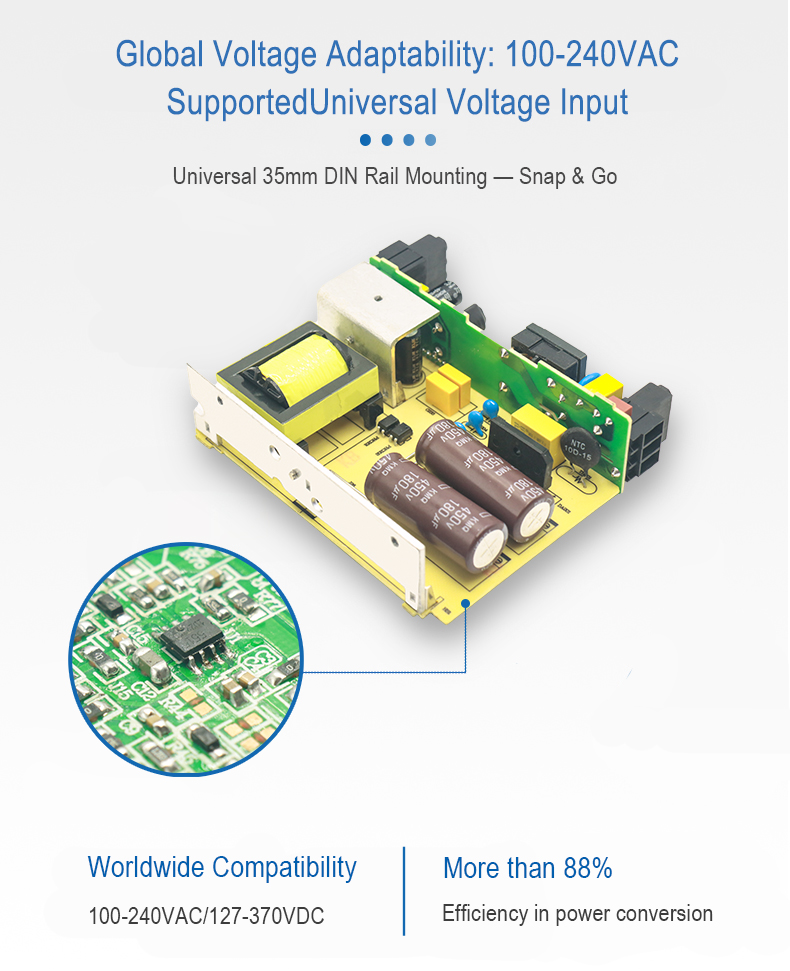

ZDR5 is a DIN Rail power supply series with an economical price and slim design. Like other LEYU’s DIN Rail series, they can be mounted on a TS35 Standard DIN rail.

Online Service

Print this Page

Skype Online

E-mail Us

QQ

Facebook

wangwang

Wechat

Online Inquiry

Product Detail

SPECIFICATIONS

Module	ZDR5-60
Output DC Voltage	24V
Output Rated Current	2.5A
Output Current Range	0-2.5A
Output Rated Power	60W
Output Ripple & Noise	100mV
Voltage Adj. Range	-10% to 15% (with V.ADJ)(guaranteed)
Voltage Tolerance	±1%
Setup, Rise Time	1000ms,60ms/230VAC 1800ms,60ms/ 115VAC at full load
Hold Up Time 115 VAC input	24ms
Hold Up Time 230 VAC input	117ms
Input Voltage Range	100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC)*6
Input AC Current	AC100-220V1.3A DC90-350V0.7A
Efficiency 230 VAC input	86%
Inrush Current 115 VAC input	16A
Inrush Current 230 VAC input	32A
Inrush Current 230 VAC input	<1mA/240VAC

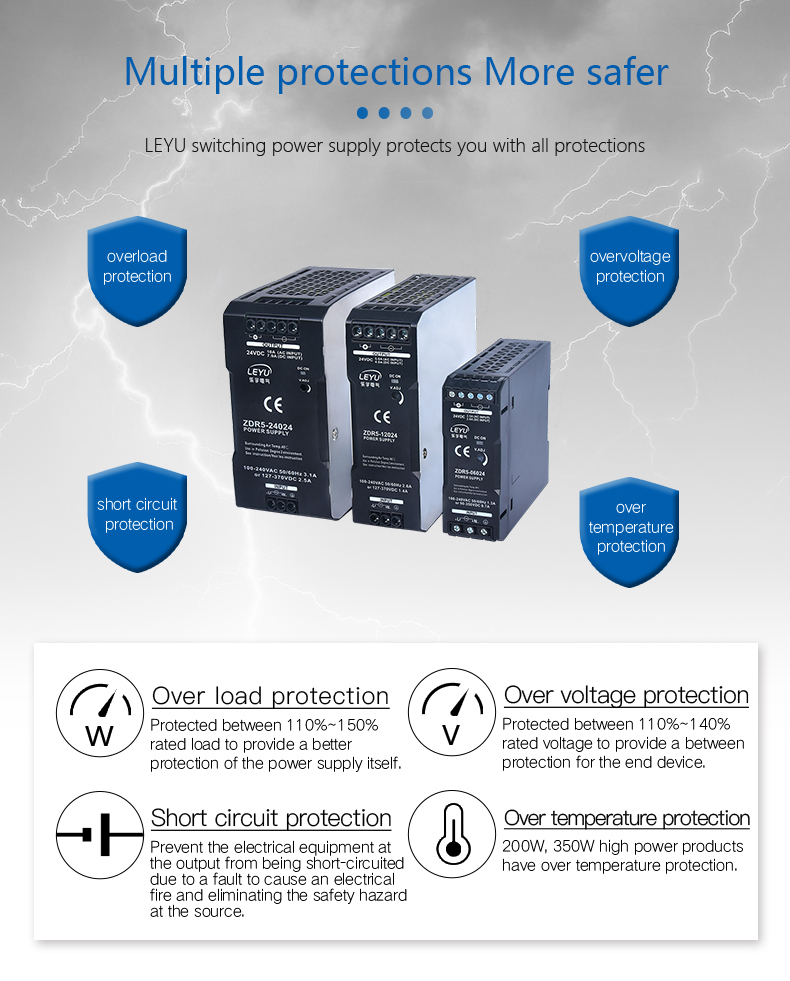

Over Load Protection	120% to 150% of rated load current
Over Voltage Protection	YWS*5
Working Temp., Humidity	-25 to 60°C (Refer to Engineering Data),20% to 90% (Storage humidity: 10% to 95%)
Storage Temp.,Humidity	-10 to 60°C
Vibration	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions each in X,Y, and Z directions10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W , 120W, 240 W,) for 80 min.each in X,Y, and Z directions
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 2.0KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
Safety Standard	Design refer to EN62368-1
EMC Standard	EN55032,EN55035,EN61000-3-2,EN61000-3-3
Dimension	90×32×110
Weight	260g

NOTE：

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0. 1μ & 47μ parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
