Product Detail

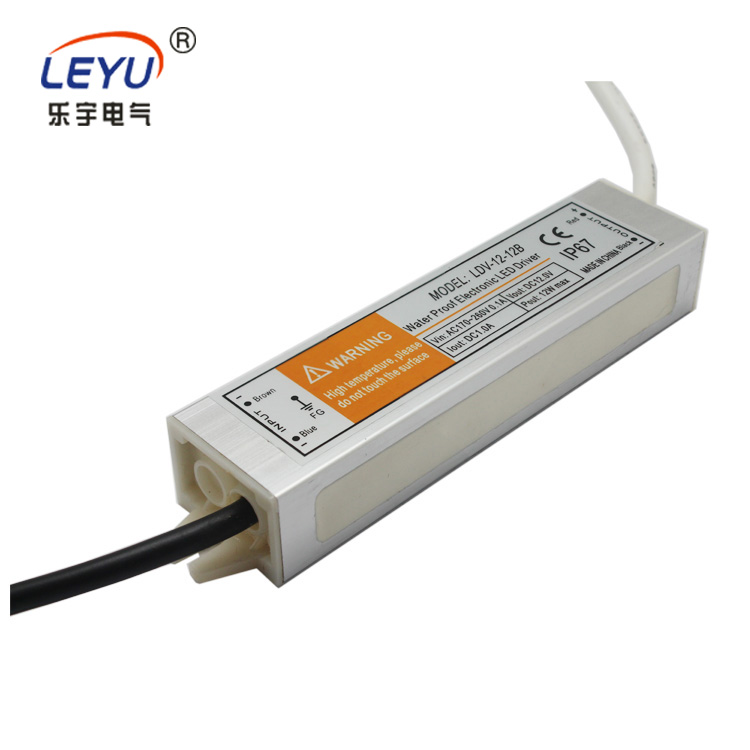

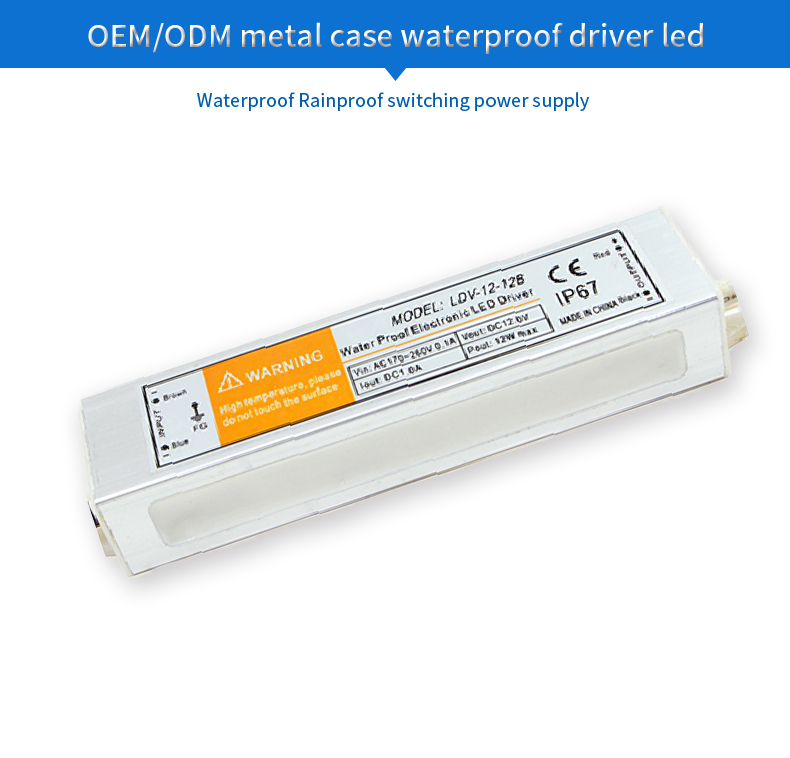

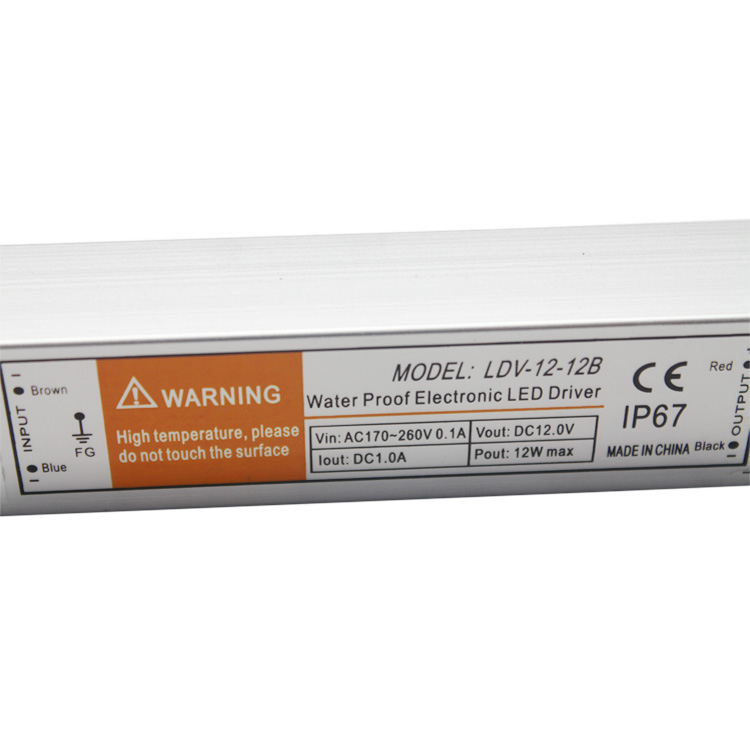

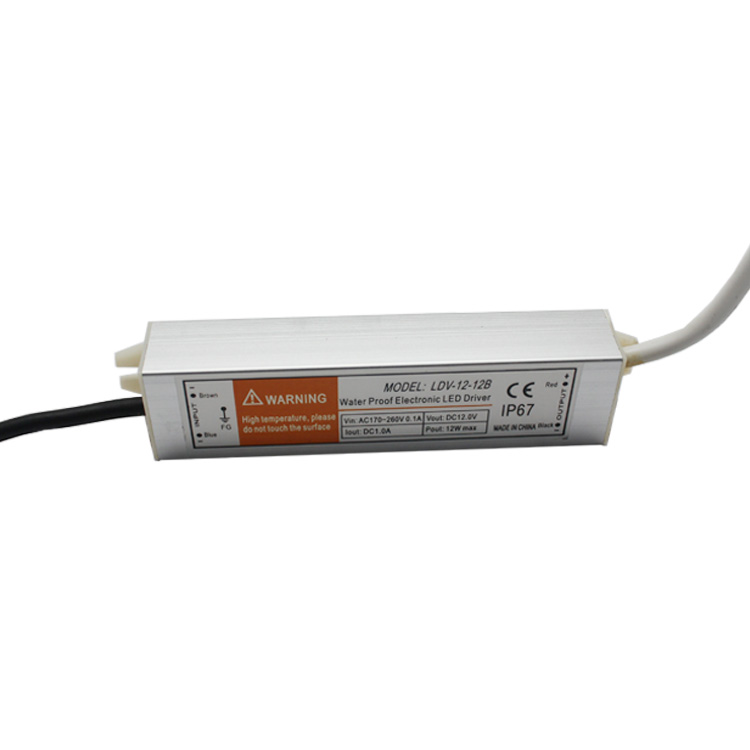

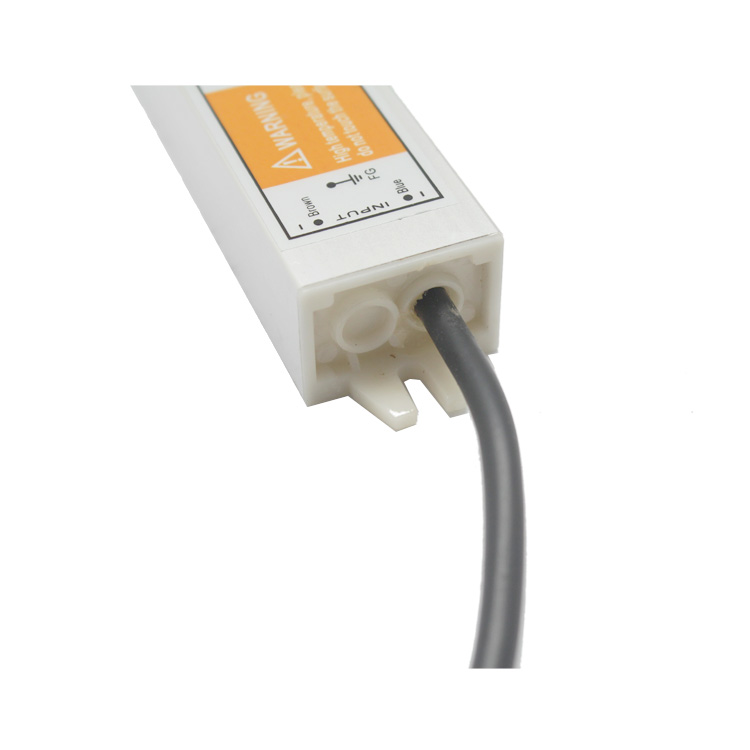

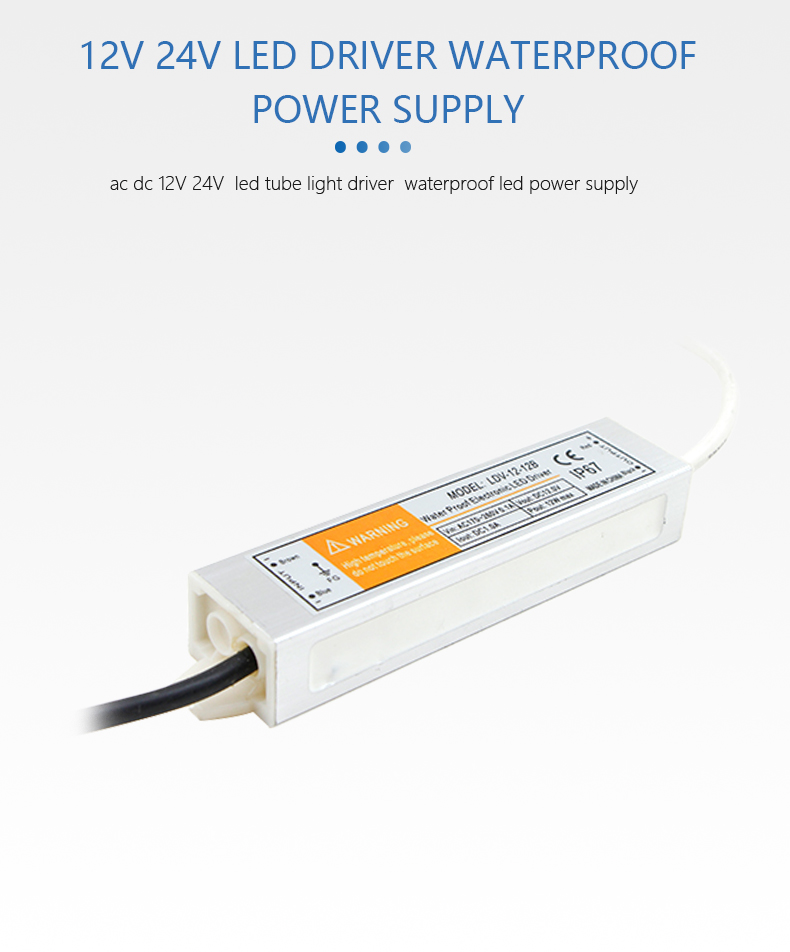

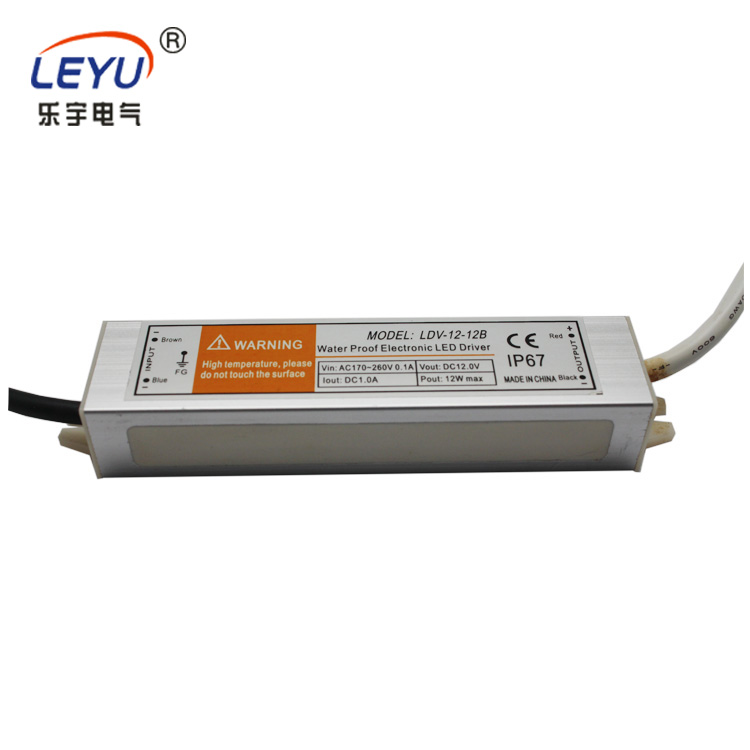

12W Single Output WaterproofSwitching Power Supply LDV-12 series
Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65 KHz
Suitable for LED lighten and moving sign applications.
2 years warranty
|
SPECIFICATION |
||
|
OUTPUT |
|
|
|
Model |
LDV-12-12 |
LDV-12-24 |
|
DC Voltage |
12V |
24V |
|
Rated Current |
1A |
0.5A |
|
Current Range |
0-1A |
0-0.5A |
|
Rated Power |
12W |
12W |
|
Ripple & Noise |
100mVp-p |
100mVp-p |
|
Voltage Adj. Range |
±10% |
±10% |
|
Voltage Tolerance |
±1% |
±1% |
|
Inlet Stability |
±0.5% |
±0.5% |
|
Load Stability |
±0.5% |
±0.5% |
|
Setup,Rise,Hold Up Time |
800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC |
|
|
|
|
|
|
INPUT |
|
|
|
Voltage Range |
176~264VAC 47~63Hz |
|
|
AC Current |
0.7A/115V 0.3A/230V |
|
|
Efficiency |
76%/115VAC |
80%/115VAC |
|
Inrush Current |
Cold-start current 15A/115V30A/230V |
|
|
Leakage Current |
<0.75mA/240VAC |
|
|
|
|
|
|
PROTECTION |
|
|
|
Over Load |
105%~150% |
|
|
Protection type: plusing hiccup shutdown Reset:auto recovery |
||
|
|
|
|
|
ENVIRONMENT |
|
|
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve),20%~90%RH |
|
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
|
|
Temp. Coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
|
|
|
|
|
|
SAFETY |
|
|
|
Withstand Voltage |
I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
|
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
|
|
|
|
|
STANDARD |
|
|
|
Safety Standard |
ApprovedIP67 |
|
|
EMC Standard |
CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification |
|
|
|
|
|
|
OTHERS |
|
|
|
Dimension |
138*30*20mm(L*W*H) |
|
|
Weight |
0.17Kg |
|
