Product Detail

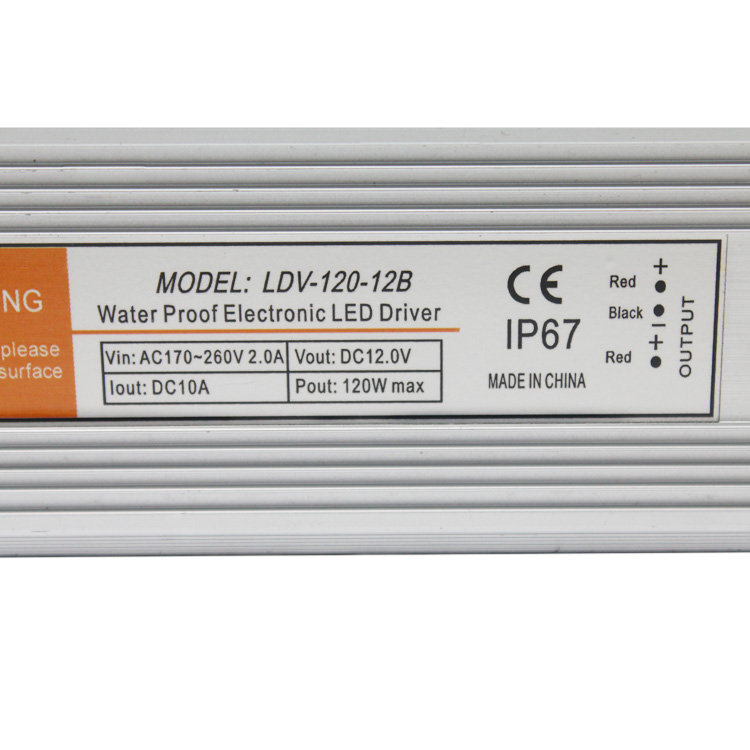

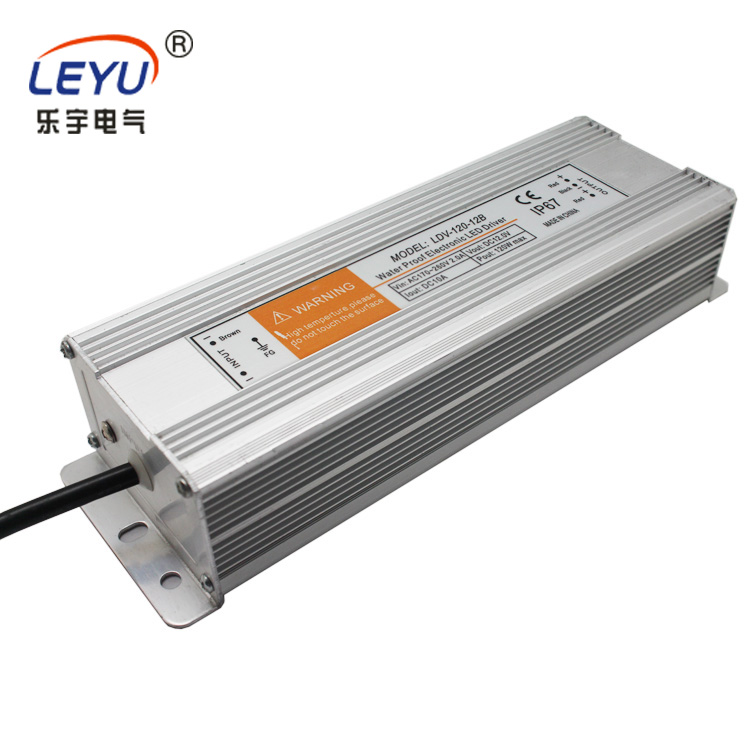

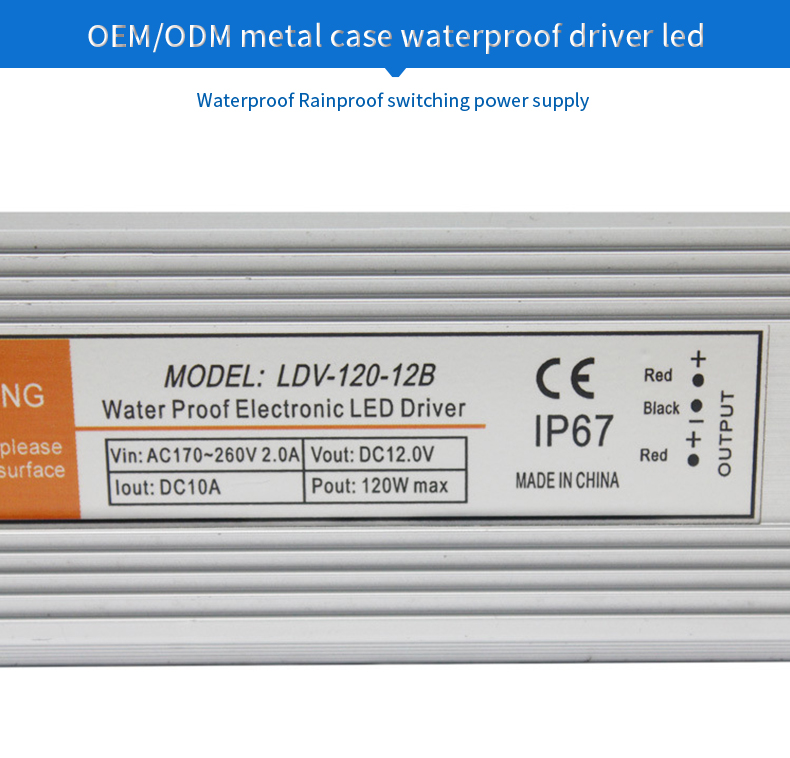

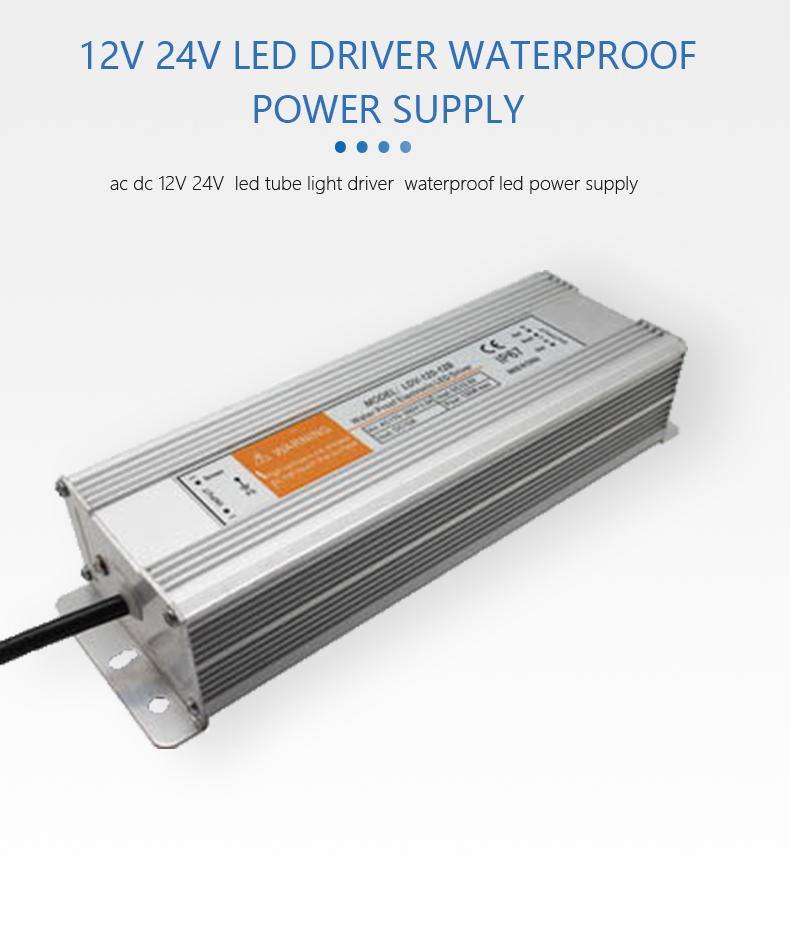

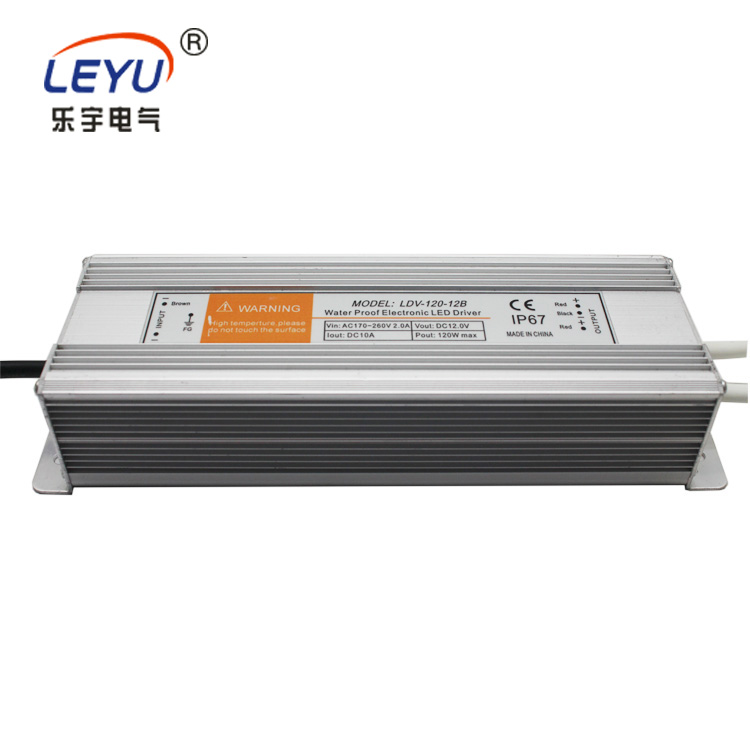

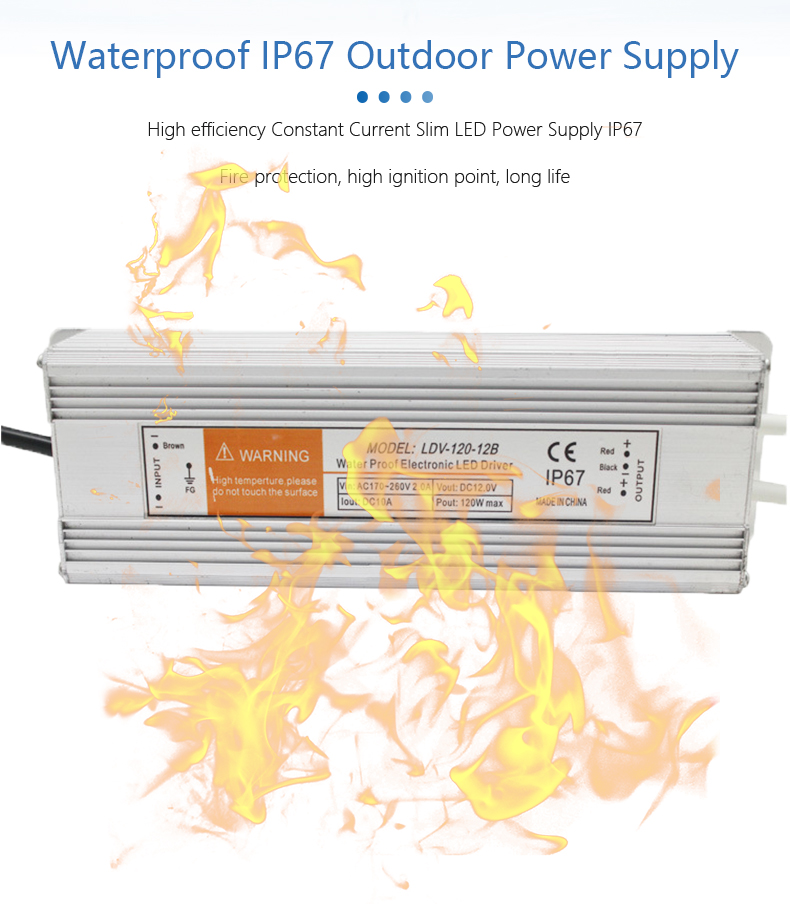

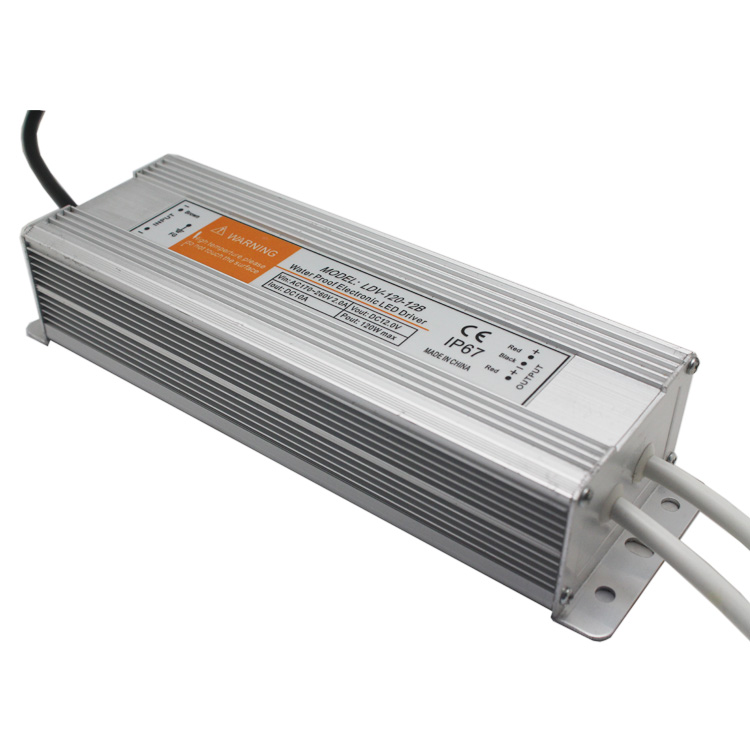

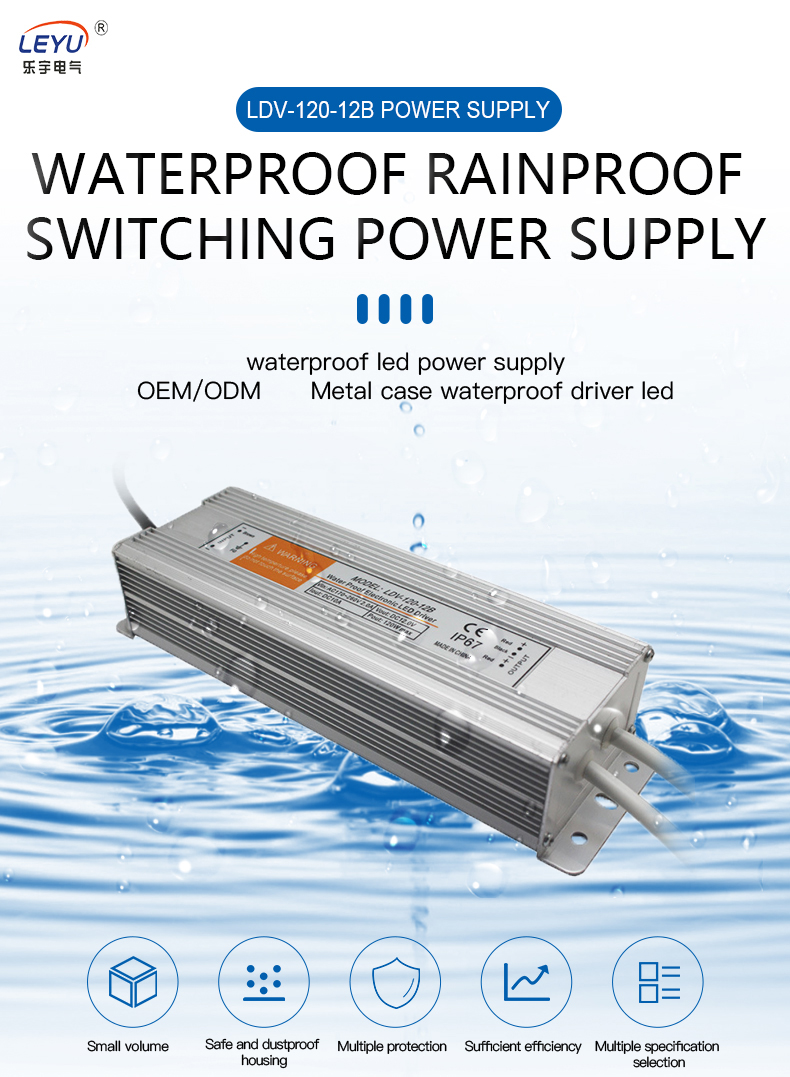

120W Single Output WaterproofSwitching Power Supply LDV-120 series
Features:
High efficiency, High reliability, Low cost

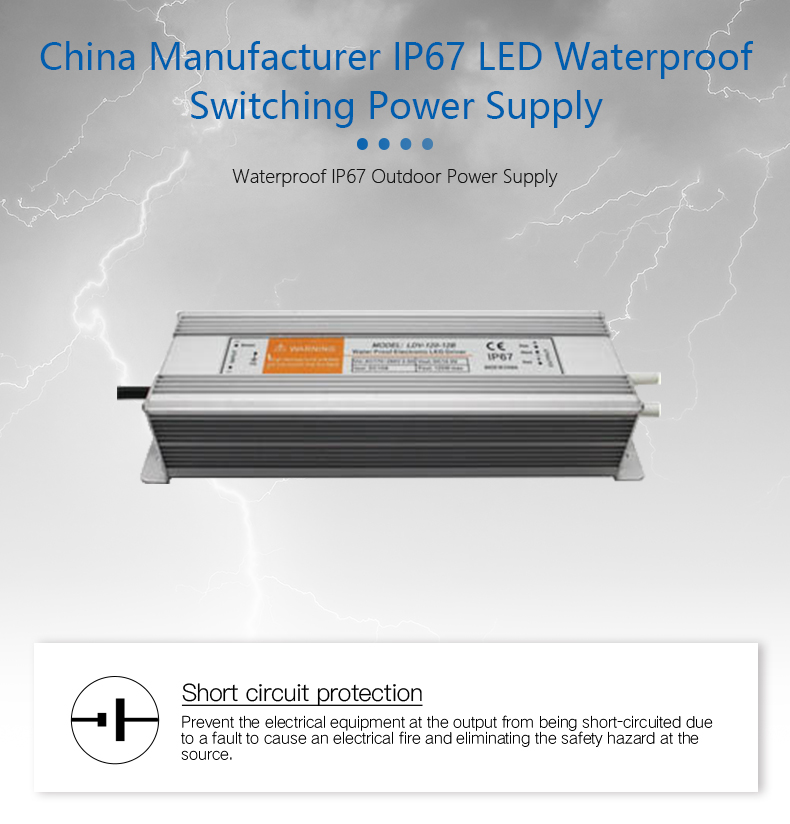

Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Suitable for LED lighten and moving sign applications.
2 years warranty
|
SPECIFICATION |
|||
|
OUTPUT |
|
||
|
Model |
LDV-120-12 |
LDV-120-24 |
LDV-120-36 |
|
DC Voltage |
12V |
24V |
36V |
|
Rated Current |
10A |
5A |
3.3A |
|
Current Range |
0-10A |
0-5A |
0-3.3A |
|
Rated Power |
120W |
120W |
119W |
|
Ripple & Noise |
100mVp-p |
150mVp-p |
150mVp-p |
|
Voltage Tolerance |
±1% |
±1% |
±1% |
|
Inlet Stability |
±0.5% |
±0.5% |
±0.5% |
|
Load Stability |
±0.5% |
±0.5% |
±0.5% |
|
Setup,Rise,Hold Up Time |
80ms,36ms,20ms/230VAC |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
180～264 VAC 47～63Hz；255～373VDC |
||
|
AC Current |
1.5A/230VAC |
||
|
Efficiency |
82% |
84% |
85% |
|
Inrush Current |
Cold-start current40A/230VAC |
||
|
|
|
||
|
PROTECTION |
|
||
|
Over Load |
105%~135% |
||
|
Protection：Hiccup mode, recovers automatically after fault condition is removed |
|||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃,20%~90%RH |
||
|
Storage Temp., Humidity |
-20℃~+85℃, 10%~95%RH |
||
|
Temp. Coefficient |
±0.03%/℃(0-50℃) |
||
|
Vibration |
10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||
|
|
|
||
|
STANDARD |
|
||
|
Safety Standard |
EN61347-1 EN61347-2-13 IP67 |
||
|
EMC Standard |
EN55015 EN61547 EN61000-3.4 CLASSB |
||
|
|
|
||
|
OTHERS |
|
||
|
Dimension |
222*67*44mm(L*W*H) |
||
|
Weight |
1.3Kg |
||
