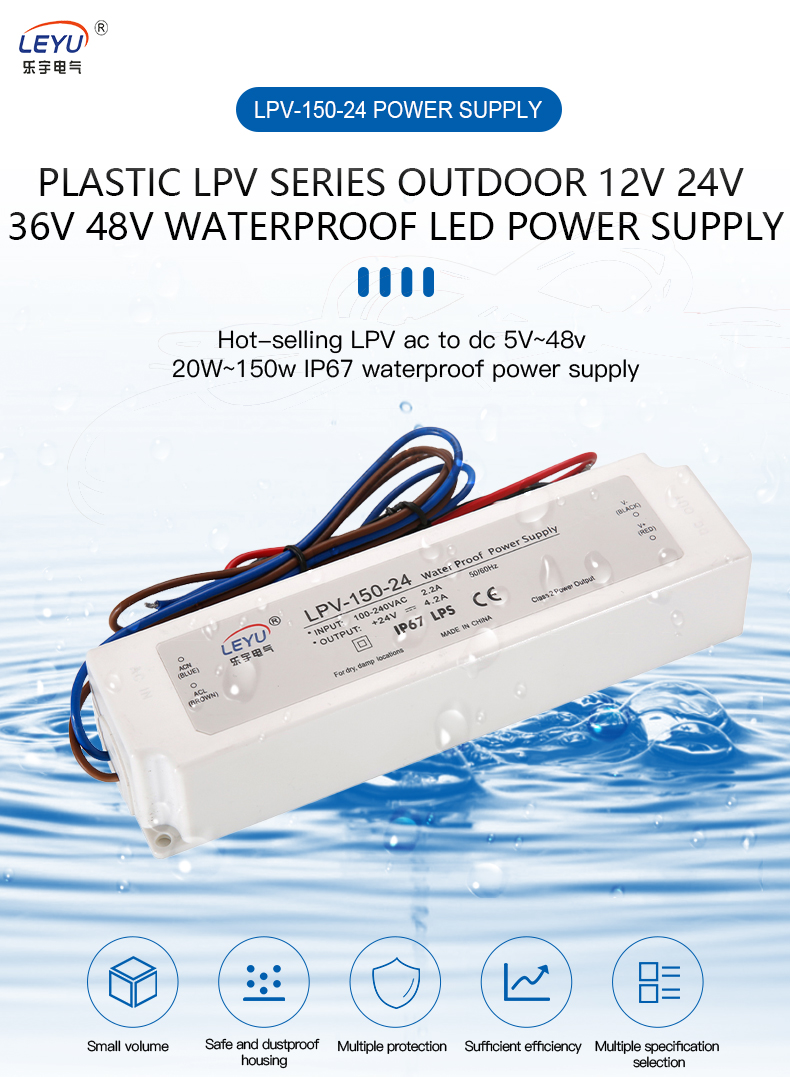

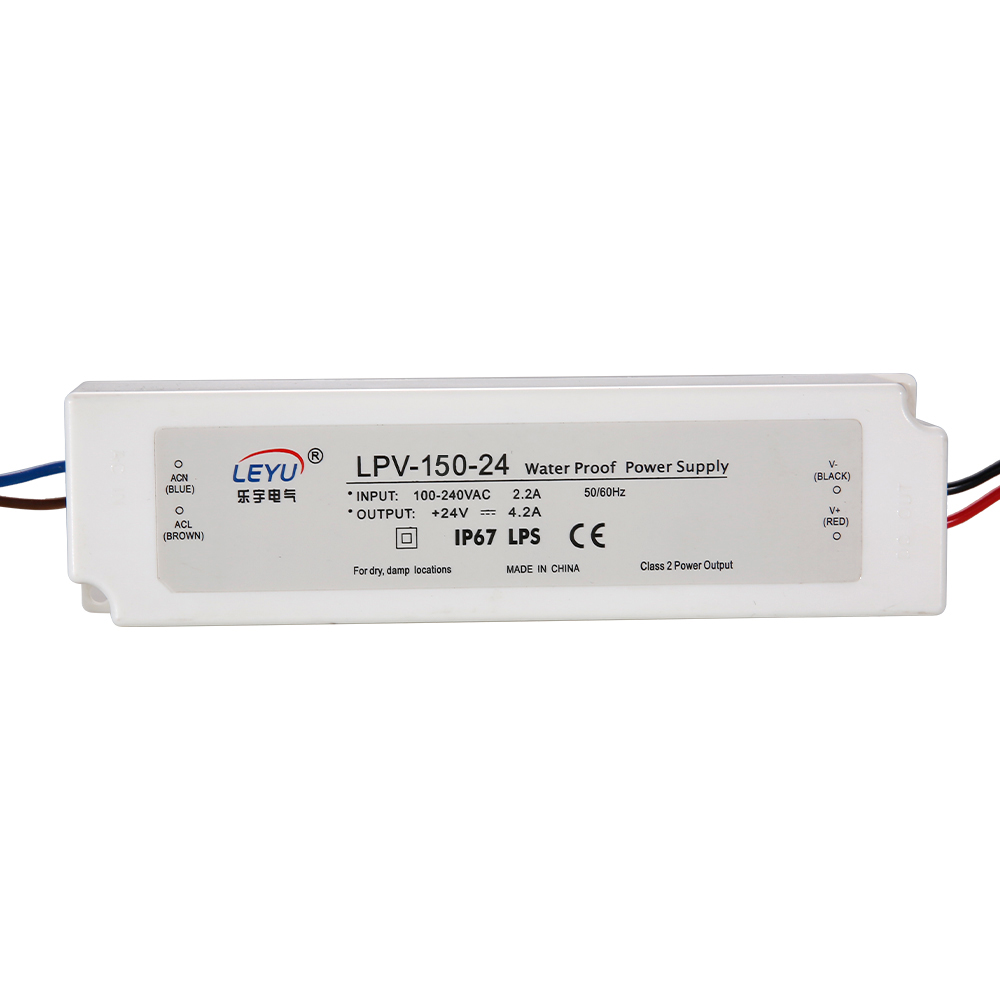

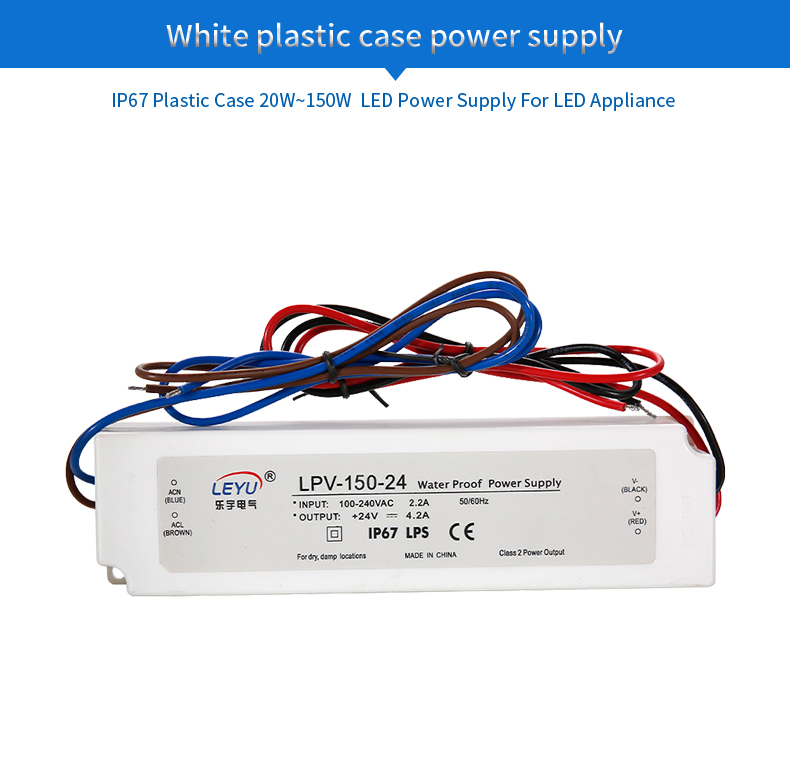

LPV-150

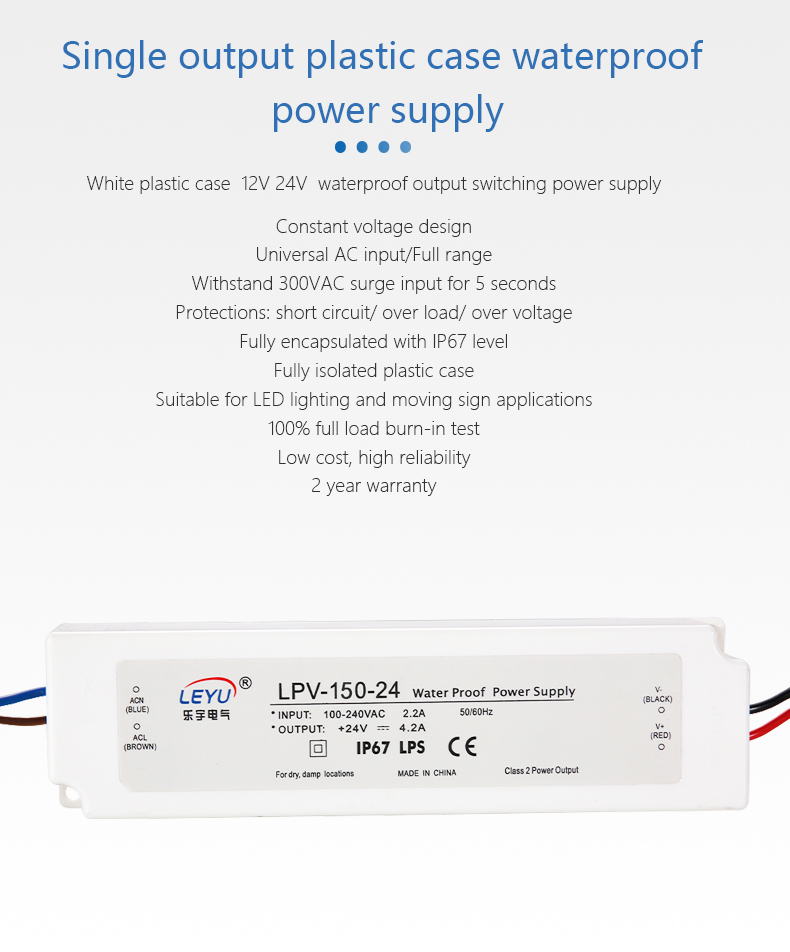

Constant voltage design
Universal AC input/Full range
Withstand 300 VAC surge input for 5 seconds

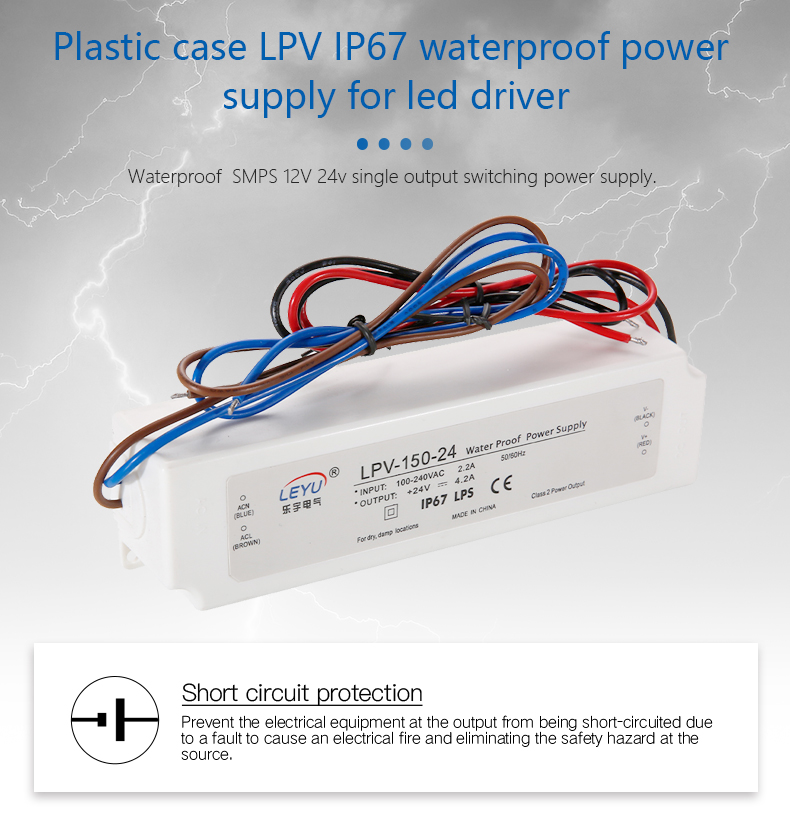

Protections: short circuit/ over load/ over voltage
Fully encapsulated with IP67 level

Online Service

Print this Page

Skype Online

E-mail Us

QQ

Facebook

wangwang

Wechat

Online Inquiry

Product Detail

SPECIFICATION

OUTPUT
Model	LPV-150-12	LPV-150-15	LPV-150-24	LPV-150-36	LPV-150-48
DC Voltage	12V	15V	24V	36V	48V
Rated Current	10A	8A	6.3A	4.2A	3.2A
Current Range	0-10A	0-8A	0-6.3A	0-4.2A	0-3.2A
Rated Power	120W	120W	151.2W	151.2W	153.6W
Ripple&Noise	200mVp-p	200mVp-p	200mVp-p	200mVp-p	200mVp-p
Voltage Tolerance	±5%
Line Regulation	±1%
Load Regulation	±2%
Setup,Rise Time	2000ms, 25ms/230VAC2000ms, 25ms/115VAC
Hold Up Time	50ms/230VAC 14ms/115VAC at full load
INPUT
Voltage Range	180-305VAC47-63Hz;254~431VDC
AC Current	2.2A/115V1.2A/230V
Efficiency	87%	88%	89%	89%	90%
Inrush Current	Cold Start60A at 230VAC
Leakage Current	0.25mA/240VAC
PROTECTION
Over Load	110-150% rated output power
Over Load	Protectiontype: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage	13.5-18V	17-25V	27~35V	40-49V	52-63V
Over Voltage	Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp.Humidity	-25 ~ +70ºC (Refer to "Derating Curve") 20-90% RH non-condensing
Storage Temp.Humidity	-40ºC~+80ºC; 10%~95%RH
Temp.Coefficient	±0.03%/ºC(0~50ºC)
Vibration	10~500Hz,2G 10min,/1cycle,period for 60min,each along X,Y,Z axes
SAFETY
Withstand Voltage	I/P-O/P:3KVAC
Isolation Resistance	I/P-O/P>100M Ohms / 500VDC / 25ºC / 70% RH
STANDARD
Safety Standard	UL8750, CSA C22.2 No.250.13-12, UL879,CSA C22.2 No.207-M89, IP67 approved, design refer to EN60950-1
EMCStandard	EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A
OTHERS
Dimension	1913737.5mm(LWH)
Weight	0.78kg;20pcs/13.6kg/0.55CUFT
