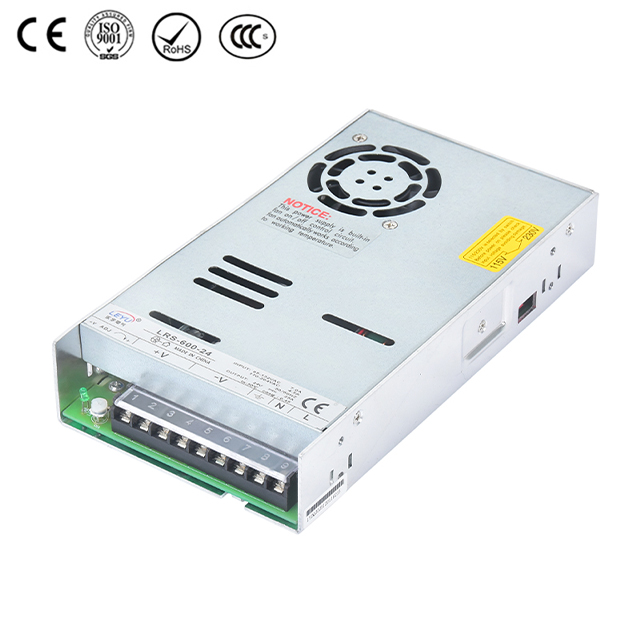

LRS-600
· AC input range selectable by switch
· Withstand 300VAC surge input for 5 second
· Protections: Short circuit / Overload / Over voltage / Over temperature
· Forced air cooling
· Built-in cooling Fan ON-OFF control
· 1U low profile
· Withstand 5G vibration test
· High operating temperature up to 65°C
· Operating altitude up to 5000 meters (Note.10)
· 2 years warranty
Product Detail
600w power supply Single Output SMPS
|
MODEL |
LRS-600-5 |
LRS-600-12 |
LRS-600-15 |
LRS-600-24 |
LRS-600-27 |
LRS-600-36 |
LRS-600-48 |
|
Dc Voltage |
5V | 12V | 15V | 24V | 27V | 36V | 48V |
|
Rated Current |
100A | 50A | 40A | 25A | 22.2A | 16.6A | 12.5A |
|
Current Range |
0-100A | 0-50A | 0-40A | 0-25A | 0-22.2A | 0-16.6A | 0-12.5A |
|
Rated Power |
500W | 600W | 600W | 600W | 5993.4W | 597.6W | 600W |
|
Ripple & Noise (Max.) |
200mVp-p |
200mVp-p |
200mVp-p |
240mVp-p |
270mVp-p |
360mVp-p |
360mVp-p |
|
Voltage Adj. Range |
4.75 ~ 5.5V |
11.4 ~ 13.2V |
14.25 ~ 16.5V |
22.8 ~ 26.4V |
25.65 ~ 29.7V |
34.2 ~ 39.6V |
45.6 ~ 52.8V |
|
Voltage Tolerance |
±2.0% |
±1.5% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load Regulation |
±2.0% |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Setup, Rise Time |
1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load |
||||||
|
Hold Up Time |
20ms/230VAC 16ms/115VAC at full load |
||||||
|
Voltage Range |
90 ~ 132VAC / 180 ~ 264VAC by switch 255 ~ 370VDC (swith on 230VAC) |
||||||
|
Frequency Range |
47-63Hz |
||||||
|
Efficiency |
86% | 90% | 90% | 91% | 91% | 92% | 92% |
|
Ac Current |
12A/115VAC 7.5A/230VAC |
||||||
|
Inrush Current |
35A/115VAC 60A/230VAC |
||||||
|
Leakage Current |
<2mA / 240VAC |
||||||
|
Over Load |
105 ~ 150% rated output power |
||||||
|
Constant current limiting, unit will shutdown after 3 sec. re-power on to recover |
|||||||
|
Over Voltage |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
18 ~ 21V |
27.6 ~ 32.4V |
31 ~ 36.5V |
41.4 ~ 48.6V |
55.2 ~ 64.8V |
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||||
|
Over Temperature |
Shut down o/p voltage, re-power on to recover |
||||||
|
Fan On/Off Control |
RTH3≧50℃ FAN ON, ≦40℃ FAN OFF |
||||||
|
Working Temp. |
-20 ~ +65℃ (Refer to "Derating Curve") |
||||||
|
Working Humidity |
20 ~ 90% RH non-condensing |
||||||
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
||||||
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
||||||
|
Vibration |
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
|
Withstand Voltage |
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH |
||||||
|
Emc Emission |
Compliance to EAC TP TC 020, BSMI CNS15936,KC KSC 9832, KSC 9835 |
||||||
|
Emc Immunity |
Compliance to EAC TP TC 020,KC KSC 9832, KSC 9835 |
||||||
|
Dimension |
225*124*41mm (L*W*H) |
||||||
|
Packing |
0.95Kg/12pcs/12.4Kg/0.77CUFT |
||||||
