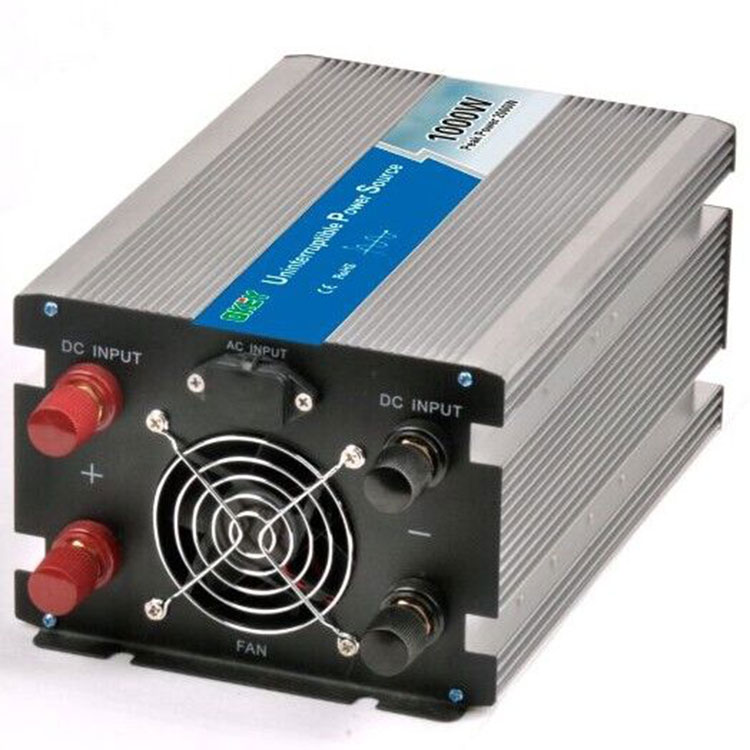

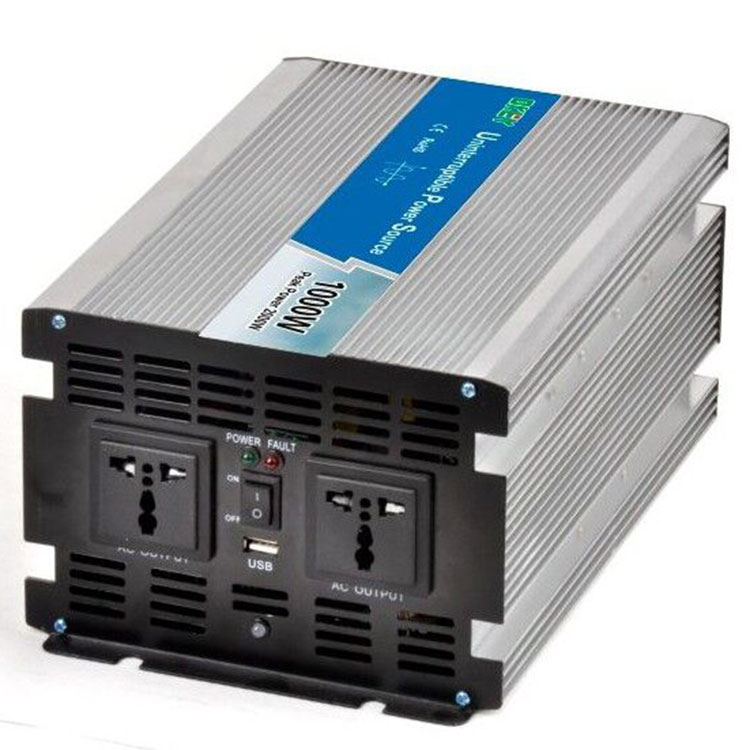

OPIM-1000C
OPIM‑1000C is a high-performance industrial inverter, designed to convert DC input into stable AC output. It delivers reliable power supply for off-grid energy storage, backup power and industrial equipment. Built with comprehensive protection functions, this unit supports continuous stable operation under rated load and undergoes full aging test before delivery.
Product Detail
\
| Model | OPIM-1000C-1 | OPIM-1000C-1 | OPIM-1000C-2 | OPIM-1000C-2 |
| Rated power | 1000W | |||
| Peak power | 2000W | |||
| Input voltage | DC12V | DC24V | DC12V | DC24V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||
| Unload current less than | 0.8A | 0.5A | 0.8A | 0.5A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||
| Output waveform | Modified Sine Wave | |||
| Waveform distortion | THD<3 | |||
| USB port | 5V 1A | |||
| Max.efficiency | 90% | |||
| Input current | 10A | |||
| Input voltage range | 10-15.5V | 20-31V | 10-15.5V | 20-31V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 10.5±0.5V | 21±0.5V |
| Low voltage protection | 10±0.5V | 20±0.5V | 10±0.5V | 20±0.5V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 15.5±0.5V | 31±0.5V |
| Low voltage recover | 13±0.5V | 24±0.5V | 13±0.5V | 24±0.5V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 14.8V±0.5V | 29.5V±0.5V |

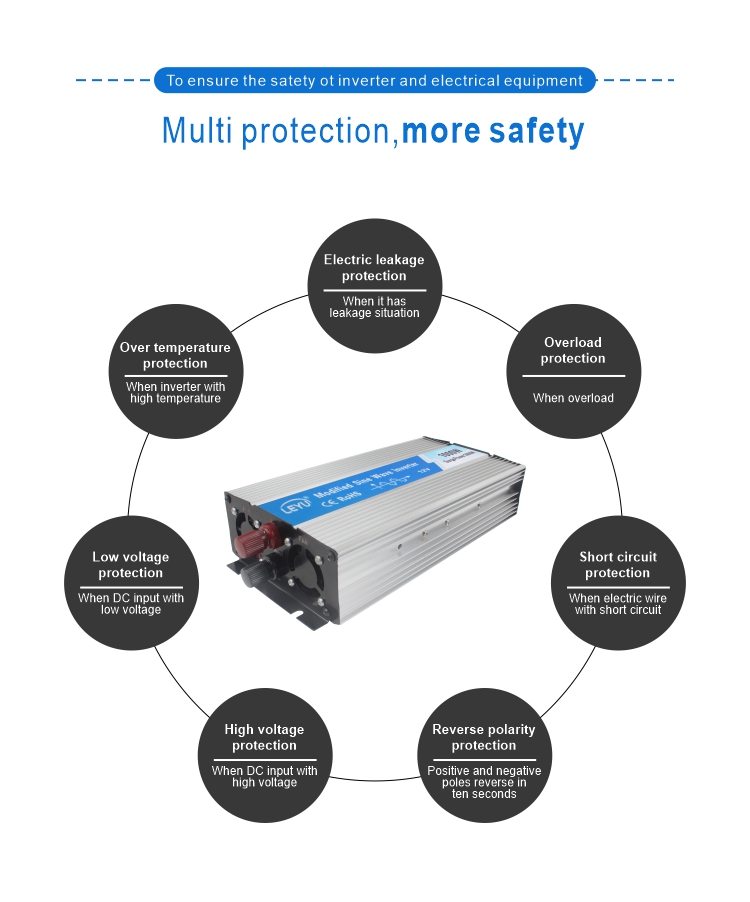

| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||
| Over voltage | LED Red light on, shut down | |||
| Over load | LED Red light on, shut down | |||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||
| Short circuit | LED Red light on | |||
| Input reverse polarity | Fuse burn-out | |||
| Working temperature | -10°- +50° | |||
| Storage temperature | -30°- +70° | |||

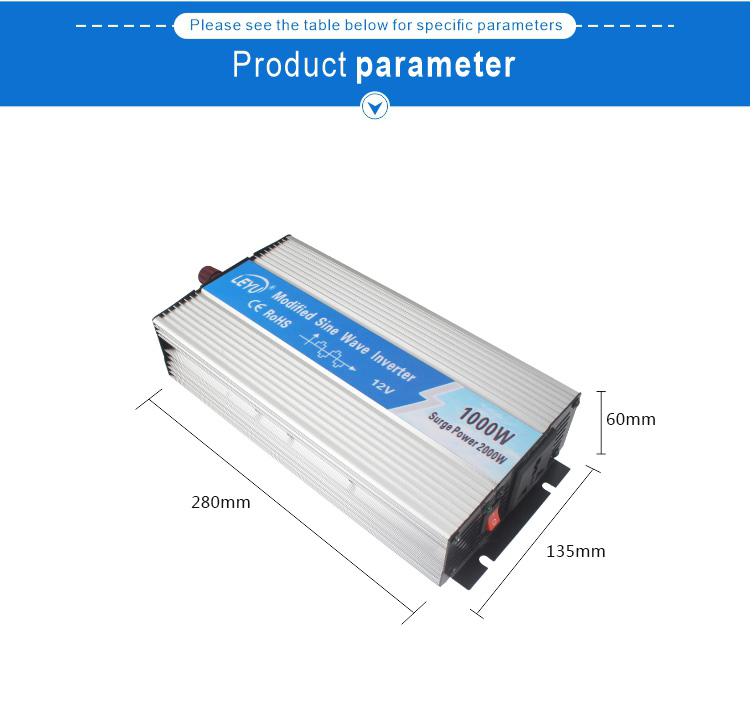

| Dimension(mm) | 285x180x130mm | |||
| Packing(mm) | 450x245x195mm | |||
| Net./gross weight(g) | 3730/4600g | |||
| QTY/Ctn | 4 Pcs | |||
| Meas./Ctn(mm) | 500x405x425mm | |||
| Gross weight/Ctn(g) | 18700g | |||
| Warranty | 1 years | |||
| Configuration | Standard | |||
| Cooling method |
Intelligent air cooling |
|||
