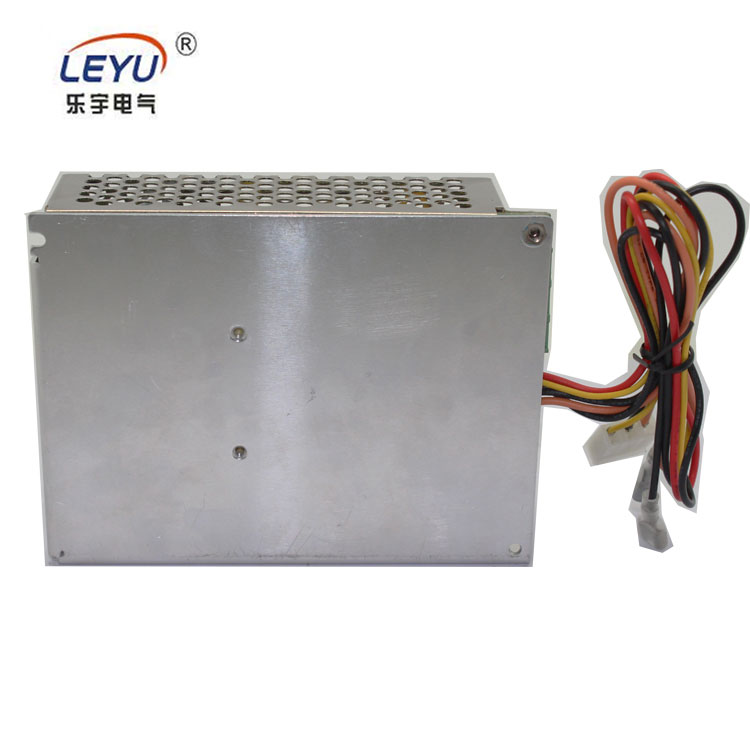

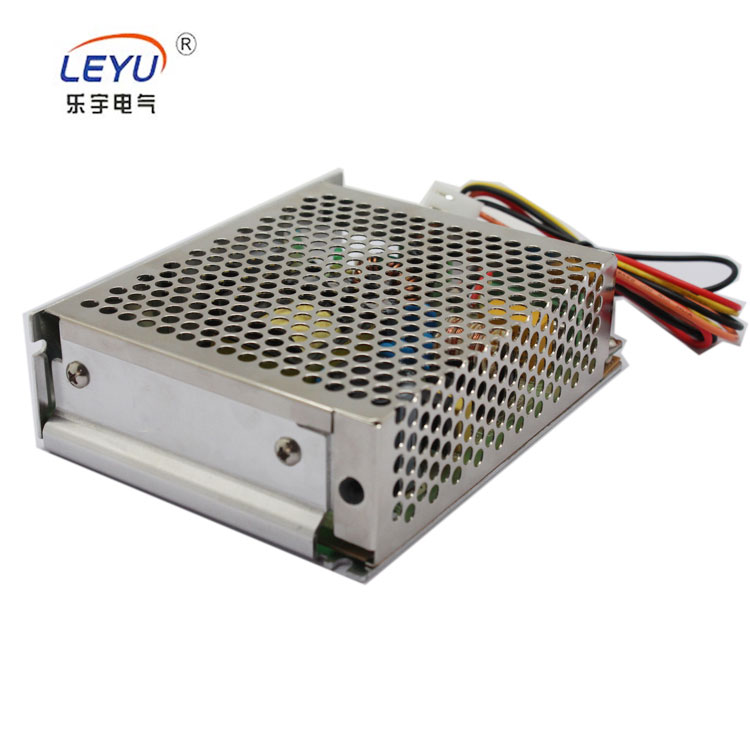

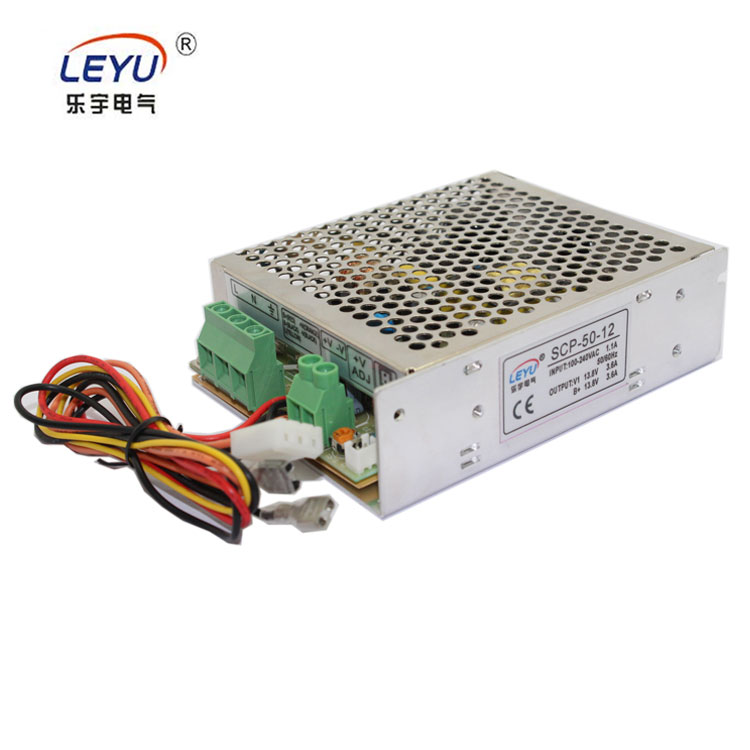

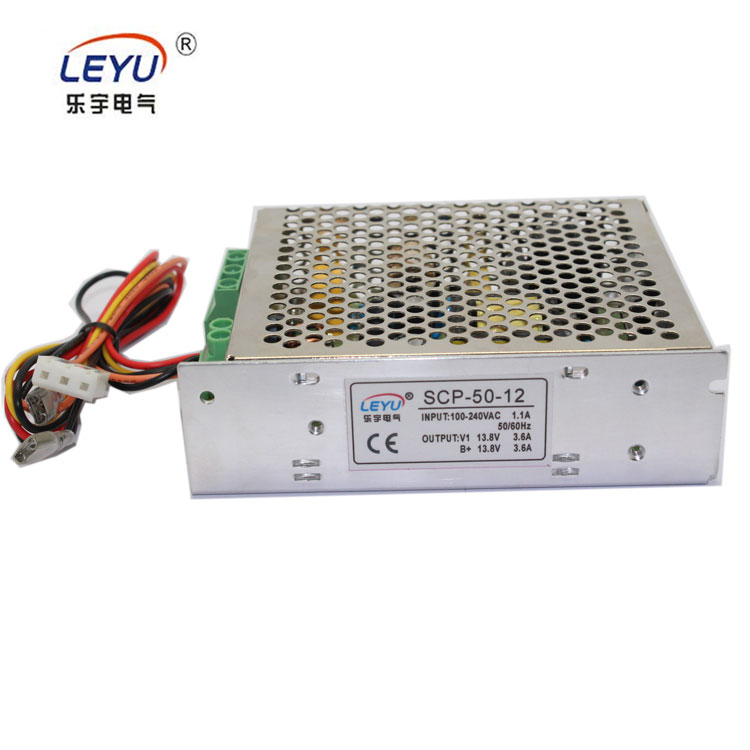

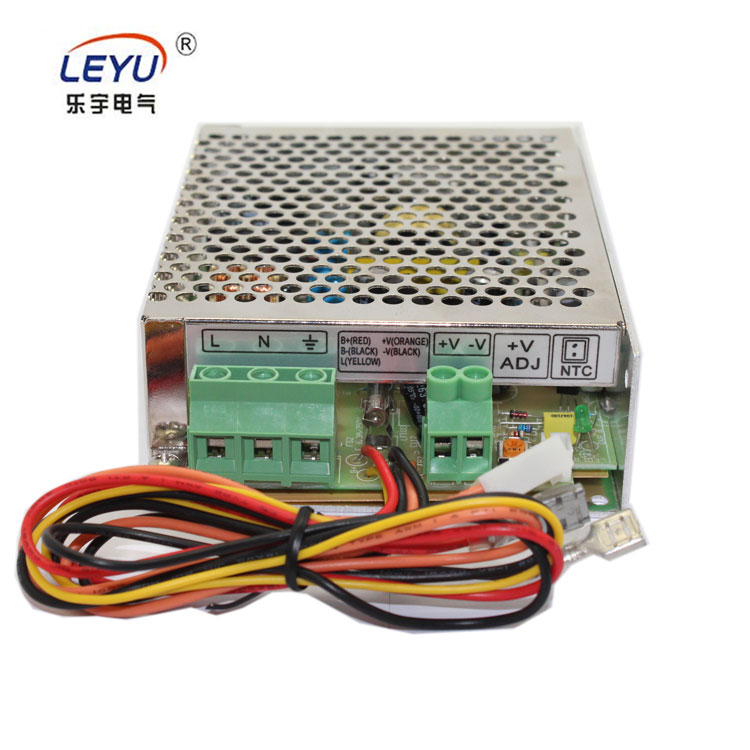

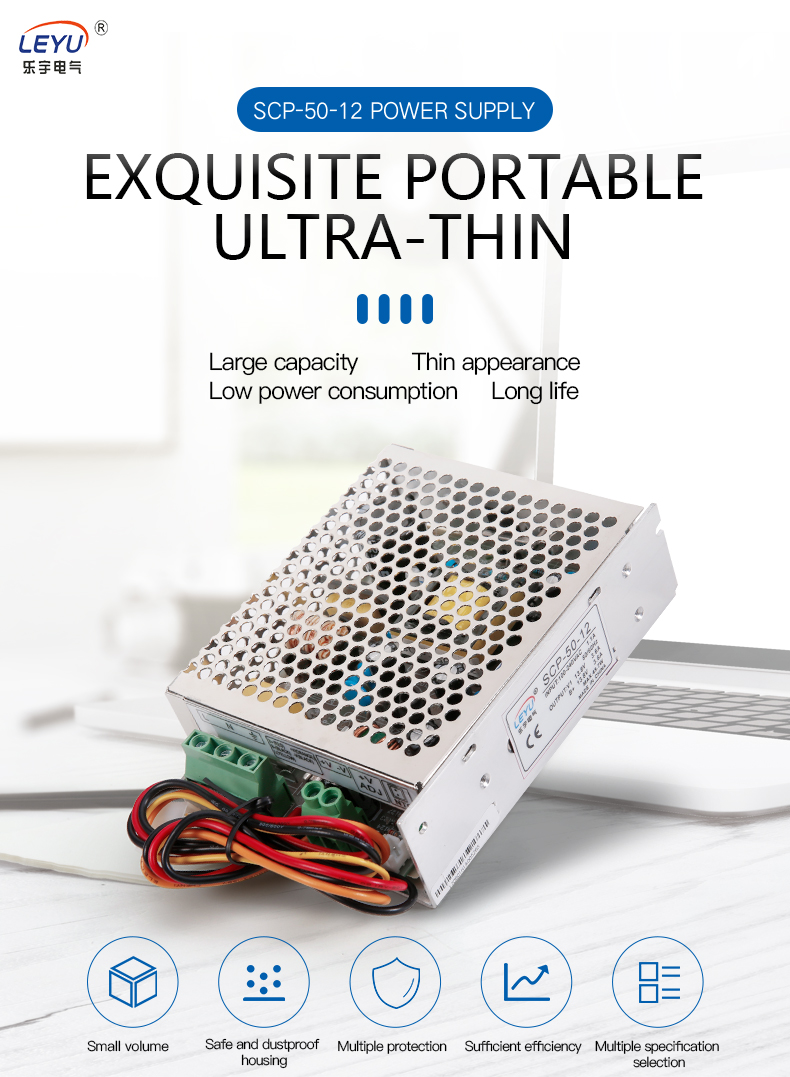

50W Single Output UPS functionPower Supply   SCP-50 series

Features:

1.Universal AC input/Full rang

2.Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)

3.Cooling by free air convection

4.LED indicator for power on

5.No load power consumption<1W

6.Suitable for installation in metallic or non-metallic system enclosure

7.100% full load burn-in test

8.2 years warranty



SPECIFICATION

OUTPUT



Model

SCP-50-12

SCP-50-24

DC Voltage

13.8V

27.6V

Rated Current

3.6A

1.8A

Current Range

0-3.6A

0-1.8A

Rated Power

49.7W

49.7W

Ripple & Noise

120mVp-p

200mVp-p

Voltage Adj. Range

+15,-5%

+15,-5%

Voltage Tolerance

±2%

±1%

Inlet Stability

±1%

±1%

Load Stability

±2%

±1%

Setup,Rise

500ms,30ms/230VAC  1200ms,30ms/115VAC at full load

Hold Up Time

50ms/230VAC         16ms/115VAC at full load

INPUT



Voltage Range

85~264VAC   120-370VDC

Frequency Range

47-63Hz

AC Current

1.1A/115VAC  0.65A/230VAC

Efficiency

81%

85%

Inrush Current

Cold-start 45A

Leakage Current

<2mA/240VAC

Over Load

4.3A~5.8A rated output power

2.2A~2.9A rated output power

Protection type: hiccup mode,recovers automatically after fault condition is removed

Over Voltage

16.6~19.3V

33.1~38.5V

Protection type: shut down o/p voltage, re-power on to recover

ENVIRONMENT



Working Temp., Humidity

-20~+60(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-40~+85, 10%~95%RH

Temp. Coefficient

±0.03%/(0~45)

Vibration

10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes

Withstand Voltage

I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

Safety Standard

UL60950-1,CCC,CE

EMC Standard

EN55022,CLASS B

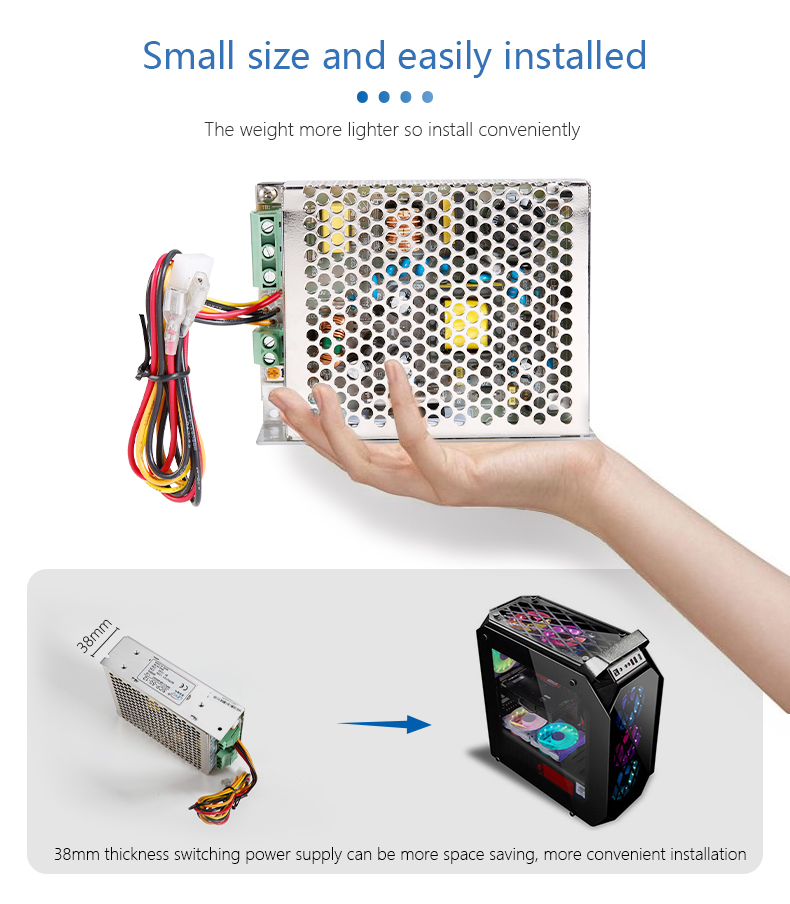

Dimension

129*98*38mm(L*W*H)

Net Weight

375.7g

Packing

450g/pc  30pcs/carton

SCP-50 Power Supply Introduction

When we produce the SCP-50 power supply, we fully consider its high quality and high reliability production standards from the user's perspective. The SCP series includes auxiliary models that can be fully customized according to user needs.

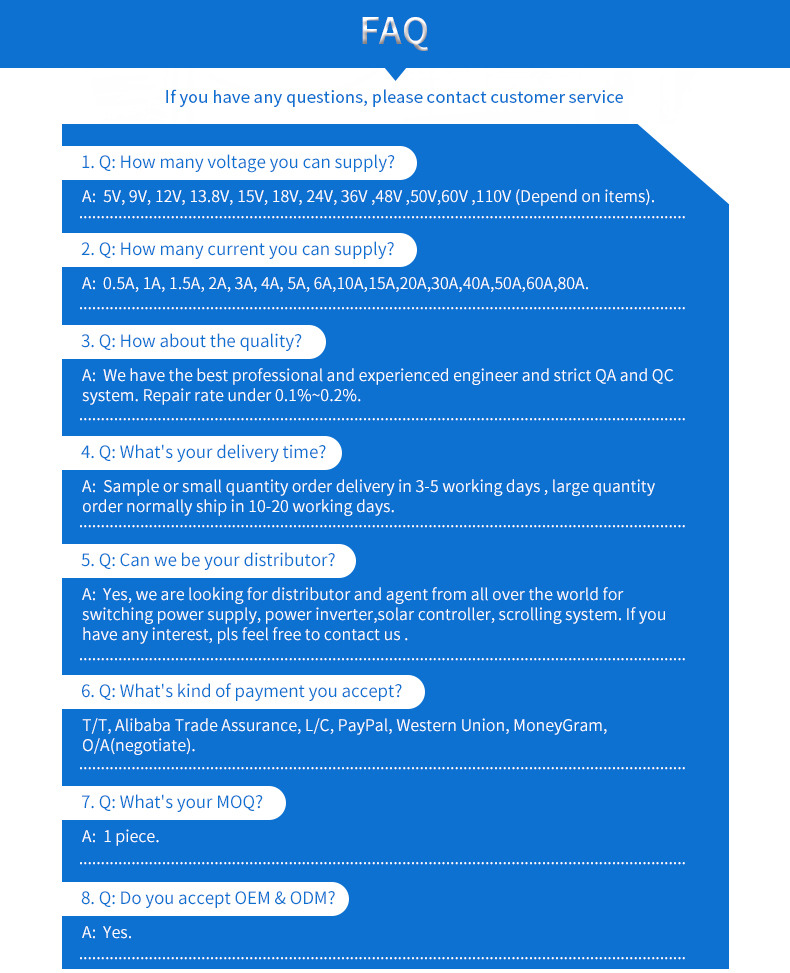

FAQ

Please don't worry or panic if you encounter a problem with your device. You can contact Leyu immediately, and we will solve the problem for you wholeheartedly to ensure the regular operation of the equipment.


Understand the warranty plan.


Surge coverage: from day one.

- Failure insurance: starts after the manufacturer's warranty period ends.
- Claim process: Claims can be easily submitted online or by phone, and most claims can be approved quickly.
- Compensation options: e-gift card for the purchase price, or product repair/replacement.
The plan must be purchased within 30 days of buying the product and does not include pre-existing problems.
With this plan, you can rest assured that accidental damage and failures are covered. When purchasing, consider the coverage of surges and other necessary functions.





scp-50

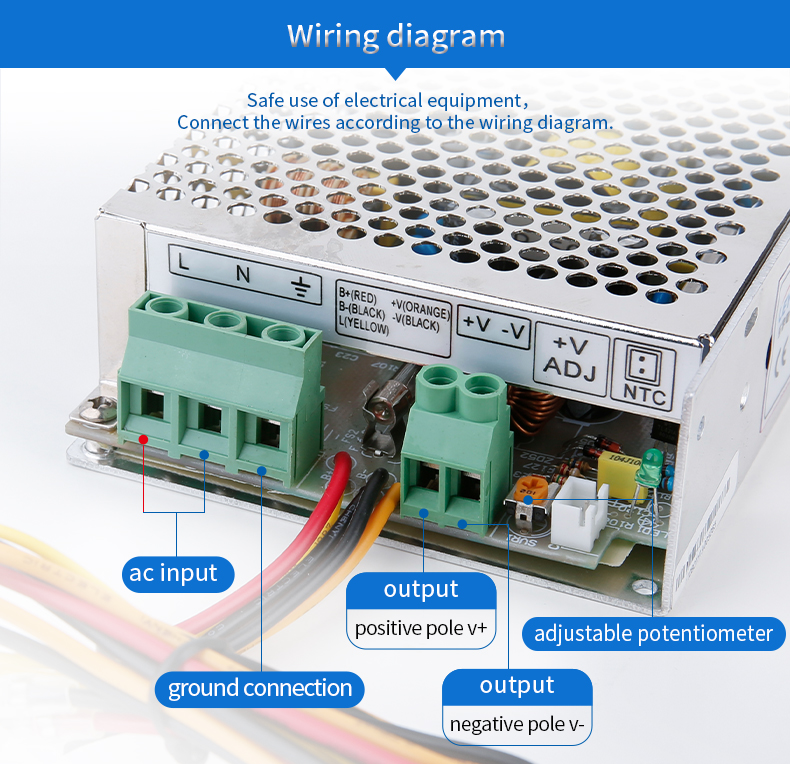

scp-50 wiring diagram
