ZSN3-10KO

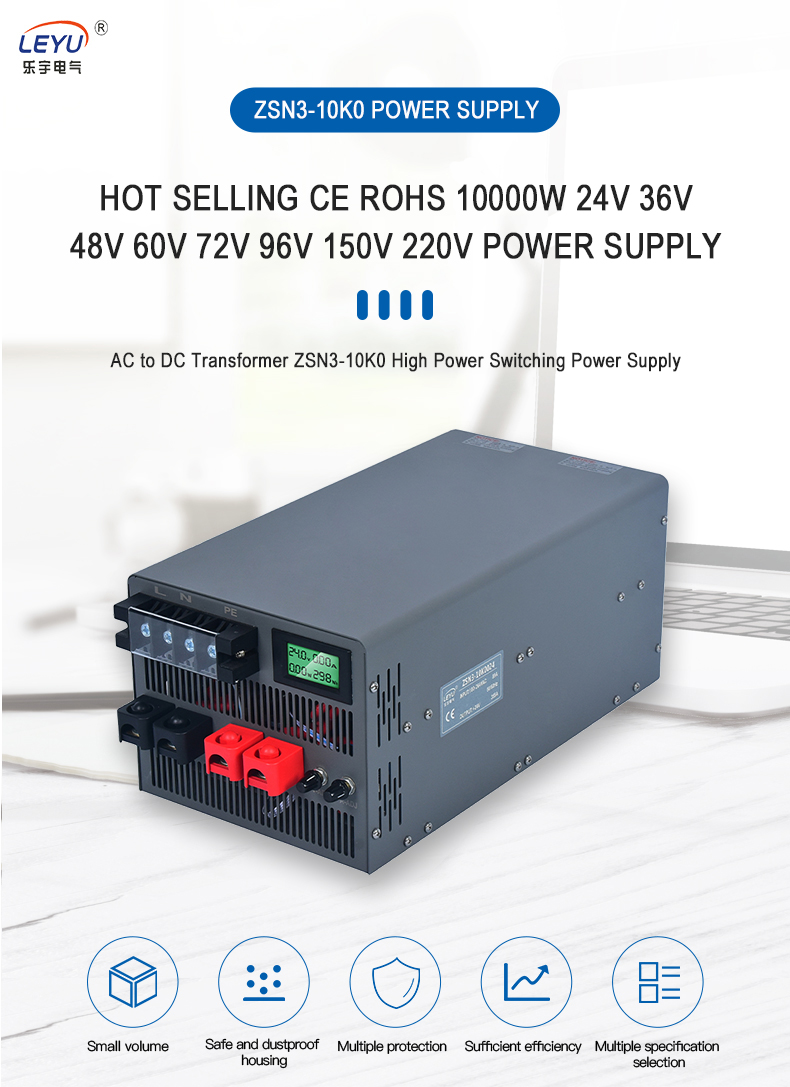

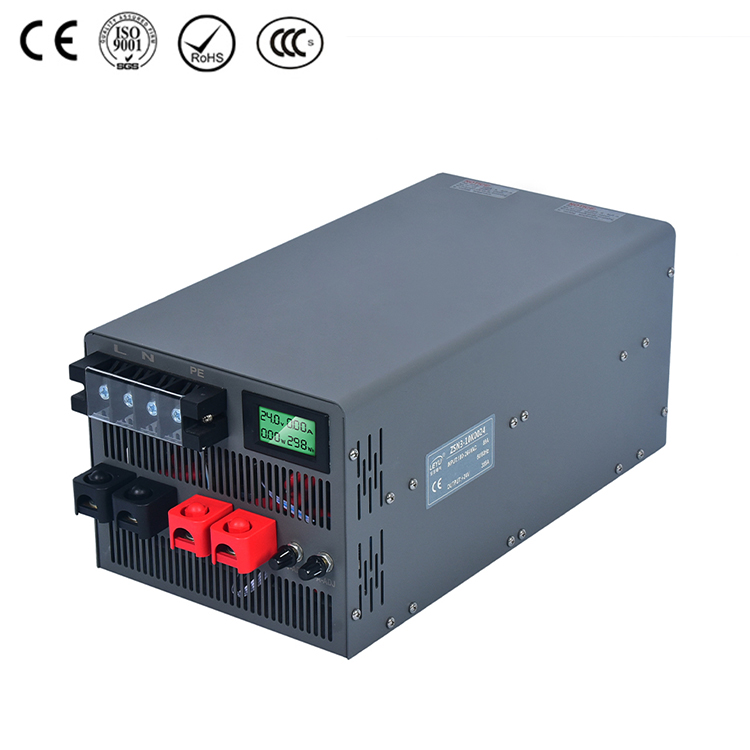

The ZSN3-10K0 is a 5KW single-output chassis-type AC-DC/DC-DC power supply. The entire series has an input voltage range of 180 - 264VAC / 250 - 370VDC and can provide DC output that meets most industrial requirements. Each model can be cooled by an internal speed-controlled fan, with an operating temperature of up to 60°C. It is equipped with multiple features such as adjustable output voltage and current, remote on/off control, and auxiliary power, offering a variety of design flexibilities.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
Next

Product Detail

specification

Model
 ZSN3-10K0-24
 ZSN3-10K0-36
 ZSN3-10K0-48
 ZSN3-10K0-60
 ZSN3-10K0-72
 ZSN3-10K0-96
 ZSN3-10K0-108
 ZSN3-10K0-150
 ZSN3-10K0-220
OUTPUT
DC Voltage
 24V 36V 48V 60V 72V 96V 108V 150V 220V
Rated Current
 375A
 250A
 188A
 150A
 125A
 94A
 83A
 60A
 41A
Current Range
 0 - 375A
 0 - 208A
 0 - 188A
 0 - 150A
 0-125A 0-94A 0-83A 0 - 60A
 0 - 41A
Rated Power
 10000W
 10000W
 10000W
 10000W
 10000W
 10000W
 10000W
 10000W
 10000W
Ripple
 380mV
 450mV
 500mV
 500mV
 500mV
 600mV
 850mV
 900mV
 1000mV
Optimal Range of Constant Current
 12-24V
 18- 36V
 24-48V
 30 - 60V
 36 - 72V
 48 - 96V
 54 - 108V
 75 - 150V
 110 - 220V
voltage accuracy
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
linear adjustment rate
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
load regulation
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
Setup, Rise, Hold Up Time
 1500mS，100mS/230VAC(at full load）
INPUT
Voltage Range
 180 - 264VAC / 245 - 370VDC
Frequency Range
 45Hz - 65Hz
power factor
 PF≧0.6/230VAC(at full load)
Efficiency
 86 %
 87 %
 88 %
 89 %
 90 %
 90 %
 90 %
 91 %
 91 %
AC Current
 ＜ 89A
Leakage Current
 ＜ 3.0mA / 240VAC

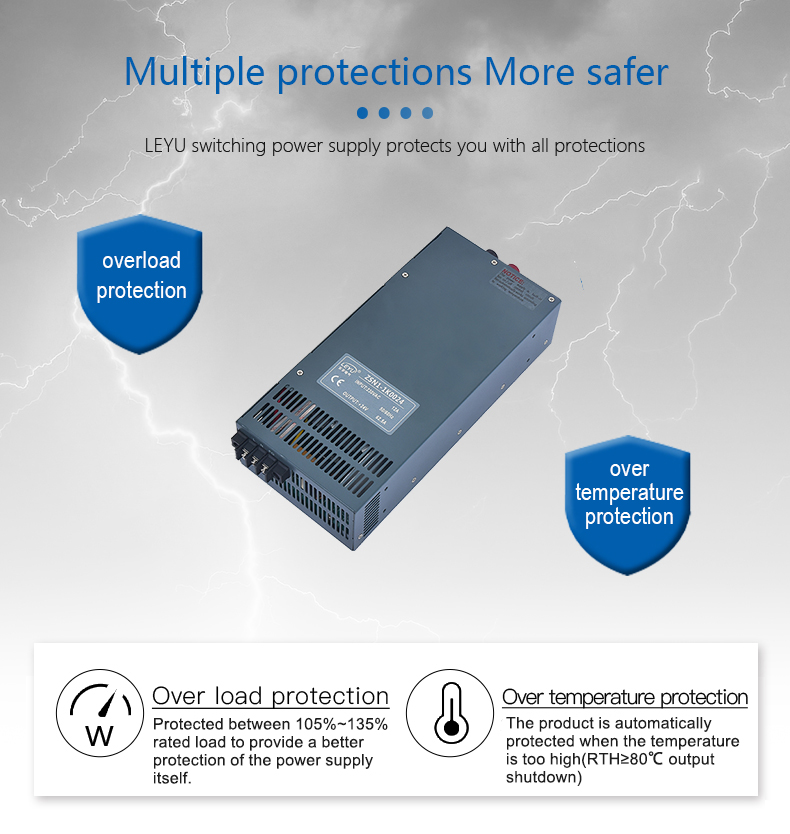

PROTECTION
short circuit
 Enter a constant current
Over Temp
 The output is turned off, and it automatically resumes or restarts when the temperature drops
FUNCTION
output voltage adjustment
 0 - 13.2V
 0 - 26.4V
 0 - 39.6V
 0 - 52.8V
 0 - 79.2V
 0 - 105.6V
 0 - 121V
 0 - 165V
 0 - 242V
constant current output adjustment
 0 - 333A
 0 - 208A
 0 - 138.8A
 0 - 104A
 0 - 69A
 0 - 52A
 0 - 45A
 0 - 33A
 0 - 22.7A
External potentiometer
 External potentiometer control (voltage, current) can be customized
voltage current adjustable
 Adjust by knob
Analog voltage control
 Voltage, current (customizable)
remote control switch
 Default power on, high level shutdown (3V-12V) can be customized
ENVIRONMENT
Working Temp
 -20 - +60℃
Working Humidity
 -20 - 90% RH No condensation
Storage Temp., Humidity
 -40 - +85℃, 10 - 95% RH No condensation
vibration resistance
 10 - 500Hz, 2G 10 min/cycle, 60 minutes each in X, Y, and Z axes
SAFETY
Insulation resistance
 Input-to-output:100Mhms/500VDC/25℃/70%RH
Withstand Voltage
 I/P-O/P :1.2KVAC  I/P-FG:1.2KVAC  O/P-FG:0.5KVAC
Dimension
 415*222.8*172mm（L*W*H）
Weight 14.2 KG

REMARK:


1. All parameters are measured at 230VAC input, rated load and 25°C unless otherwise specified.

2. RIPPLE AND NOISE VOLTAGES ARE MEASURED AT 20UMHz bandwidth oscilloscope with 0.1 μ and 47 μ capacitance at the end of a 12-inch twisted pair cable, measured at 20MHZ bandwidth.

3. Accuracy: including setting error, linear regulation and load regulation.

4. If the input voltage is low, the output needs to be derated, please refer to the static characteristic curve for details.

  5. The start-up time is measured when the machine is cool-in, and frequent switching on and off may increase the start-up time.
