ZSN5-9K0

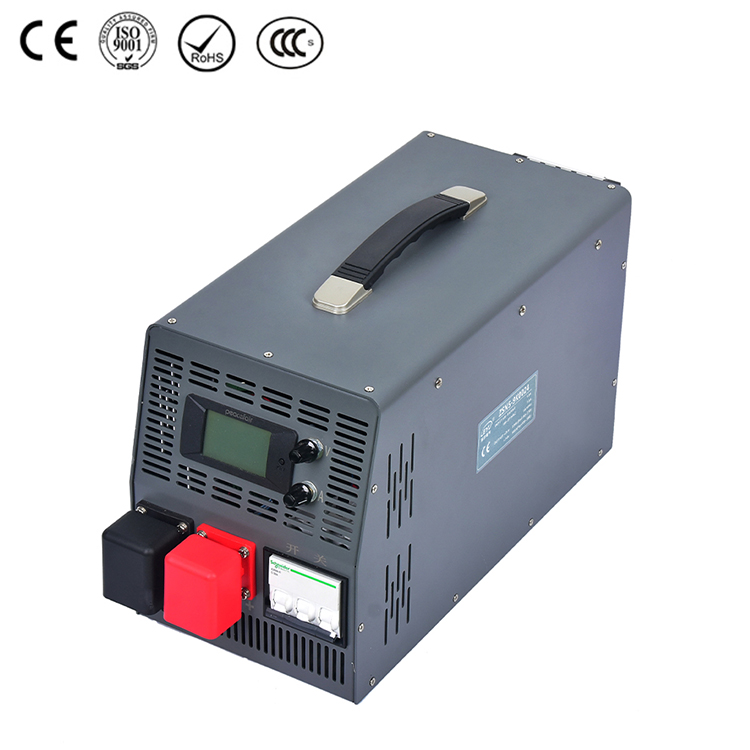

The ZSN5-9K0 is a 9KW single-output chassis-type AC to DC power supply. The entire series has an input voltage range of 95-265VAC and can provide DC output that meets most industrial requirements. Each model can be air-cooled using an internal variable-speed fan, and the operating temperature can reach up to 60°C. It has multiple built-in features such as adjustable output voltage and current, remote on/off control, 485 communication control, and auxiliary power, offering a variety of design flexibility.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
Next

Product Detail

Specification

Model
 ZSN5-9K0-24
 ZSN5-9K0-36
 ZSN5-9K0-48
 ZSN5-9K0-60
 ZSN5-9K0-110
 ZSN5-9K0-220
OUTPUT
DC Voltage
 24V 36V 48V 60V 110V 220V
Rated Current
 370A
 250A
 187.5A
 150A
 81.8A
 40.9A
Current Range
 0 - 370A
 0 - 250A
 0 - 187.5A
 0 - 150A
 0 - 81.8A
 0 - 40.9A
Rated Power
 9000W
 9000W
 9000W
 9000W
 9000W
 9000W
Ripple
 500mV
 500mV
 600mV
 600mV
 1000mV
 1500mV
Optimal Range of Constant Current
 12 - 24V
 18 - 36V
 24 - 48V
 30 - 60V
 55 - 110V
 110 - 220V
voltage accuracy
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
linear adjustment rate
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
load regulation
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
 ± 1.0%
Setup, Rise, Hold Up Time
 1500mS，700mS/230VAC(at full load）
INPUT
Voltage Range
 95-190VAC(output current 50%),195-265VAC(output current 100%)
Frequency Range
 45Hz - 65Hz
power factor
 PF≧0.99/230VAC(at full load)
Efficiency（MAX）
 90 %
 91.5 %
 92 %
 92 %
 92.5 %
 93 %
AC Current
 ＜56A
Leakage Current
 ＜3.0mA / 240VAC
PROTECTION
short circuit
 Entering constant current and voltage less than 10% of rated voltage, it shuts down and locks the output after 1 second, and resumes after restart
Over Current
 The user can set the overcurrent value to be delayed for 5 seconds to turn off the output and resume after restarting
Over voltage
 The user can set the overvoltage value to shut down the output voltage and resume after restarting
Over Temp
 The output is turned off, and it automatically resumes or restarts when the temperature drops
FUNCTION
output voltage adjustment
 0 - 26.4V
 0 - 39.6V
 0 - 52.8V
 0 - 66V
 0 - 121V
 0 - 242V
constant current output adjustment
 0 - 370A
 0 - 250A
 0 - 187.5A
 0 - 150A
 0 - 81.8A
 0 - 40.9A
485 Communications
 MODBUS communication protocol
Isolate auxiliary power supplies
 12V 0.5A  (Customization required)
Output remote control switch
 By default, it will be powered on and powered off at a high level（5V-12V） (Customization required)
Alarm signal output
 Power Normal Signal (Dry Contact≦ 36V, 0.1A)(Customization required)
ENVIRONMENT
Working Temp
 -20 - +60℃
Working
 -20 - 90% RH No condensation
Humidity
Storage Temp., Humidity
 -40 - +85℃, 10 - 95% RH No condensation
vibration resistance
 10 - 500Hz, 2G 10 min/cycle, 60 minutes each in X, Y, and Z axes
SAFETY
Insulation resistance
 Input-to-output:100Mhms/500VDC/25℃/70%RH
Withstand Voltage
 I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Dimension
 432*179*242mm（L*W*H）
Weight 12.5 KG

REMARK:


1. All parameters are measured at 230VAC input, rated load and 25°C unless otherwise specified.

2. RIPPLE AND NOISE VOLTAGES ARE MEASURED AT 20UMHz bandwidth oscilloscope with 0.1 μ and 47 μ capacitance at the end of a 12-inch twisted pair cable, measured at 20MHZ bandwidth.

3. Accuracy: including setting error, linear regulation and load regulation.

4. If the input voltage is low, the output needs to be derated, please refer to the static characteristic curve for details.

5. The start-up time is measured when the machine is cool-in, and frequent switching on and off may increase the start-up time.



Online Inquiry
