22mm Silver Button Switch
Online Service
Product Detail

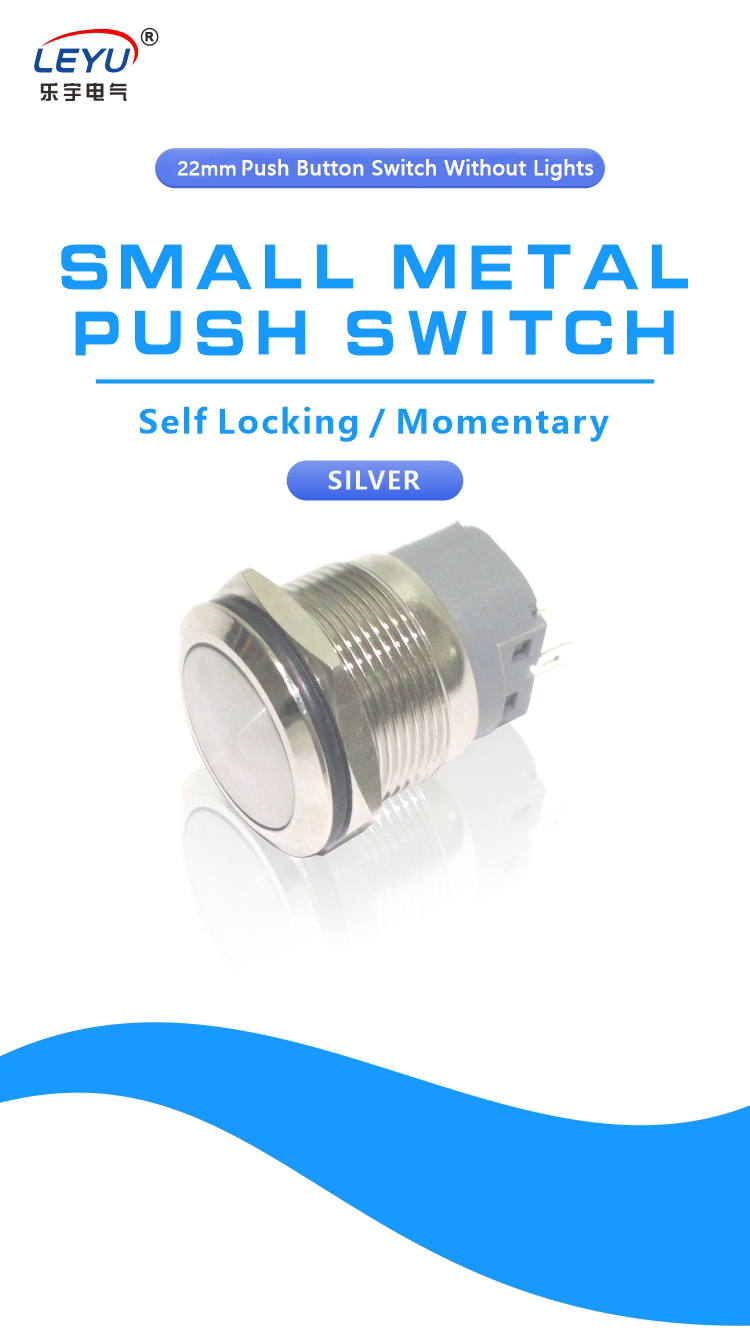

22mm Silver Button Switch
1.Ultra short length , only 33.4mm.

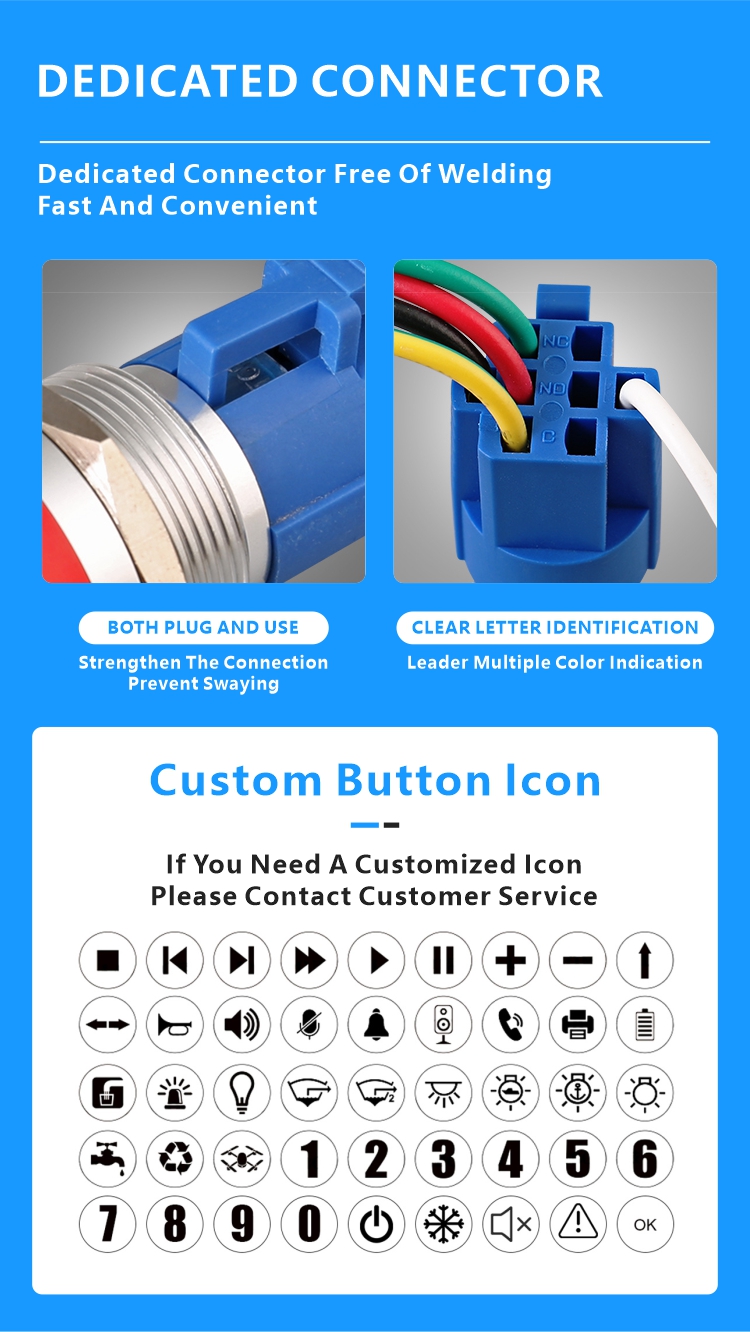

2.Optiznal connector,To ensure contact performance,reduce waste of labor;
3.With both flat and spherical design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP65;
6.Mechanical life: up to 600,000times,it can work at -20℃~55℃;
7.It has applied of many patents ,RoHS,CE approve
|
Product Name |
Push Button Switch |
|
Model |
B |
|
Mounting Hole |
22 mm |
|
Operation Type |

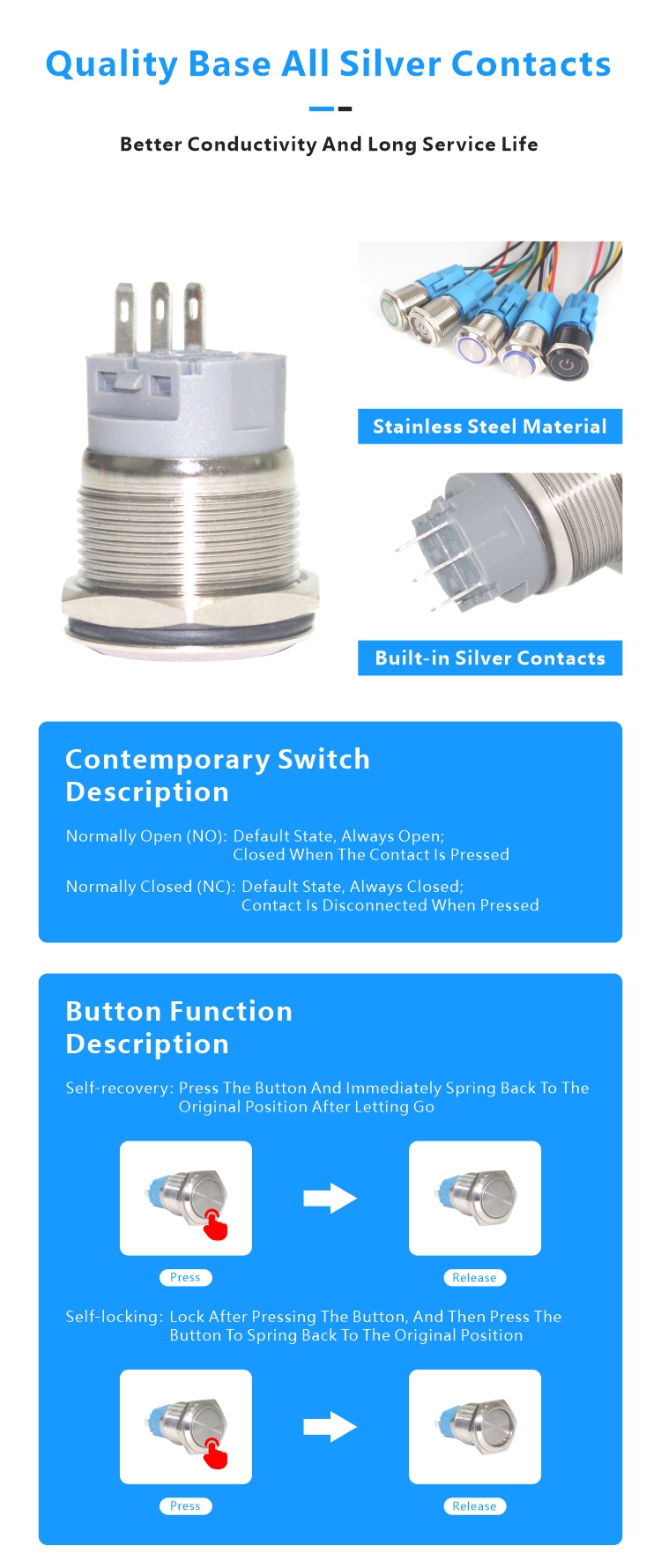

Self-locking & reset |
|
Input voltage range |
(3-6V) 12V 24V |
|

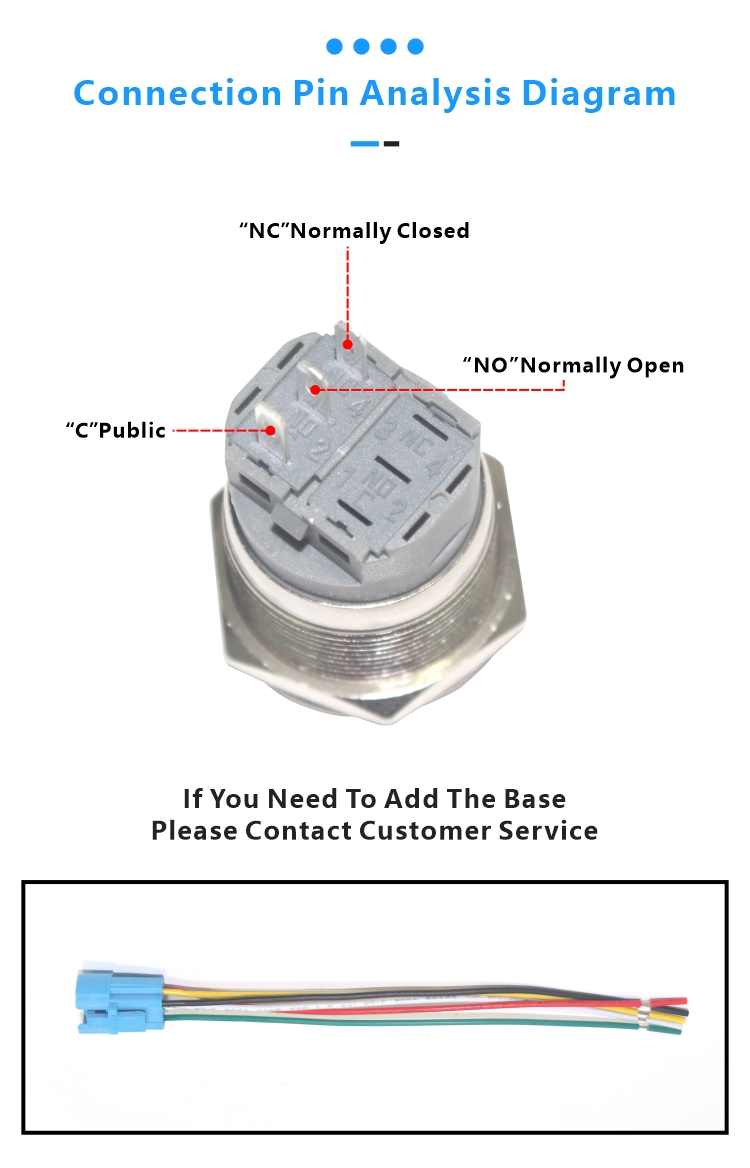

Switch Combination |
1NO 1NC |
|

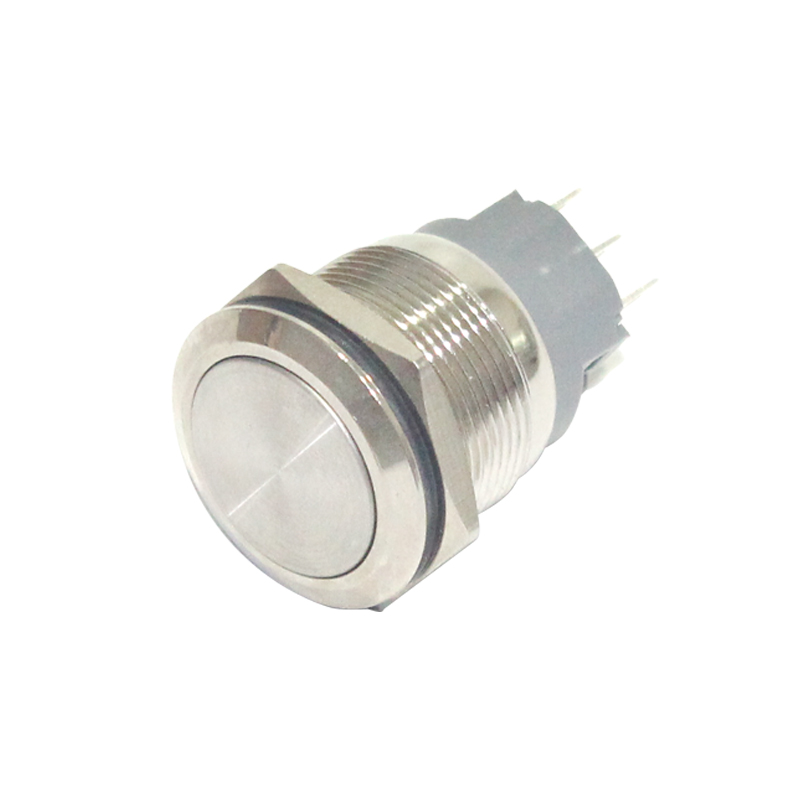

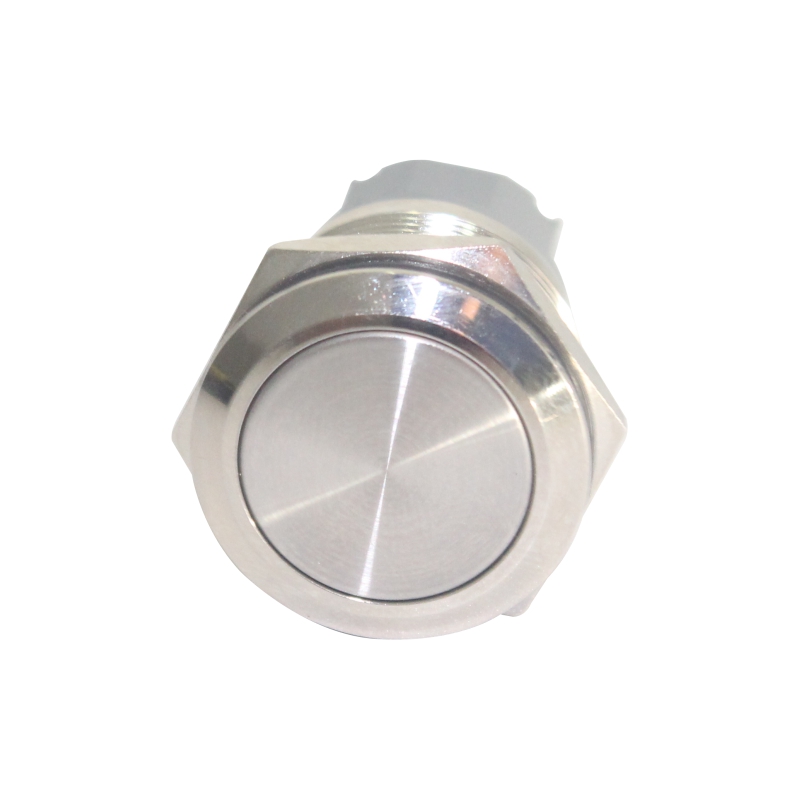

Head Type |
Flat round head |
|

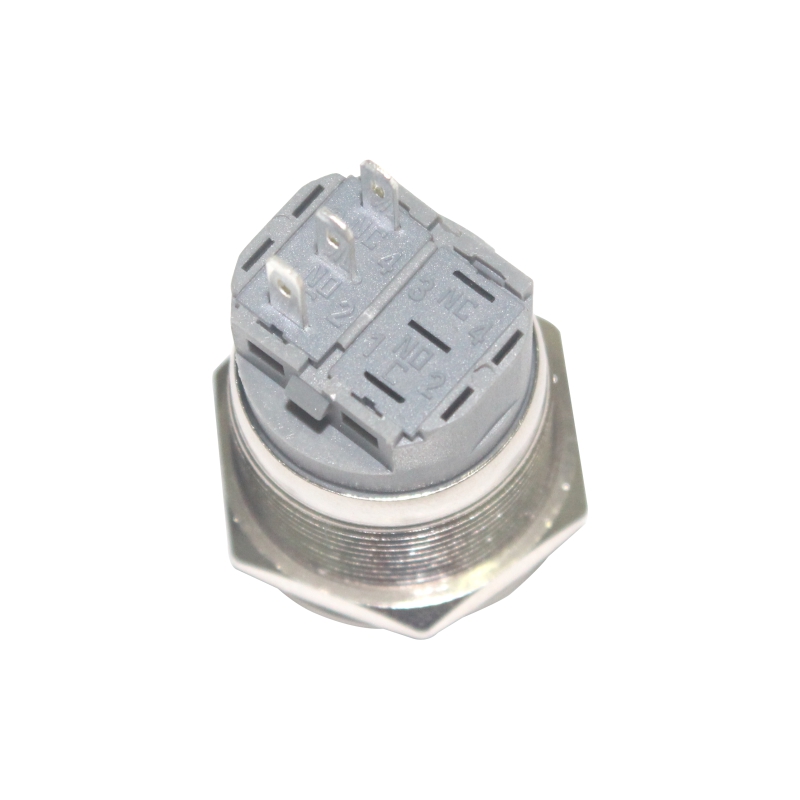

Terminal type |
4 5 6 Pin Terminals |
|
Illuminated or not |
NO |
|
Housing Color |
Silver |
|
Material |
Alloy\ Nickel plated brass\stainless steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Insulation Resistance |
1000MΩ Min |
|
Operating Temperature |
-20°C ~+55°C |
|
Wire Soldering |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Gasket |
|
More size |
7MM 8MM 12MM 16MM 19MM 22MM 25MM 28MM 30MM 44MM |
|
The number of life |
Over 50000 times |
|
Single gross weight: |
0.022 kg |
