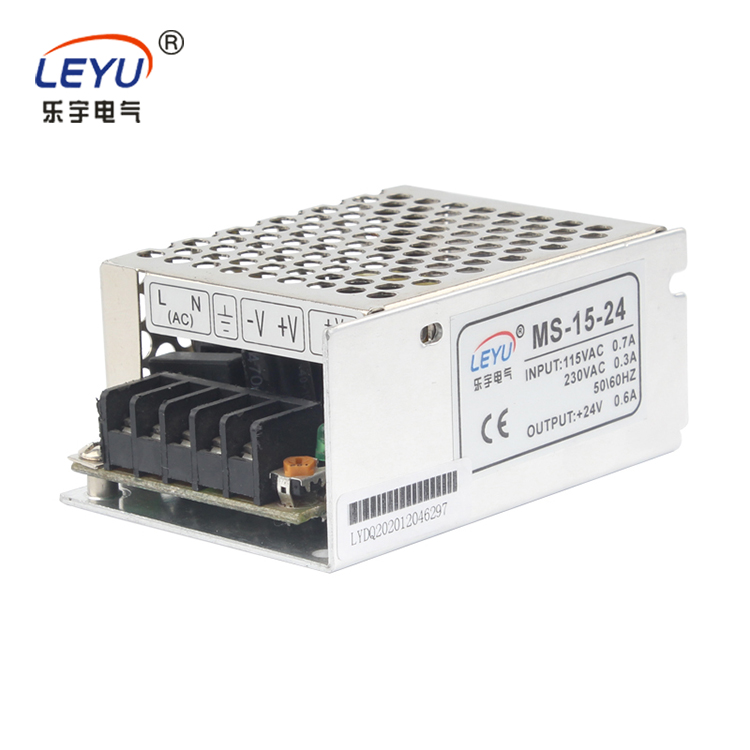

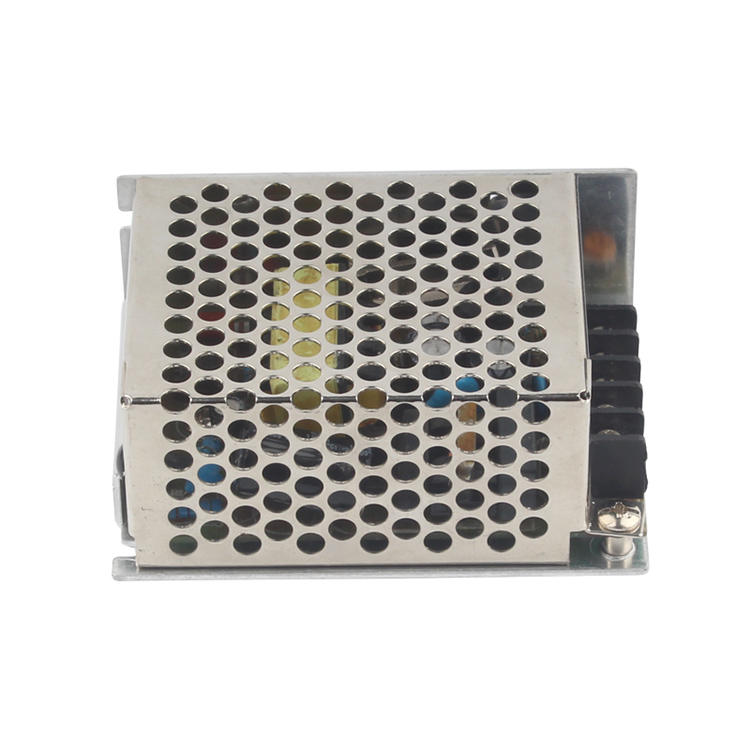

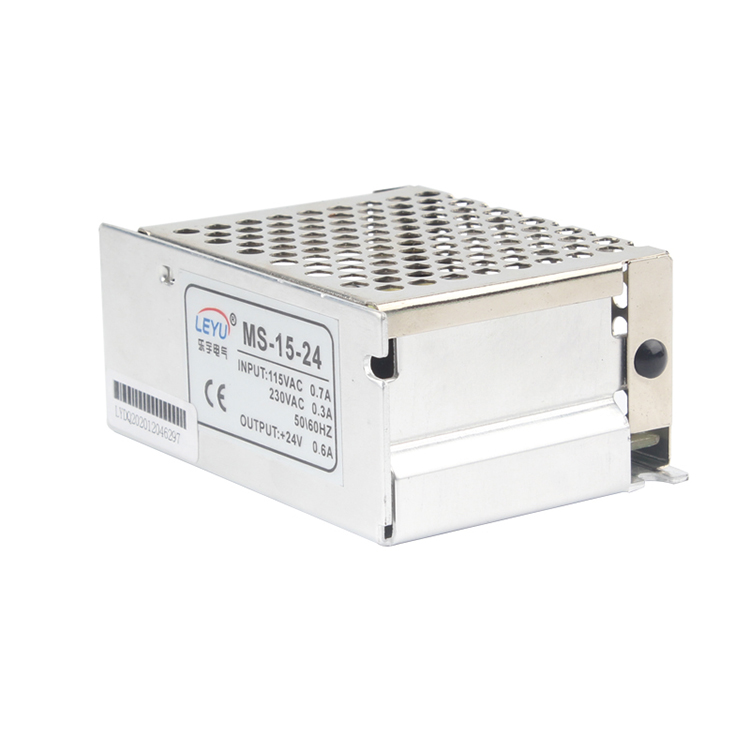

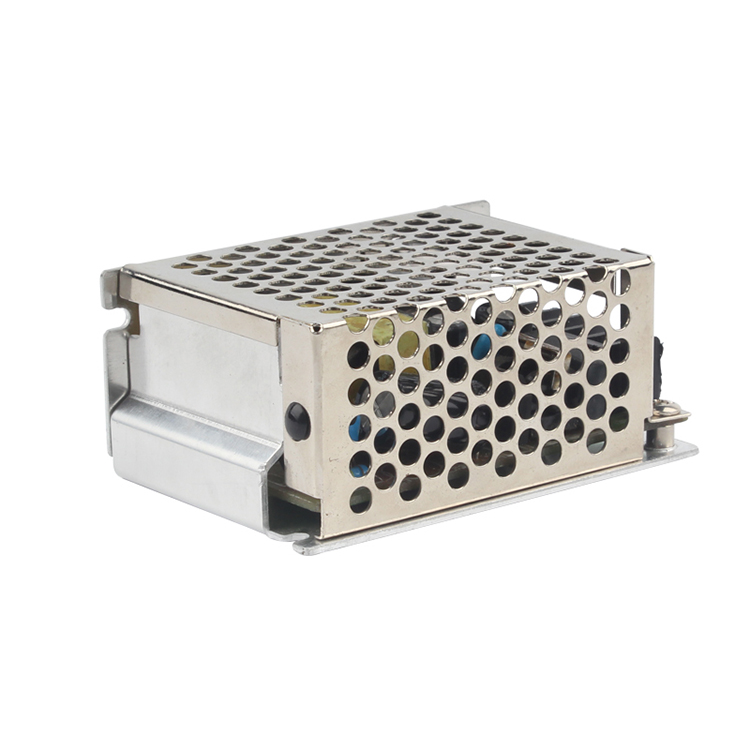

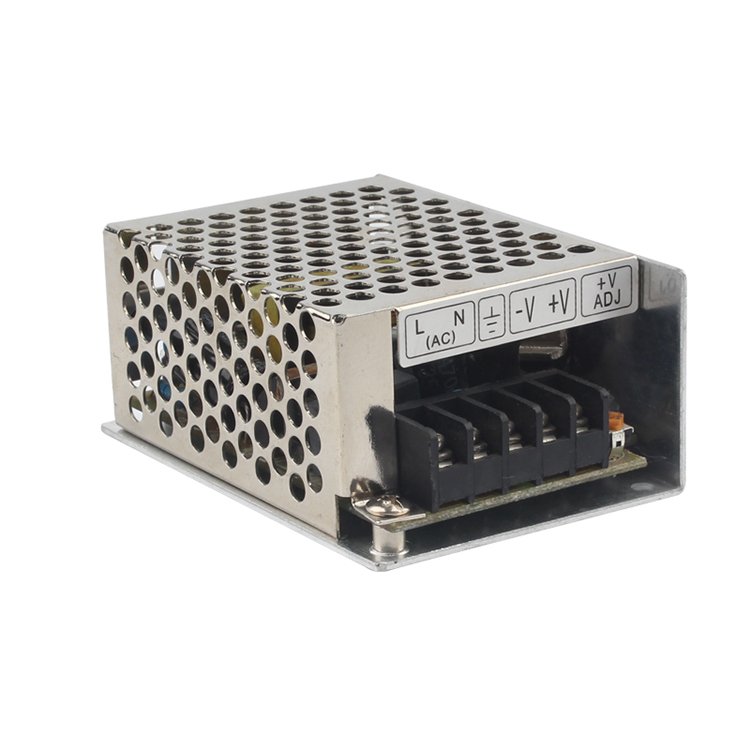

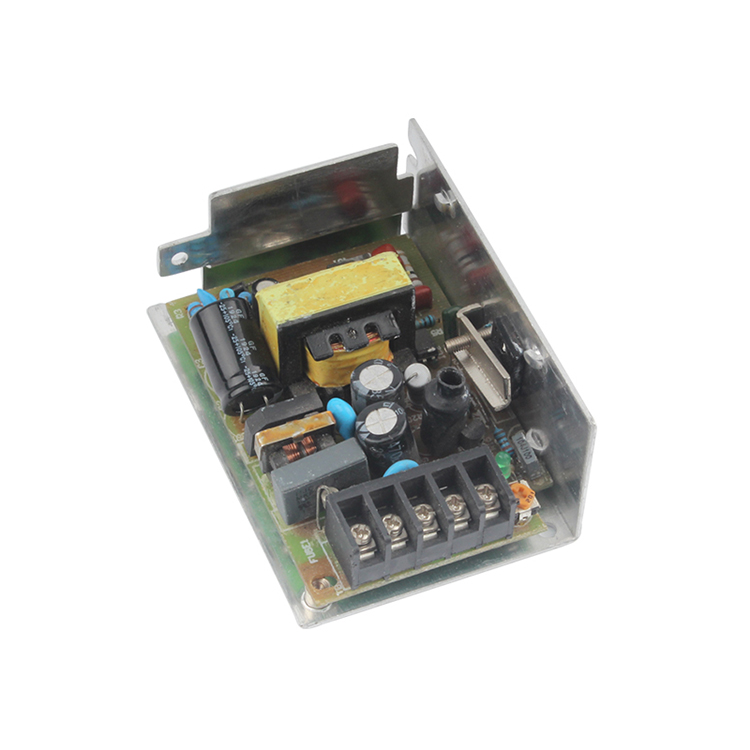

15W Single Output Switching Power Supply MS-15 series
Low
price and high reliability
105℃ output capacitor
AC input power suitable for the world

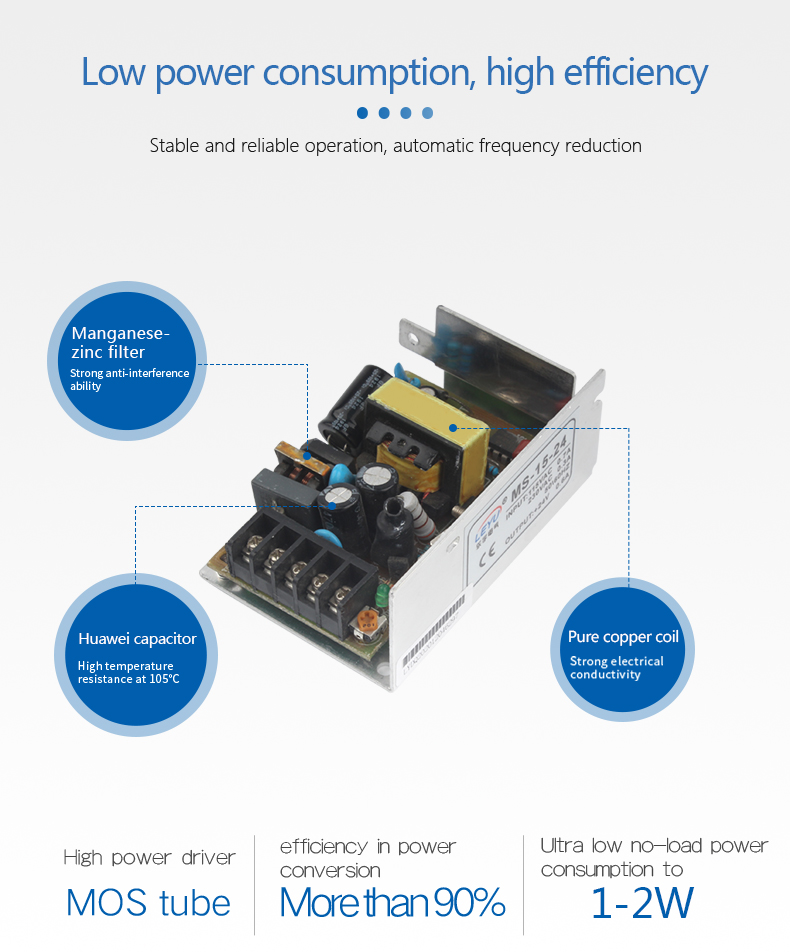

High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively

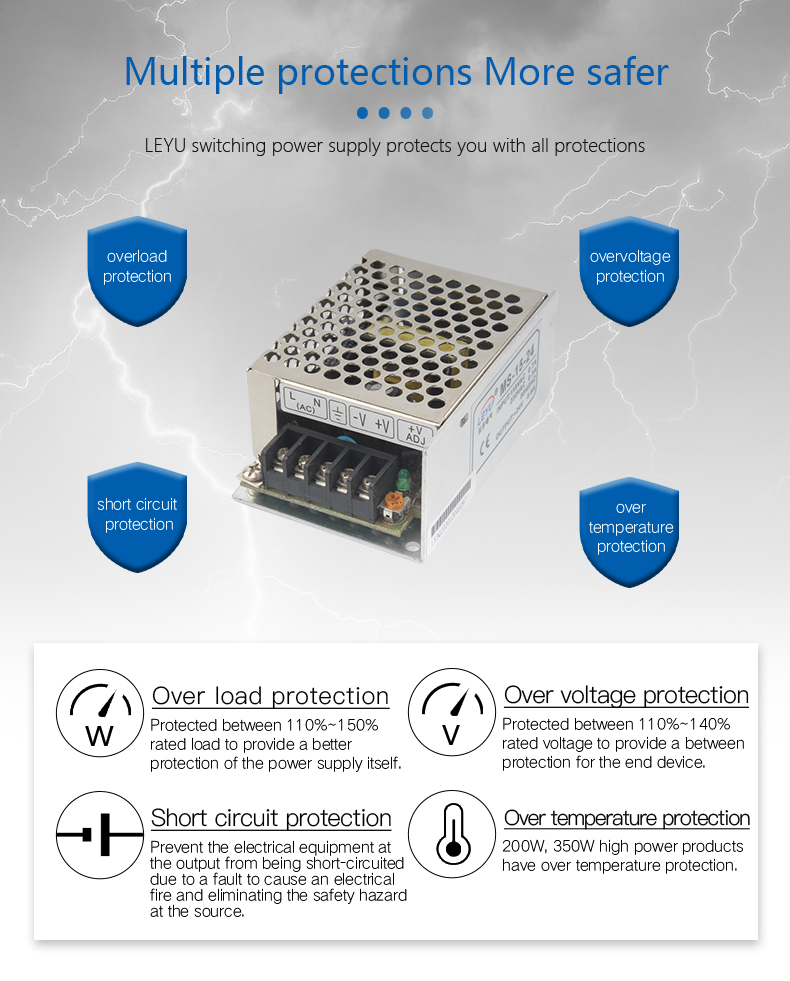

With Short-circuit and overload protection

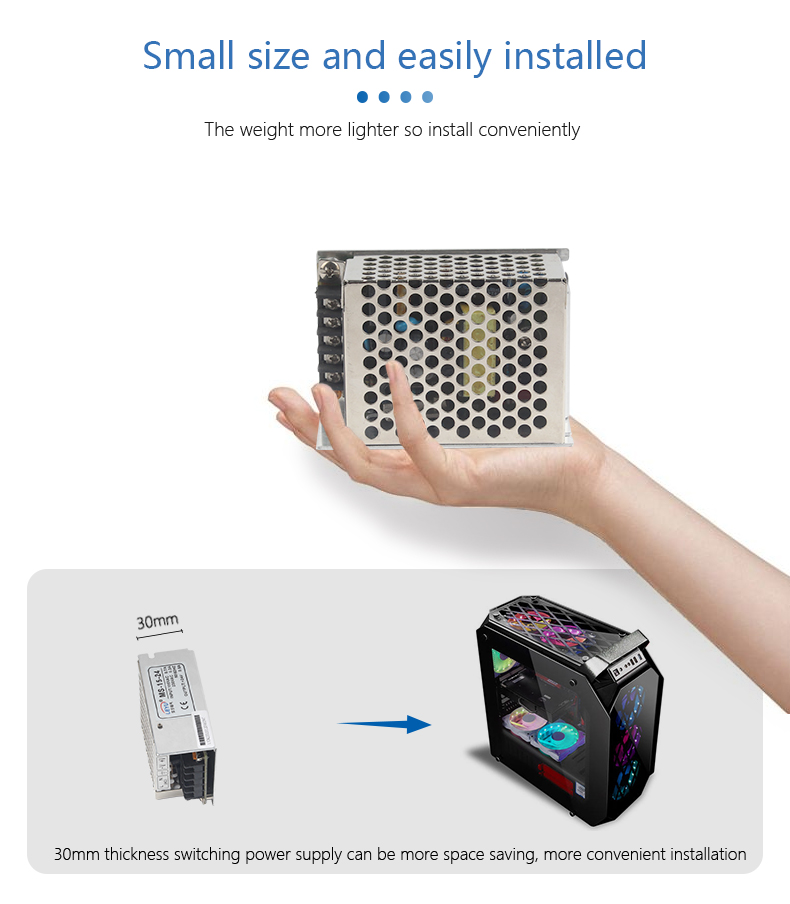

Compact size, light weight
100% full-load burning test
2 year warranty
|

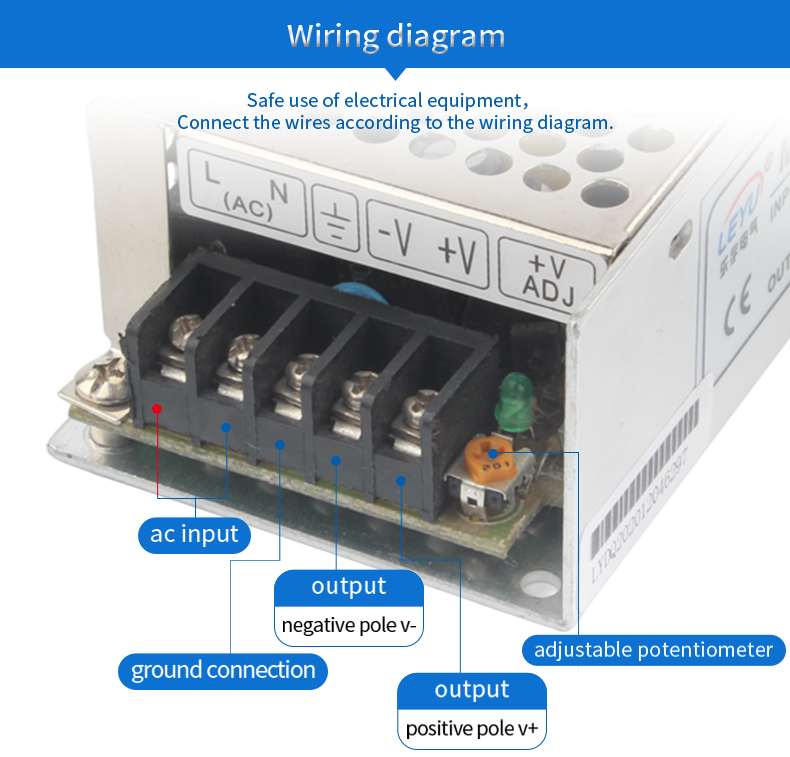

SPECIFICATIONS |
|||
|
OUTPUT |
|
||
|
Model |
MS-15-5 |
MS-15-12 |
MS-15-24 |
|
DC Voltage |
5V |
12V |
24V |
|
Rated Current |
3A |
1.3A |
0.7A |
|
Current Range |
0-3A |
0-1.3A |
0-0.7A |
|
Rated Power |
15W |
15.6W |
16.8W |
|
Ripple & Noise |
50mVp-p |
50mVp-p |
100mVp-p |
|
Voltage Adj. Range |
10,-5% |
10% |
±10% |
|
Voltage Tolerance |
±2% |
±1% |
±1% |
|
Inlet Stability |
±0.5% |
±0.5% |
±0.5% |
|
Load Stability |
±1% |
±0.5% |
±0.5% |
|
Setup,Rise,Hold Up Time |
200s,100ms,30msat full load |
||
|
|
|
||
|
INPUT |
|
||
|
Voltage Range |
100~240VAC 47-63Hz;240~370VDC |
||
|
AC Current |
0.5A/115V 0.25A/230V |
||
|
Efficiency |
65% |
68% |
72% |
|
Inrush Current |
Cold-start current 15A/115V 30A/230V |
||
|
Leakage Current |
<0.5mA/240VAC |
||
|
|
|
||
|
PROTECTION |
|
||
|
Over Load |
105%~150% |
||
|
Protection type:Foldback current limiting Reset: auto recovery |
|||
|
Over Voltage |
………… |
||
|
Over Temp. |
………… |
||
|
|
|
||
|
ENVIRONMENT |
|
||
|
Working Temp., Humidity |
-10℃~+60℃(Refer to output derating curve), 20%~90%RH |
||
|
Storage Temp., Humidity |
-20℃~+85℃,10%~95%RH |
||
|
Temp. Coefficient |
±0.02%/℃(0~50%) |
||
|
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,each axes |
||
|
|
|
||
|
SAFETY |
|
||
|
Withstand Voltage |
I/P-O/P: 1.5KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC |
||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
||
|
|
|
||
|
STANDARD |
|
||
|
Safety Standard |
Meet UL1012 requirement(Not apply for the mark) |
||
|
EMC Standard |
Meet FCC PART15 J Conduction class B |
||
|
|
|
||
|
OTHERS |
|
||
|
Dimension |
85*58*38mm(L*W*H)
|
||
|
Weight |
0.2Kg |
||
|
|
|
||
|
NOTE |
|
||
|
1.The testing condition for the parameter above is:230VAC input,rated load,25℃ 70% RH.Humidity. 2.Error.include the setting error,line stability and load stability. 3.Wave test:adopting “A12”double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. |
|||
