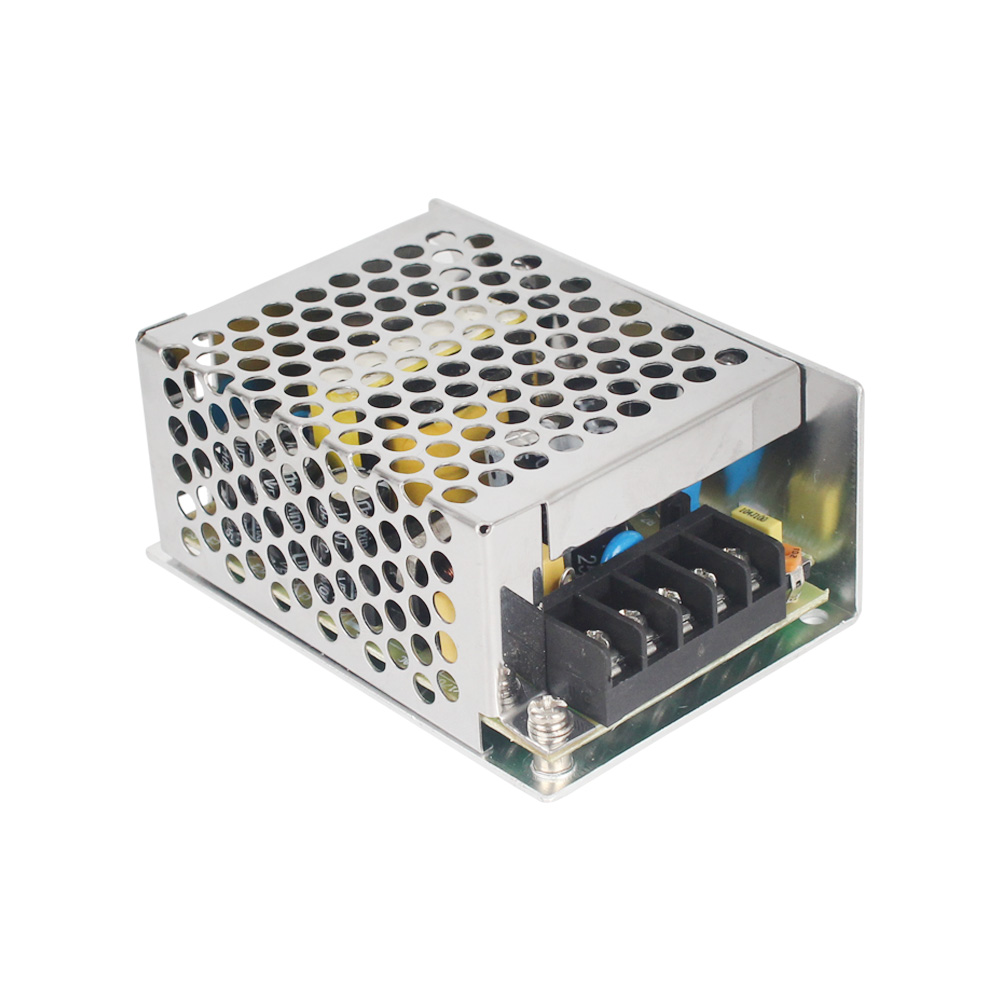

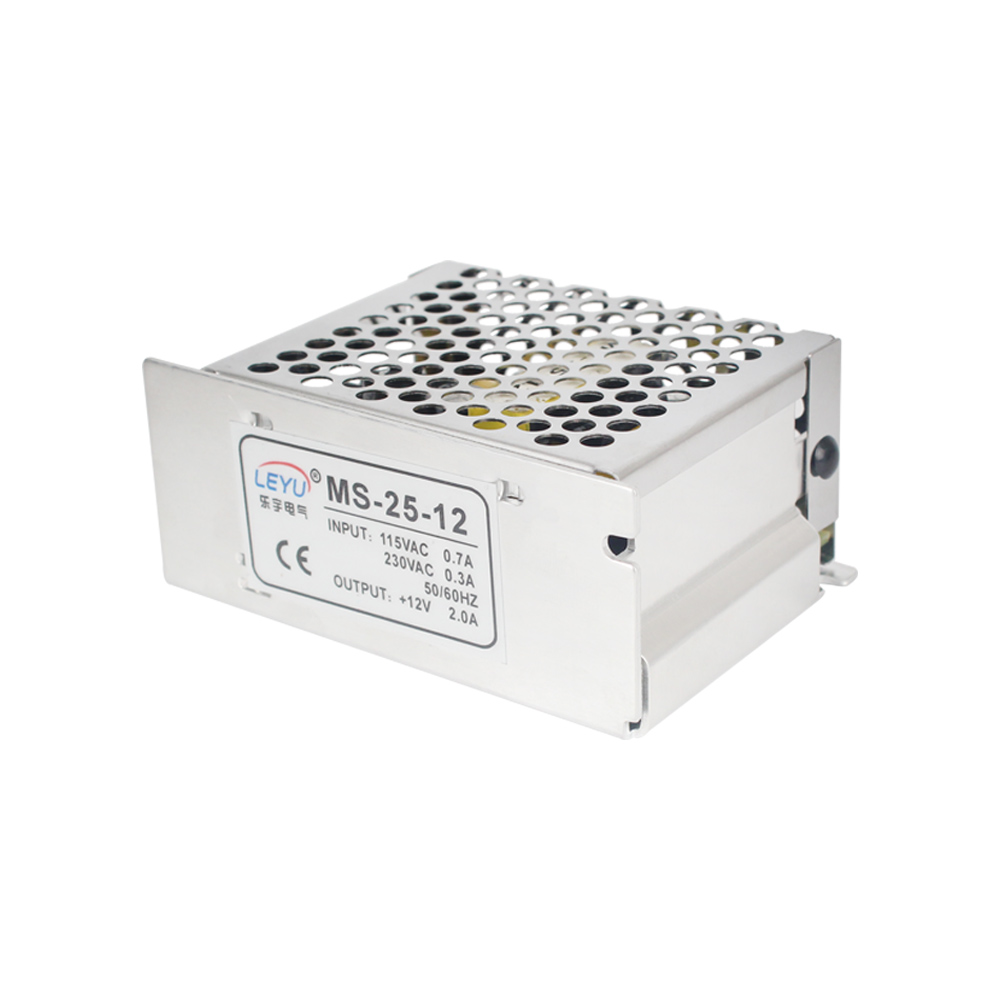

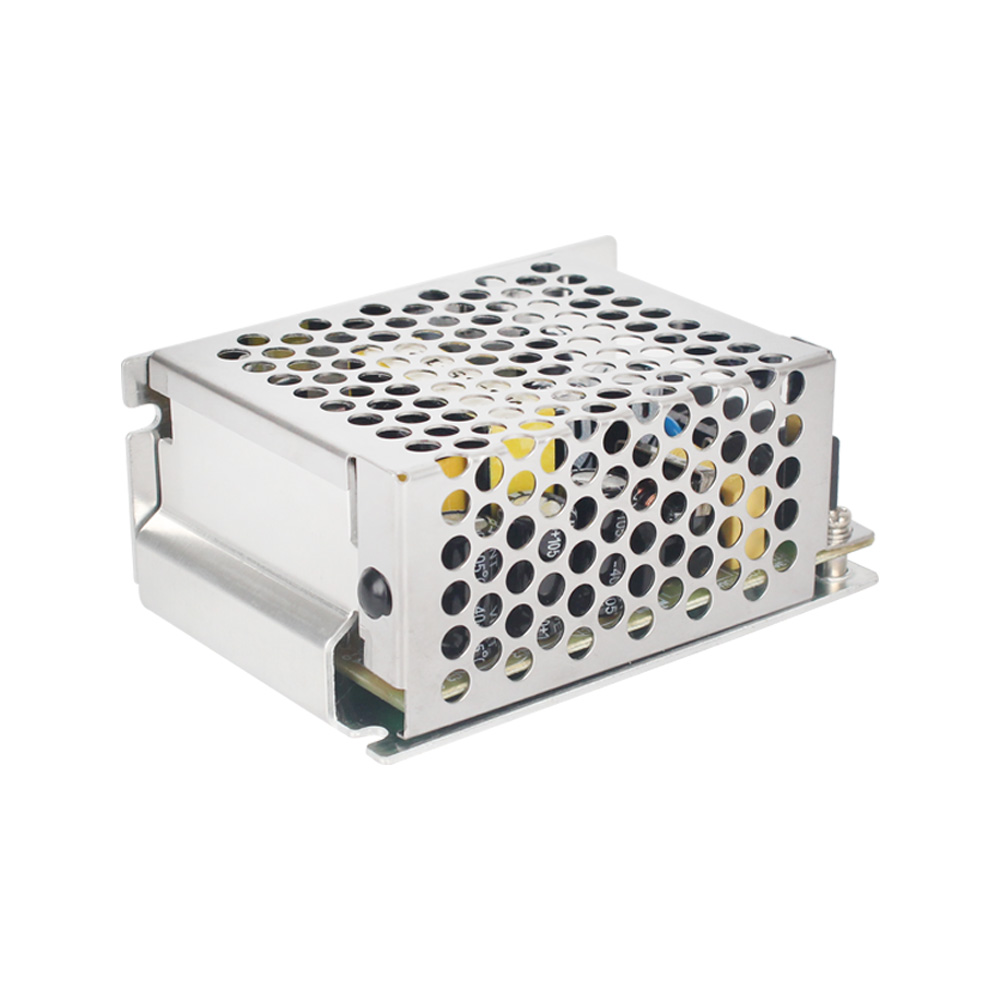

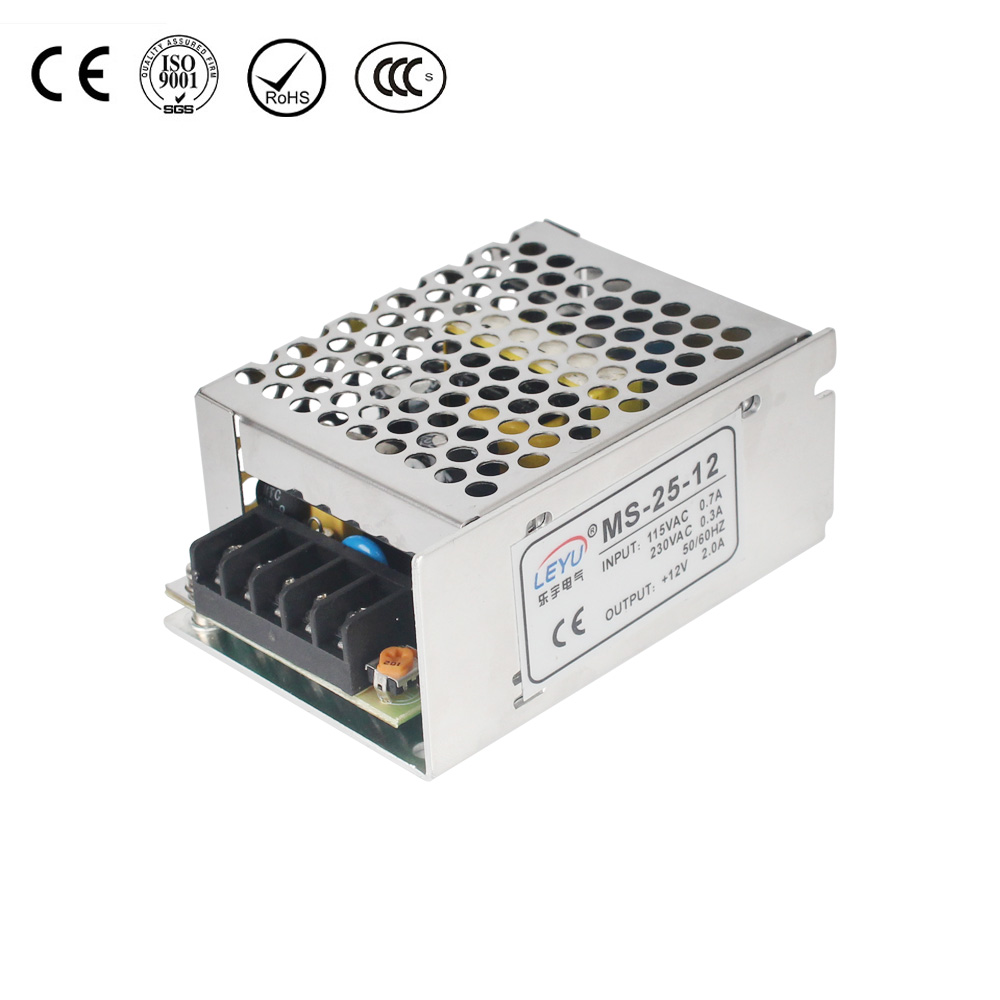

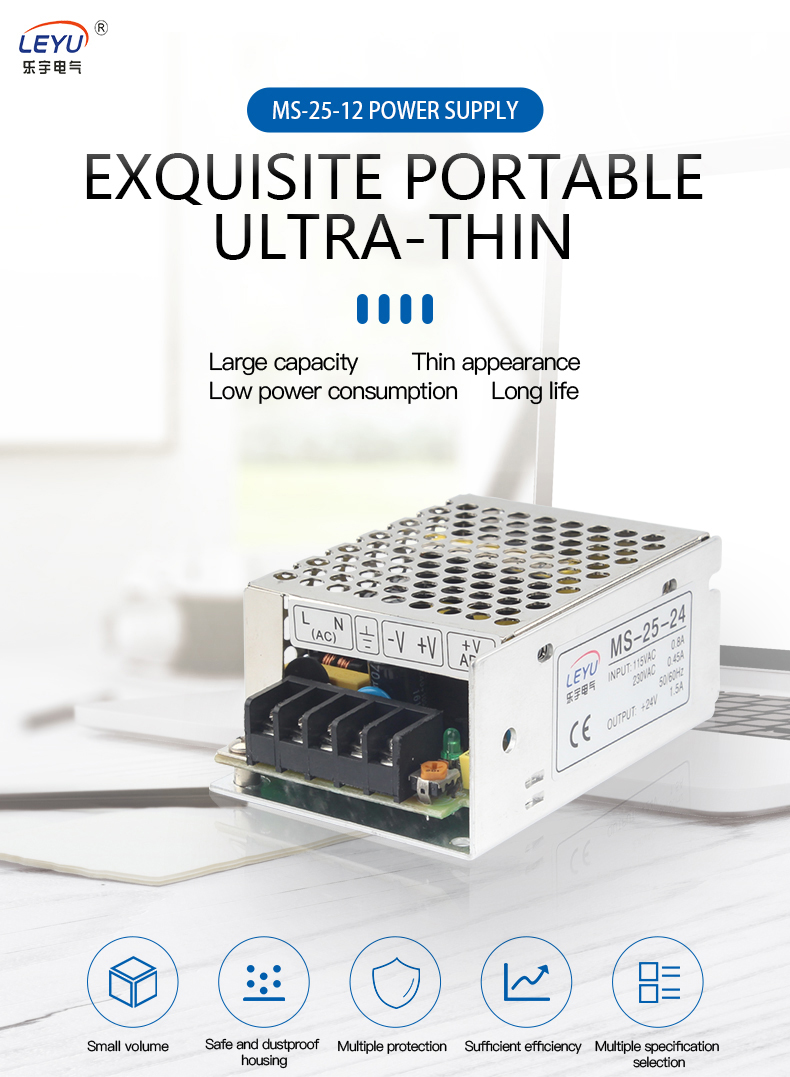

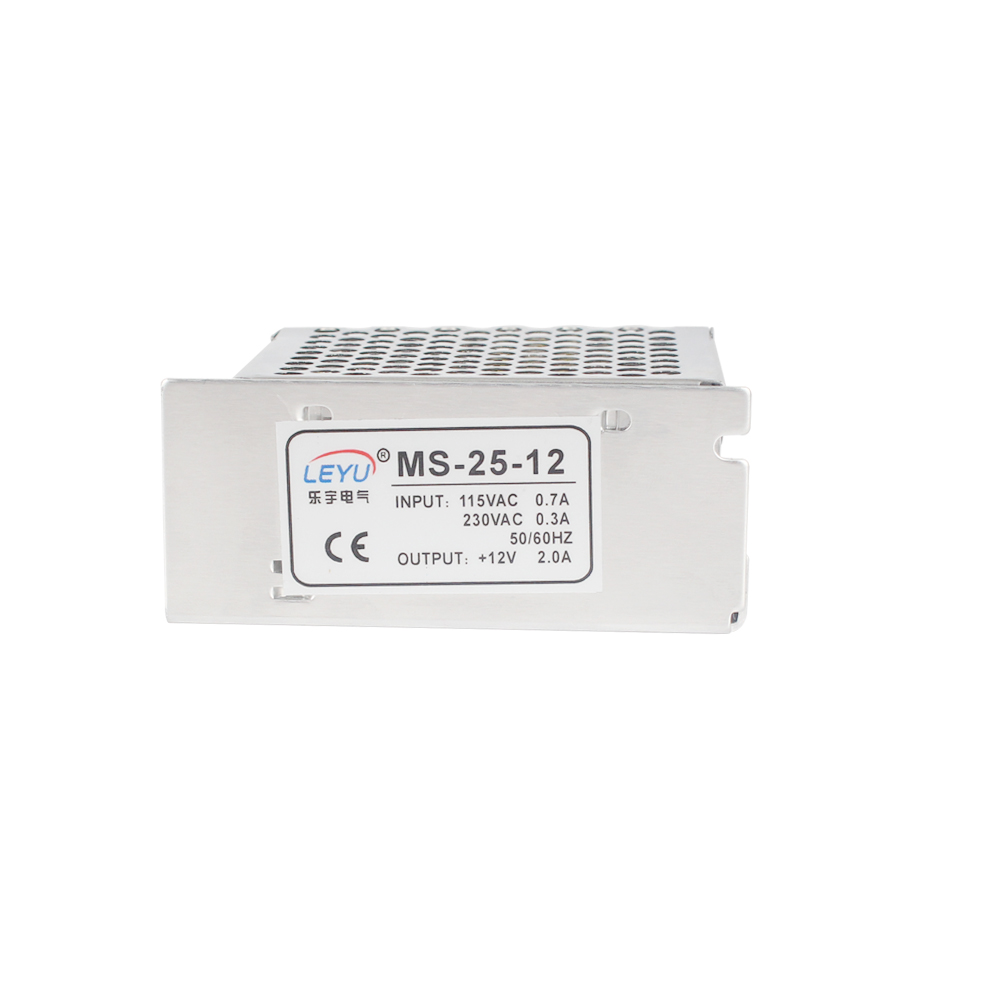

MS-25
105℃ output capacitor
AC input power suitable for the world

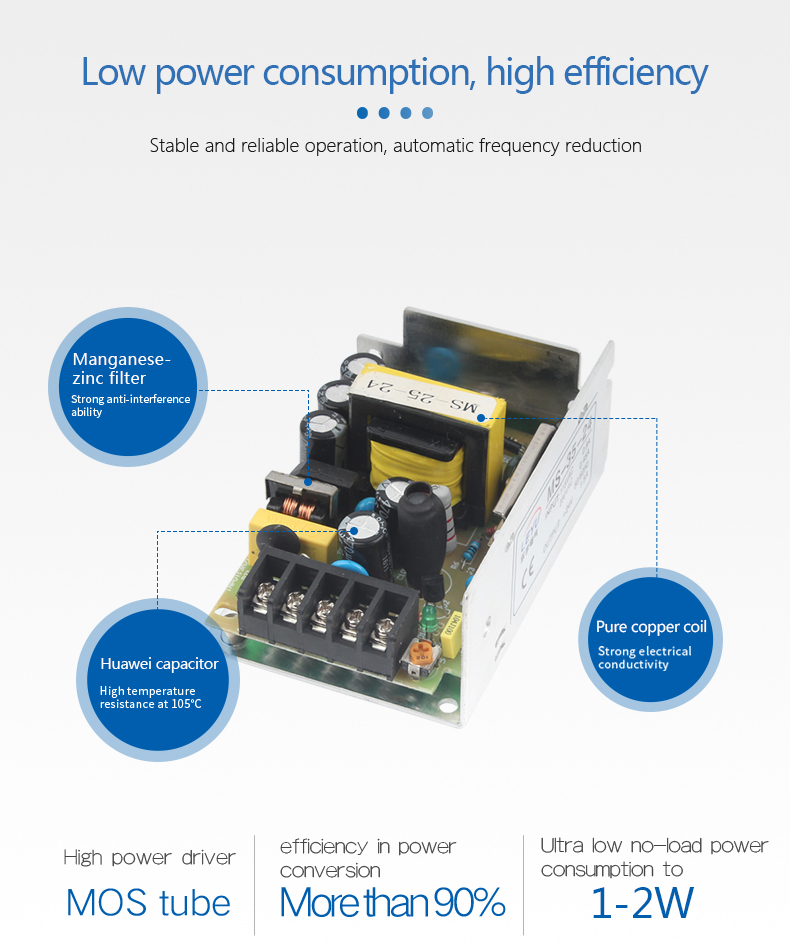

High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively

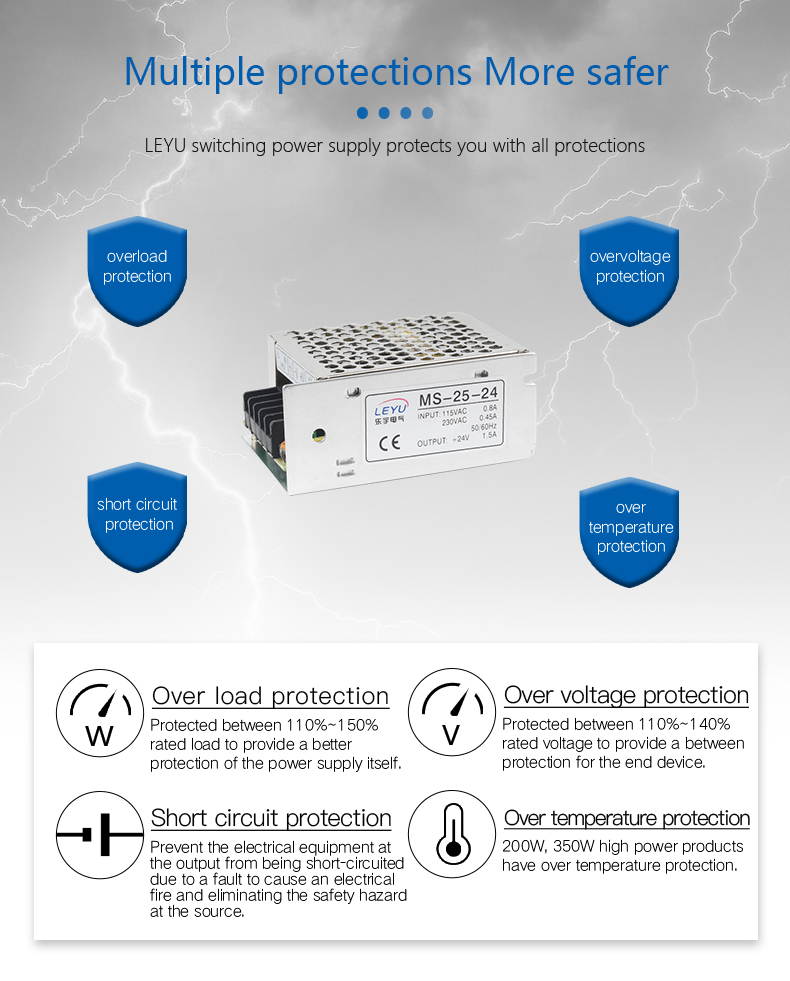

With Short-circuit and overload protection

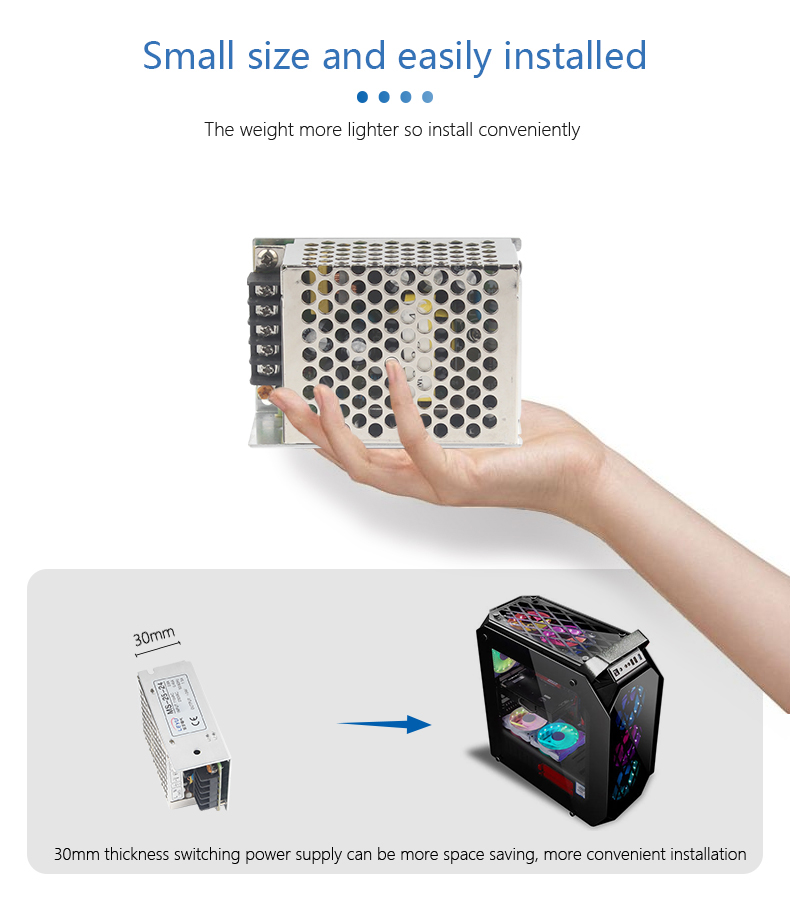

Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave
2 years warranty
Product Detail
SPECIFICATIONS
| OUTPUT |
|
|
|
|
|
Model |
MS-25-5 |
MS-25-12 |
MS-25-15 |
MS-25-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 5A | 2.1A | 1.7A | 1.1A |
| Current Range | 0-5A | 0-2.1A | 0-1.7A | 0-1.1A |
| Rated Power | 25W | 25.2W | 25.5W | 26.4W |
| Ripple & Noise | 50mVp-p | 100mVp-p |
100mVp-p |
100mVp-p |
| Voltage Adj. Range | ±10% |
±10% |
±10% |
±10% |
| Voltage Tolerance | ±2% | ±1% |
±1% |
±1% |
| Inlet Stability | ±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Load Stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
| Setup, Rise, Hold Up Time | 800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC | |||
| INPUT |
|
|||
| Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||
| AC Current | 0.7A/115V 0.30A/230V | |||
| Efficiency |
72%/115VAC |
76%/115VAC |
77%/115VAC |
80%/115VAC |
| Inrush Current | Cold-start current 15A/115V 30A/230V | |||
| Leakage Current | <0.75mA/240VAC | |||
| PROTECTION |
|
|||
| Over Load | 105%~150% | |||
| Protection type: plusing hiccup shutdown Reset: auto recovery | ||||
| ENVIRONMENT |
|
|||
| Working Temp., Humidity | -10℃~+60℃(Refer to output derating curve), 20%~90%RH | |||
| Storage Temp., Humidity | -20℃~+85℃,10%~95%RH | |||
| Temp. Coefficient | +-0.03%/°C(0~50°C) | |||
| Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes | |||
| SAFETY |
|
|||
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |||
| STANDARD |
|
|||
| Safety Standard | UL1012TUV EN60950(IEC950,UL1950)Approved | |||
| EMC Standard | CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification | |||
| OTHERS |
|
|||
| Dimension |
85*58*38mm(L*W*H) |
|||
|
Weight |
0.2Kg | |||
