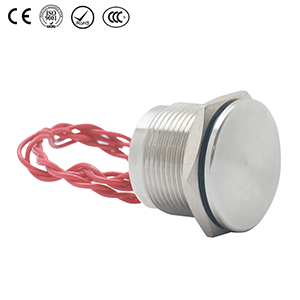

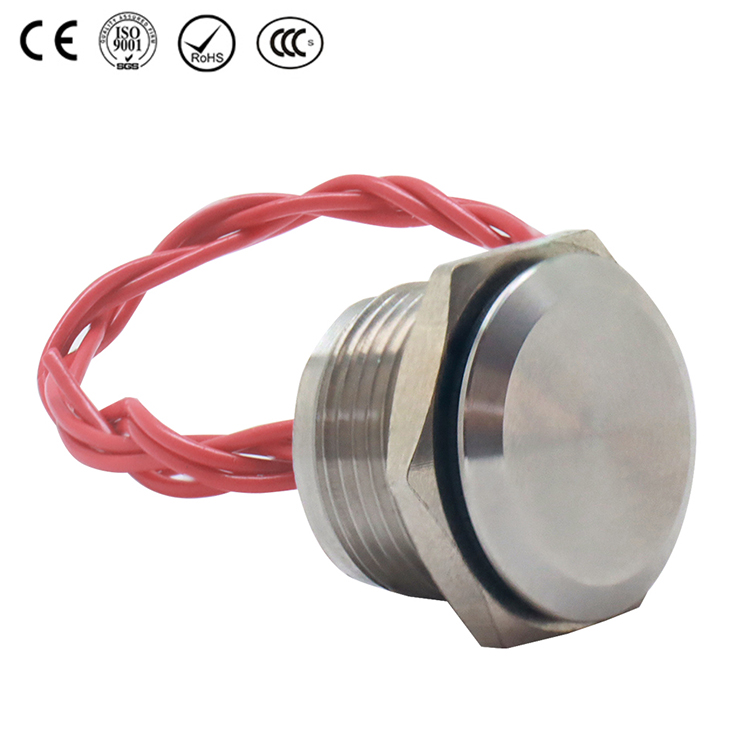

Piezo Switch 19mm

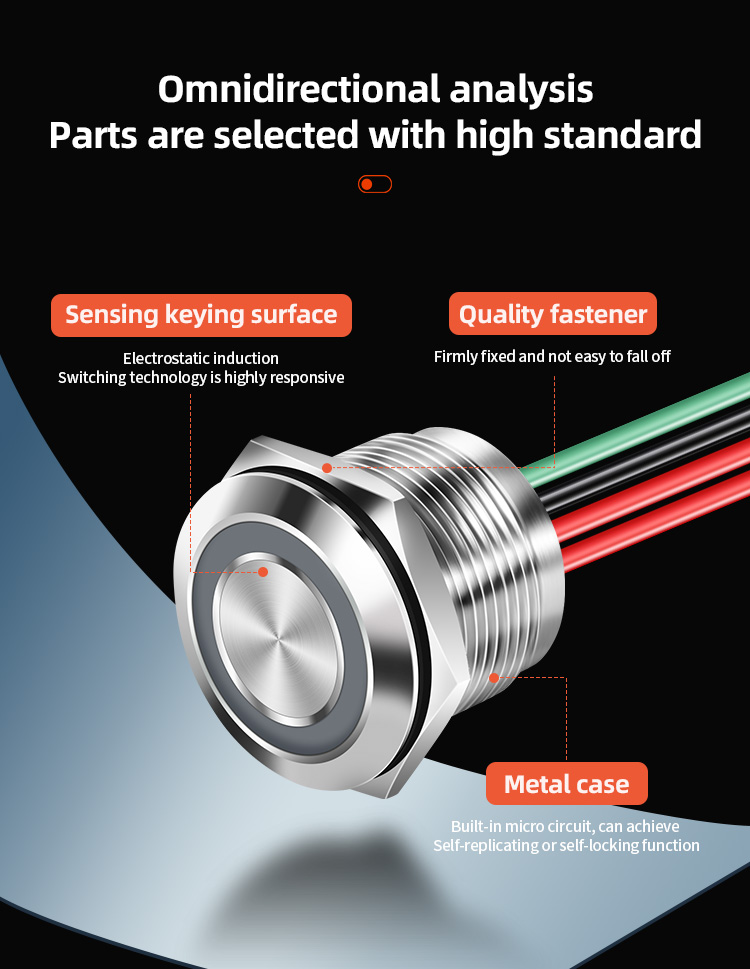

A piezoelectric switch is a device that uses the piezoelectric effect to achieve switching functions. It has the advantages of being small in size, fast in response, and long in lifespan, and is widely used in various electronic devices and sensors.
Features:
. A variety of styles to choose from:Flat/Chamfer/Concave
. Glued Package IP68 waterproof pure copper wire,good
conductivity
. A variety of styles to choose from:Flat/Chamfer/Concave
. Glued Package IP68 waterproof pure copper wire,good
conductivity
. Waterproof,dustproof,flame retardant head waterproof and
dustproof flame retardant plastic parts

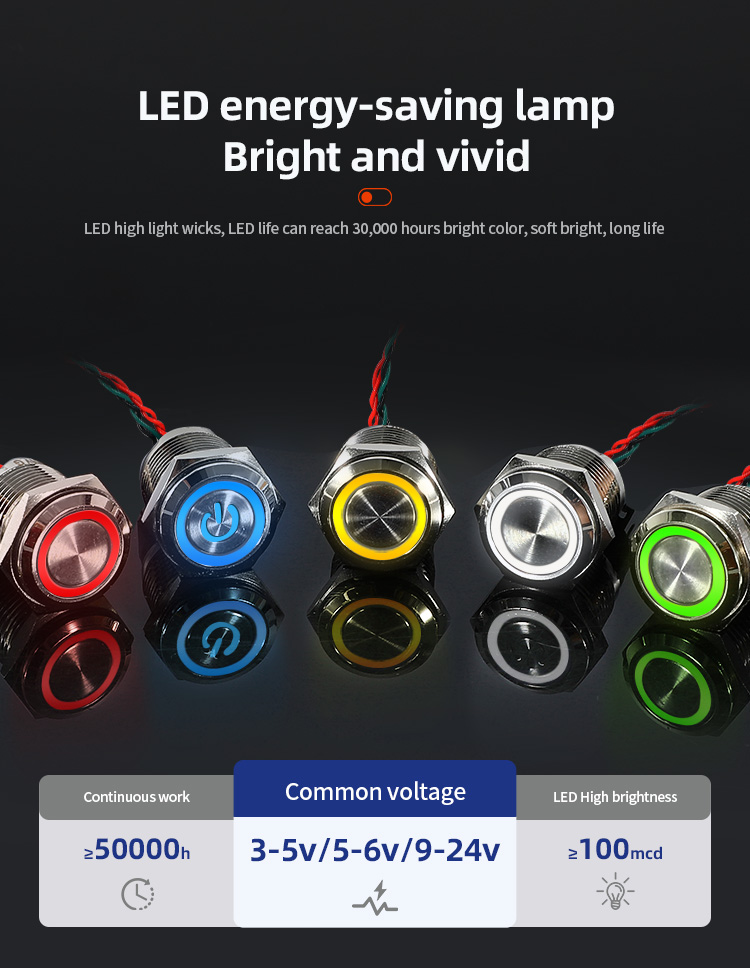

. LED high light wicks,LED life can reach 30,000 hours
bright color,soft bright,long life
. The LED indicators are available in a variety of colors
Online Service
Product Detail









Specifications
|
Product Name |
IP68 Waterproof Piezo Switch |
|
Model |
ZMPS19A-H10M ZMPS19A-H10M/D ZMPS19A-D10M/R |
|
Mounting Hole Size |
19mm |
|

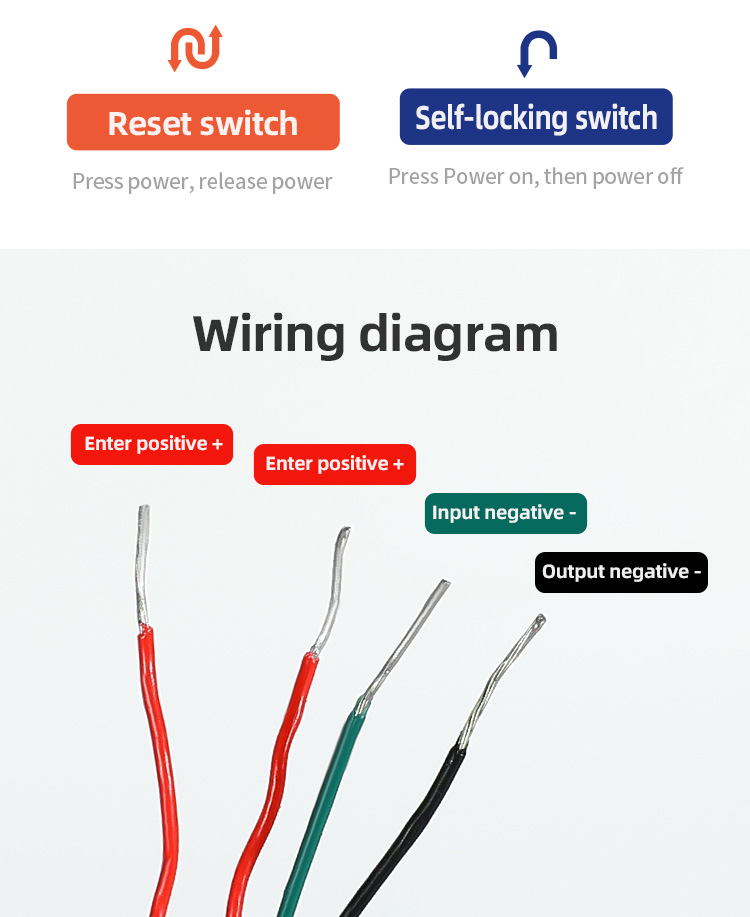

Operation Types |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat/Chamfer/Concave/High Flat |
|
Terminal type |
Wired lead |
|
Illuminated or not |
Yes or NO |
|
Led Voltage |
3~24V |
|
Led Color |
Blue (Red,Green, Yellow,White,Orange,Purple available) |
|
Illuminated Type |
Ring/Dot |
|

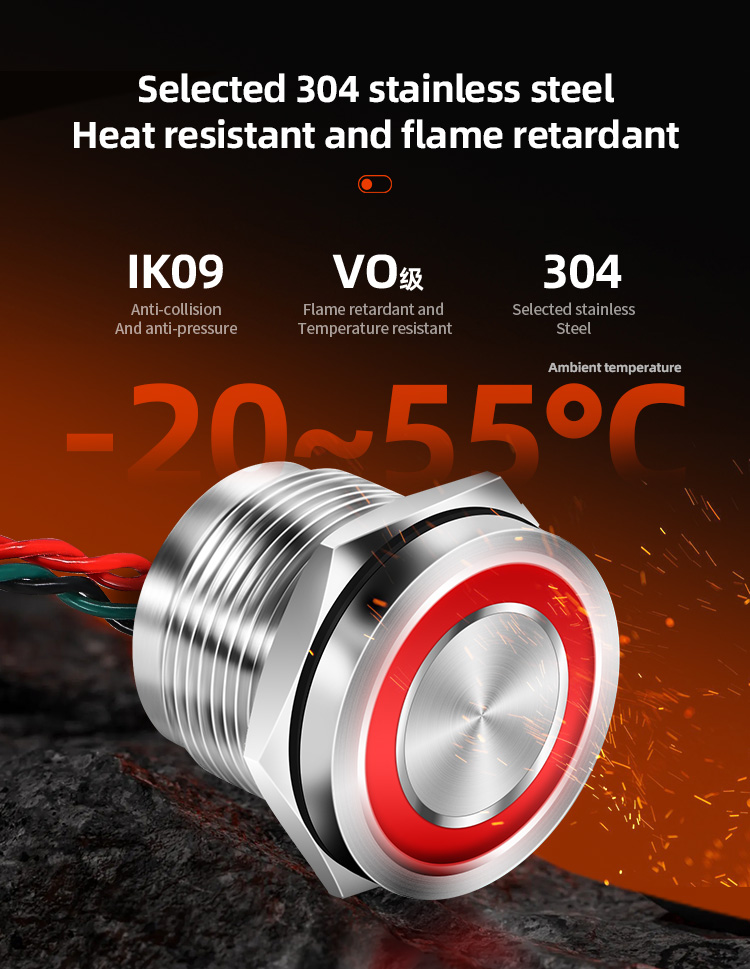

Enclosure Material |
Stainless Steel/ Aluminum |
|
Rated Current |
2A |
|
Contact Resistance |
50 mΩ max |
|
Operating Force |
6 to 15N |
|
Dielectric Intensity |
2000VAC |
|
Operating Temperature |
-40°C to +75C |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|

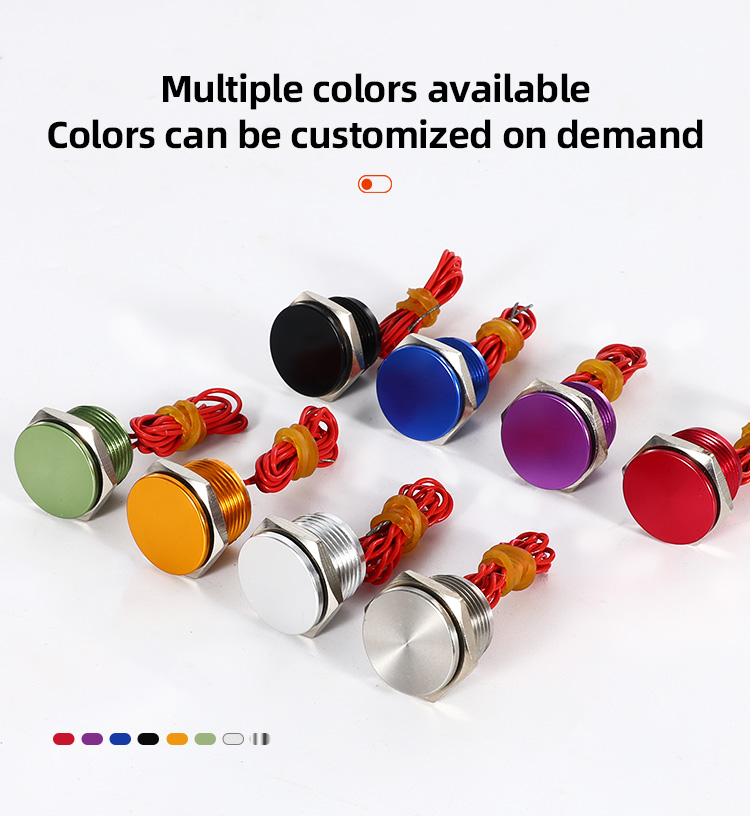

Customized symbol,colored housing or Connector |
Acceptable and with fast shipping |
|
Choose 2/3 colors from two-color/three-color light combination (above colors) |
|
