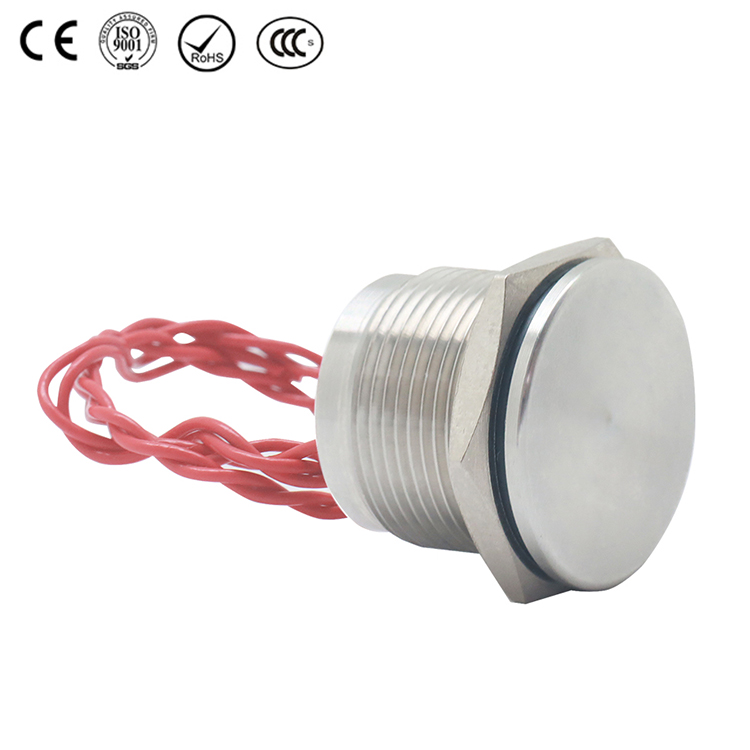

Piezo Switch 22mm

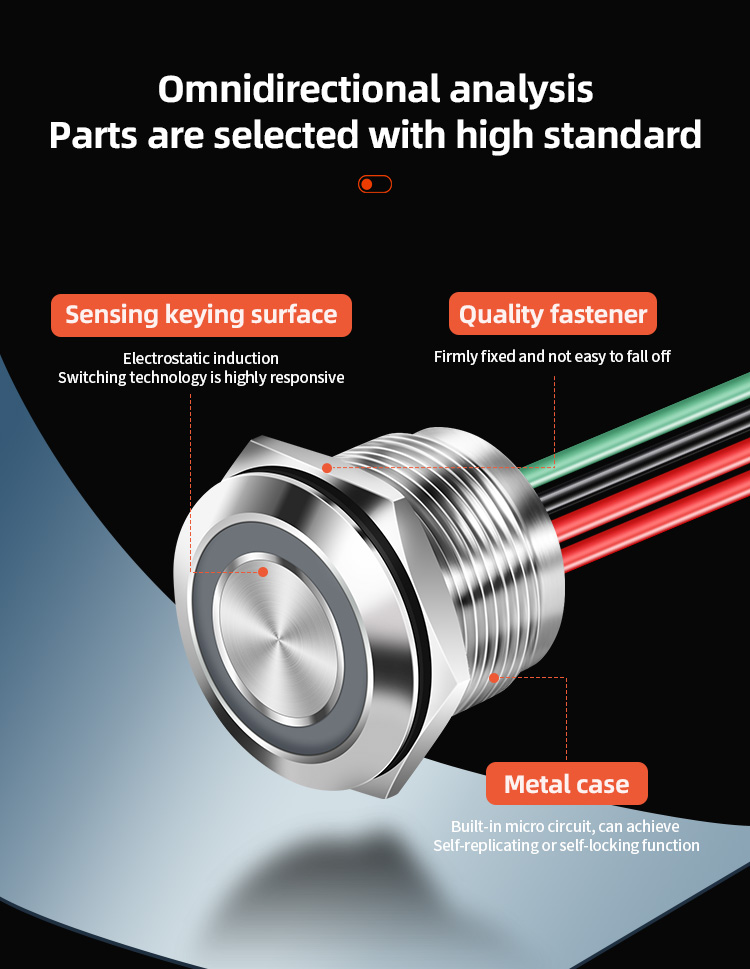

A piezoelectric switch is a device that uses the piezoelectric effect to achieve switching functions. It has the advantages of being small in size, fast in response, and long in lifespan, and is widely used in various electronic devices and sensors.
Features:
. A variety of styles to choose from:Flat/Chamfer/Concave

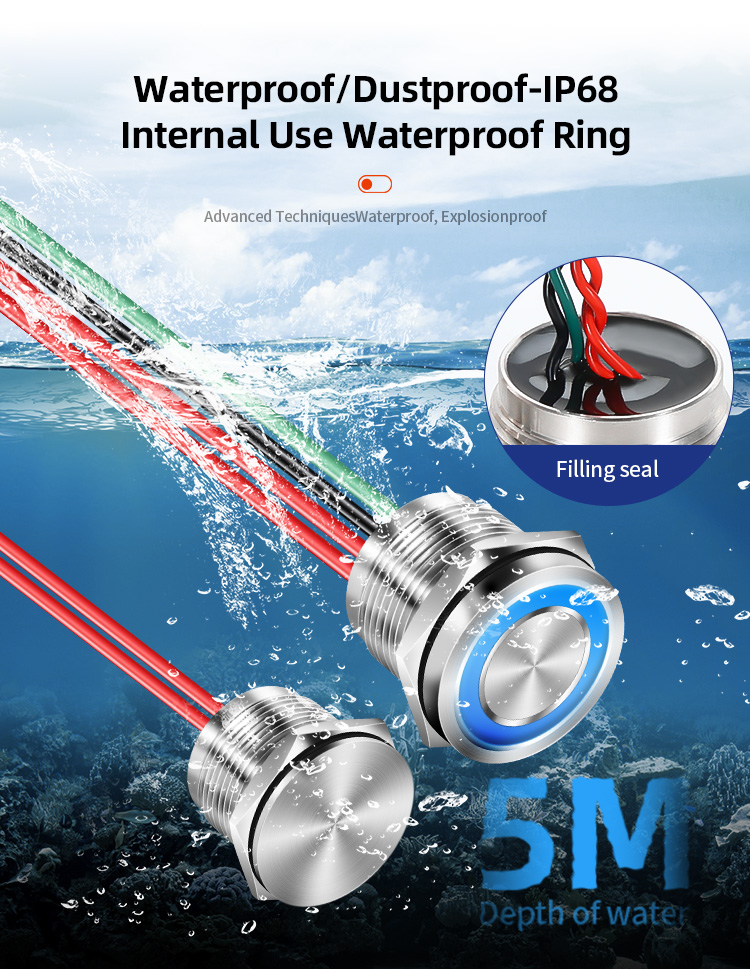

. Glued Package IP68 waterproof pure copper wire,good
conductivity
. A variety of styles to choose from:Flat/Chamfer/Concave
. Glued Package IP68 waterproof pure copper wire,good
conductivity
. Waterproof,dustproof,flame retardant head waterproof and
dustproof flame retardant plastic parts

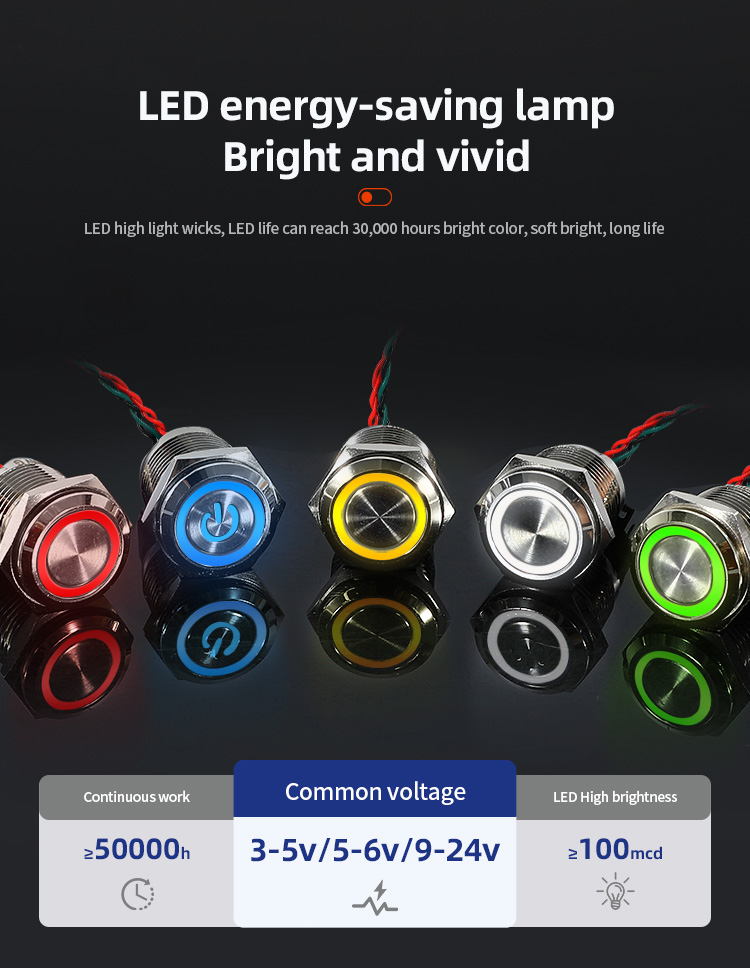

. LED high light wicks,LED life can reach 30,000 hours
bright color,soft bright,long life
. The LED indicators are available in a variety of colors
Online Service
Product Detail









Specifications
ZMPS22A-H10M/D
ZMPS22A-D10M/R
Blue,Red,Green,Yellow
White,Orange,Purple
Note: Dot lights are only available in the first 5 colors
Product Name

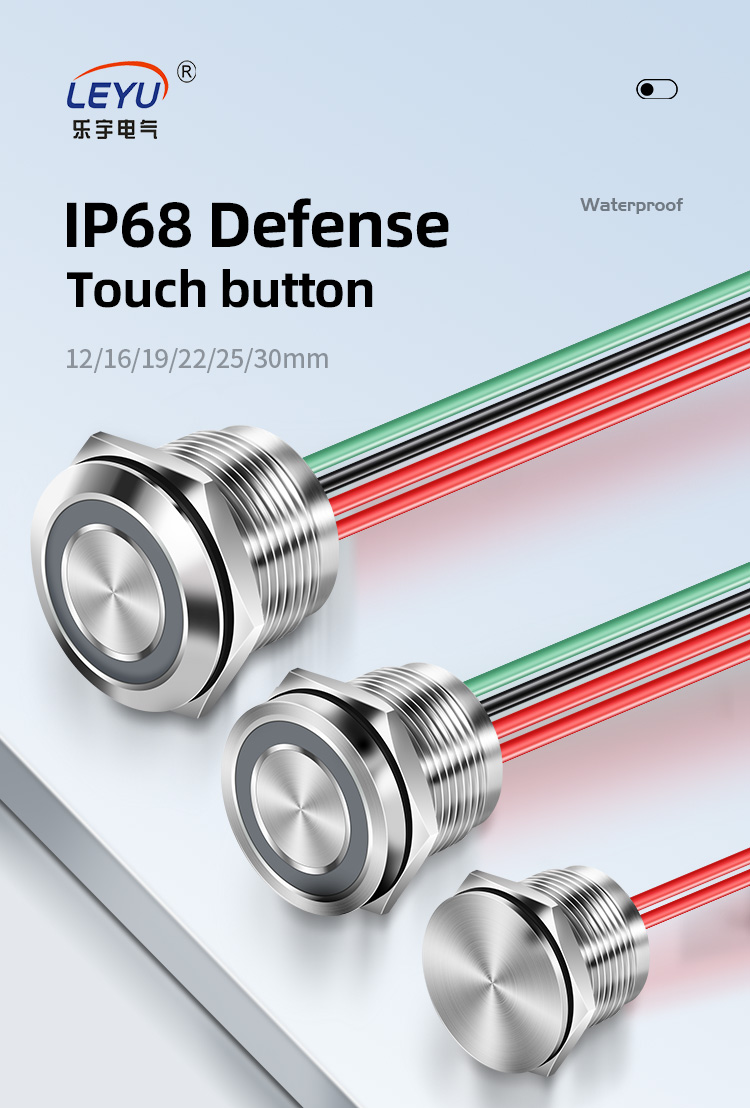

IP68 Waterproof Piezo Switch
Model
ZMPS22A-H10M
Mounting Hole Size
22mm
Operation Types
Momentary (Reset)
Switch Combination
1NO
Actuator Shape
Flat/Chamfer/Concave/High Flat

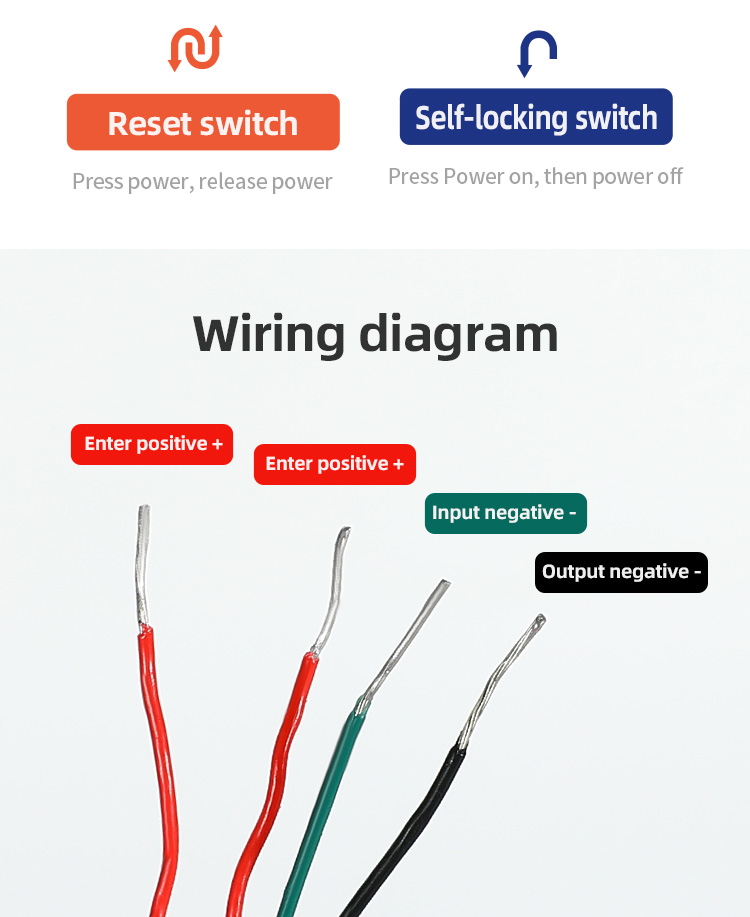

Terminal type
Wired lead
Illuminated or not
Yes or NO
Led Voltage
3~24V
Led Color
Illuminated Type
Ring/Dot

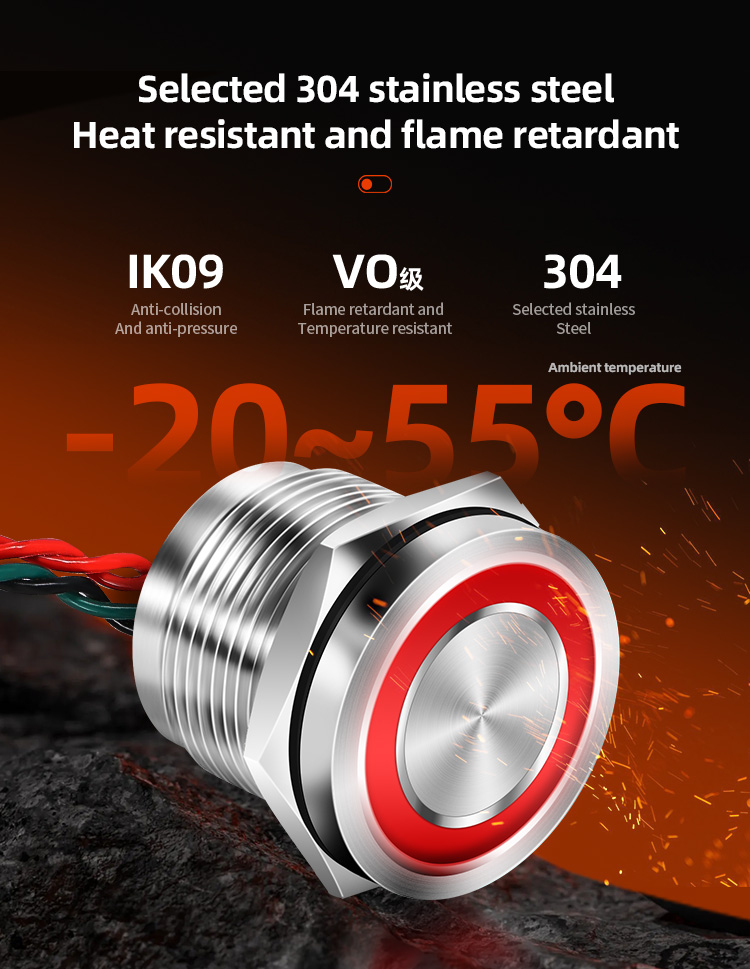

Enclosure Material
Stainless Steel/ Aluminum
Rated Current
2A
Contact Resistance
50 mΩ max
Operating Force
6 to 15N
Dielectric Intensity
2000VAC
Operating Temperature
-40°C to +75°C
Accessories
Nut, Rubber Waterproof O-ring
Customized symbol,colored housing or Connector
Acceptable and with fast shipping

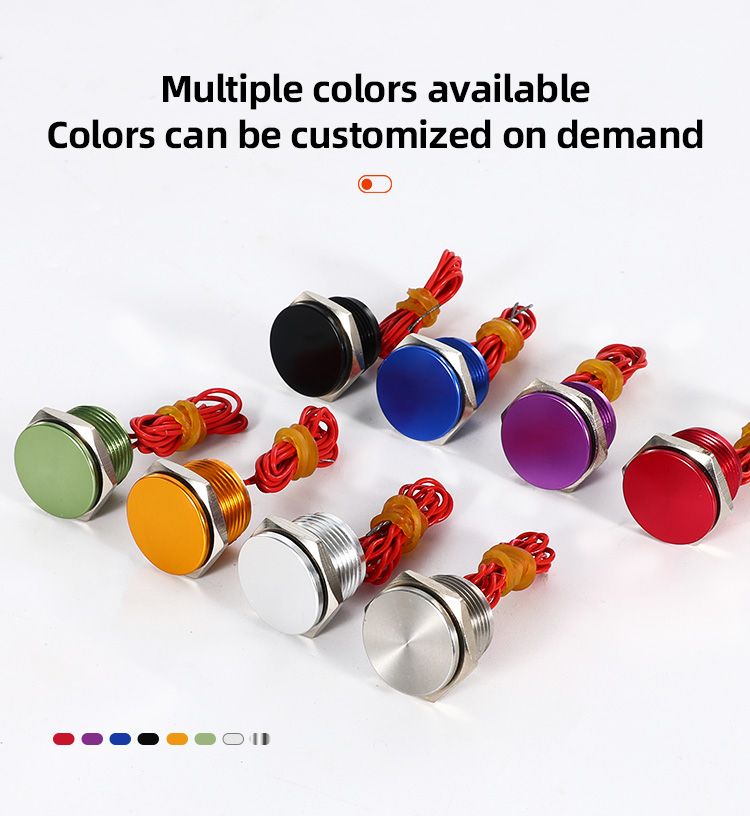

Choose 2/3 colors from two-color/three-color light combination (above colors)
