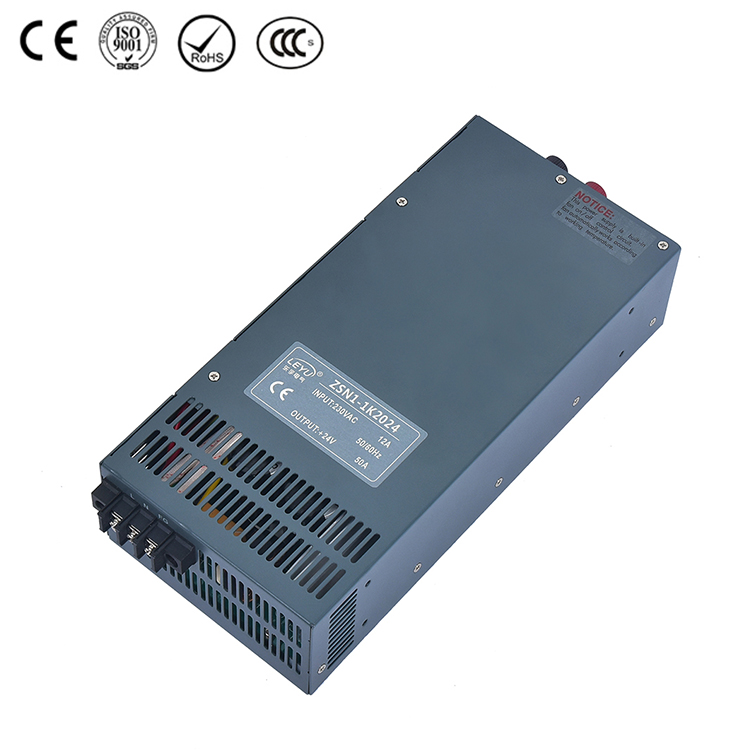

ZSN1-1K2

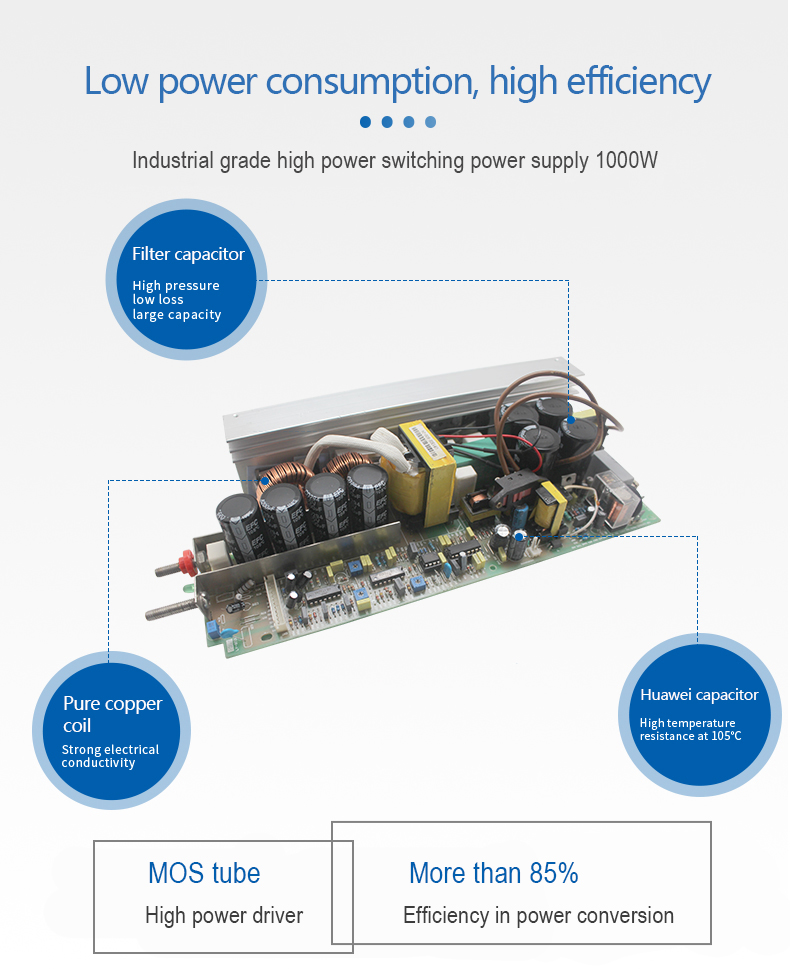

High-power switched-mode power supplies are mainly used in industrial automation control, military equipment, medical instruments, and communication systems. They are characterized by small size, good heat dissipation, and low cost. The device consists of a main circuit, PWM control circuit, microcontroller control circuit, and auxiliary power supply.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
Next

Product Detail

SPECIFICATIONS


Model

ZSN1-1K2-12

ZSN1-1K2-15

ZSN1-1K2-24

ZSN1-1K2-48

OUTPUT
DC Voltage
 12v / 15v / 24v / 48v
Rated Current
 100a / 80a / 50a / 25a
Current Range 0-
 0-100a / 0-80a / 0-50a / 0-25a
Rated Power
 1200W
Ripple & Noise
 120mVp-p / 1500mVp-p / 240mVp-p / 480mVp-p
Voltage Adj. Range

10~13.2V

13.5~18V

20~26.4V

41~56V

Voltage Tolerance
 ±1%
Inlet Stability
 ±0.5%
Load Stability
 ±0.5%
Setup, Rise,Hold Up Time 1.5s,50ms,20ms at full load
INPUT
Voltage Range
 180~264VAC   47~63V
AC Current
 11A/230VAC
Efficiency
 83% / 85% / 85% / 87%
Inrush Current
 120A/230V
Leakage Current
 <3.5mA/240VAC
PROTECTION
Over Load

Current limiting delay shutdown o/p voltage ,repower onto recover

Over Temp TSW1 (Power transistor when temp>100℃ shut down O/P voltage re-power on to recover
ENVIRONMENT
Working Temp., Humidity
 -10℃~+65℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity
 -20℃~+85℃, 10%~95%RH
Temp. Coefficien
 ±0.03%/℃(0~50℃)
Vibration
 10~200Hz,2G 10min,/1cycle,Period for 60min,Each X.Y.X axes
Dimension
 291*132*68mm(L*W*H)
Weight
 2.5Kg
