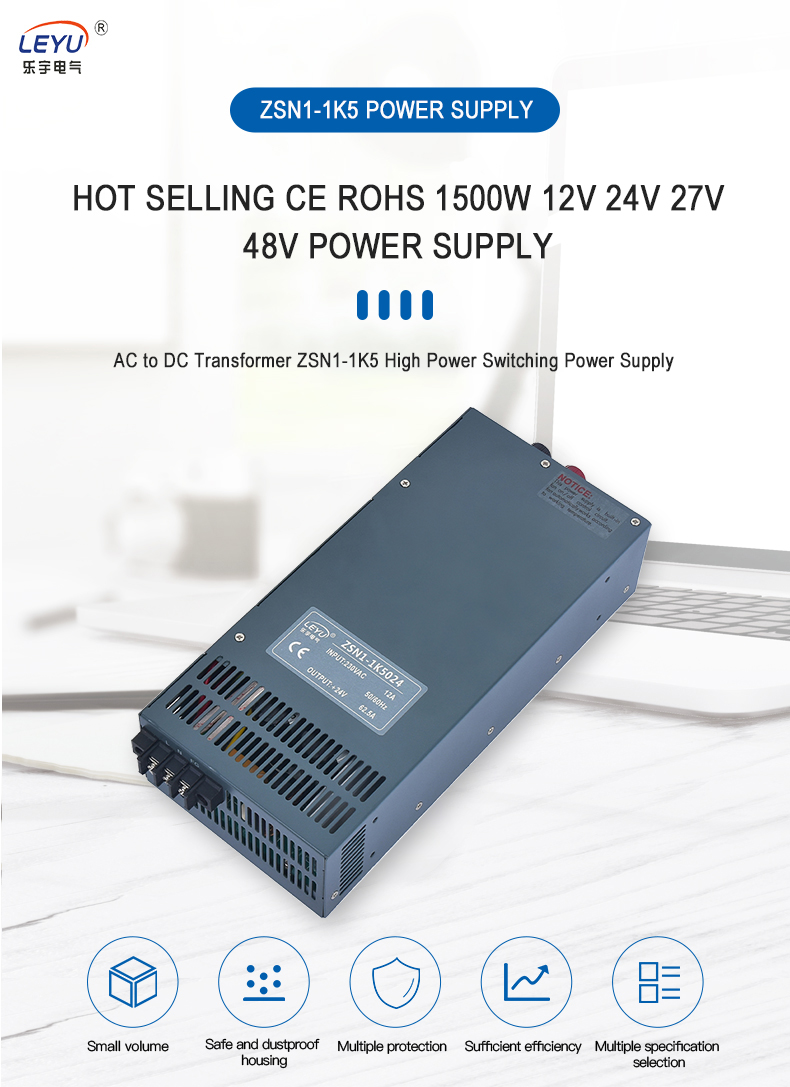

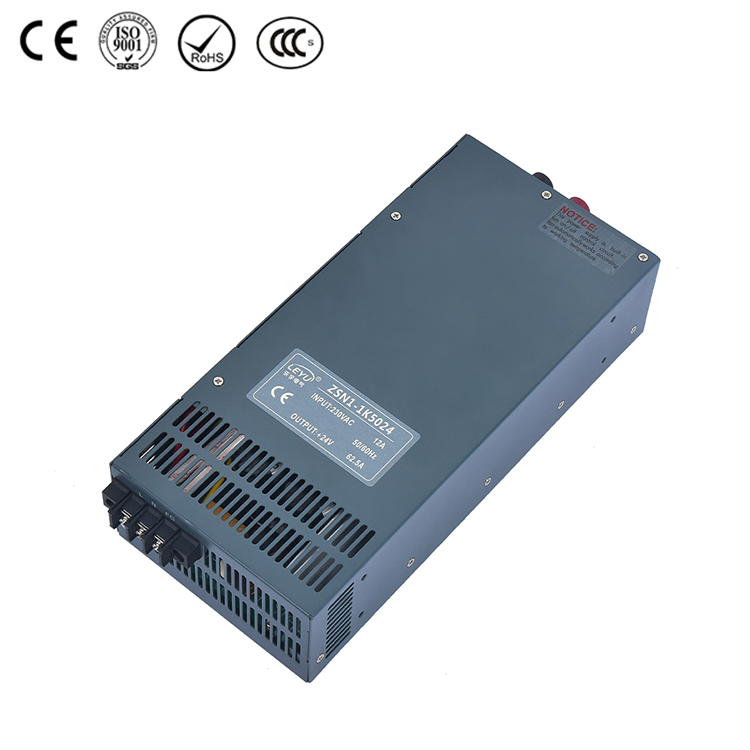

ZSN1-1K5

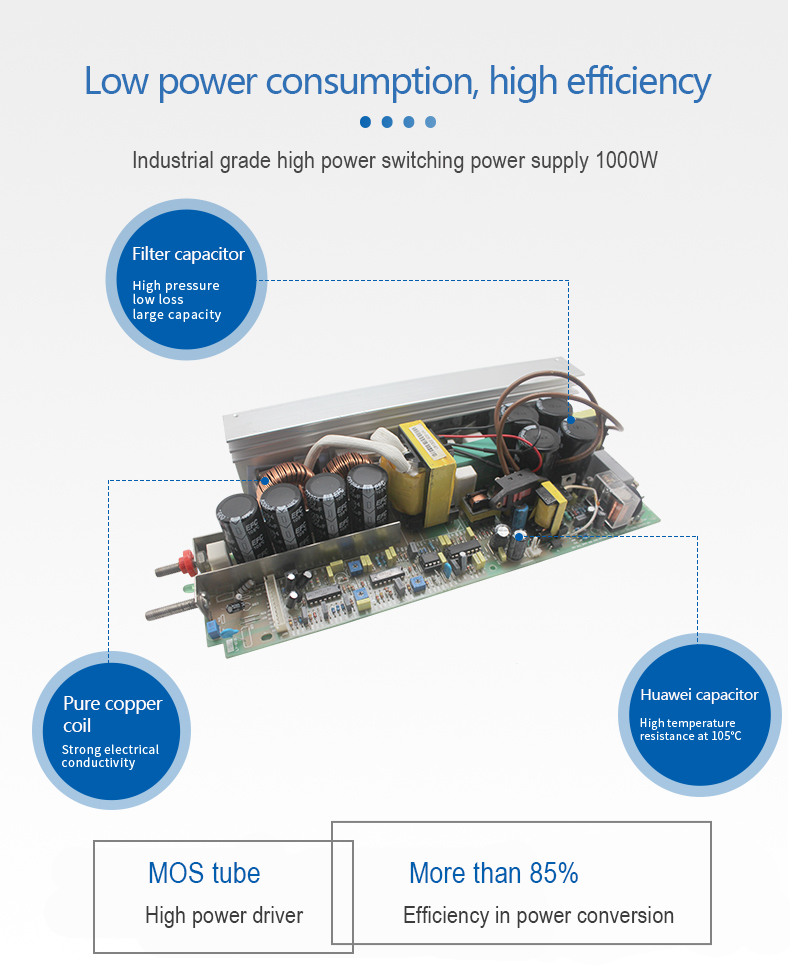

High-power switched-mode power supplies are mainly used in industrial automation control, military equipment, medical instruments, and communication systems. They are characterized by small size, good heat dissipation, and low cost. The device consists of a main circuit, PWM control circuit, microcontroller control circuit, and auxiliary power supply.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
Next

Product Detail





SPECIFICATIONS

Model

ZSN1-1K5-12

ZSN1-1K5-24

ZSN1-1K5-27

ZSN1-1K5-48

OUTPUT
DC Voltage
 12v / 24v / 27v / 48v
Rated Current
 125A / 100A / 62.5A / 32A
Current Range

0-125A

0-100A

0-62.5A

0-32A

Rated Power
 1500W / 1536W
Ripple & Noise

120mVp-p

150mVp-p

240mVp-p

480mVp-p

Voltage Adj. Range

10.8~13.2V

20~26.4V

24~30V

41~56V

Voltage Tolerance
 ±5%
Inlet Stability
 ±1% / ±0.5%
Load Stability
 ±1% / ±0.5%
Setup, Rise, Hold Up Time
 800ms, 50ms, 16ms at full load
INPUT
Voltage Range
 180~264VAC  47～63 Hz
AC Current
 12A/230VAC
Efficiency
 83% / 84% /85% /87%
Inrush Current
 120A/230V
Leakage Current
 <3.5mA/240VAC

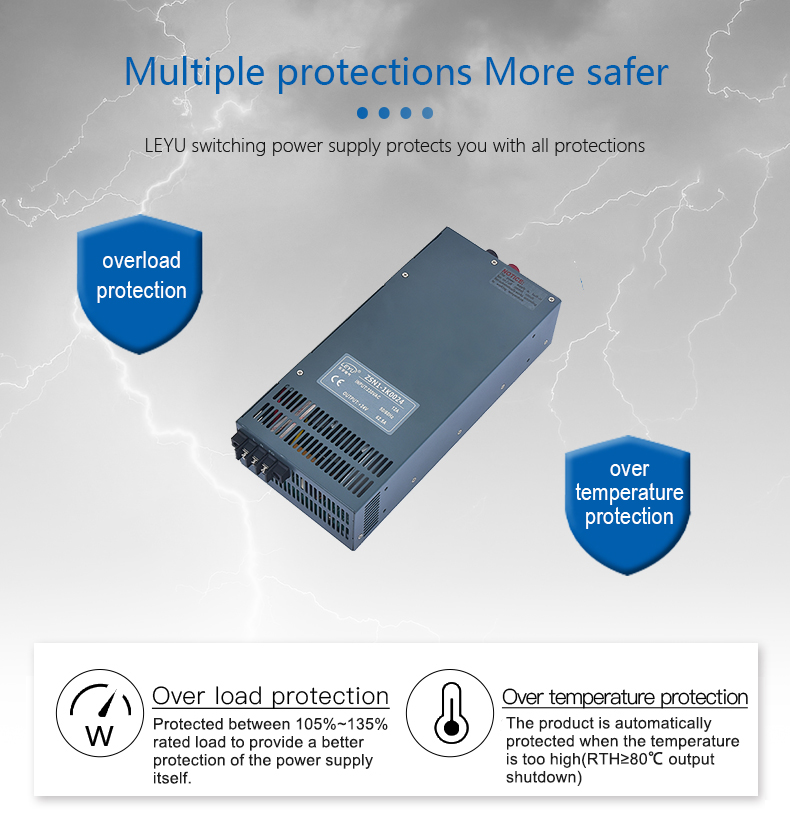

PROTECTION
Over Load
 110%~135% Type: plusing hiccup shutdown Reset:auto recovery
Over Temp.
 RTH>=80 output shutdown
ENVIRONMENT
Working Temp., Humidity
 -10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity
 -20℃~+85℃, 10%~95%RH
Temp. Coefficient
 ±0.03%/℃(0~50℃)
Vibration
 10~500Hz,2G 10min,/1cycle,Period for 60min,Each X.Y.X axes

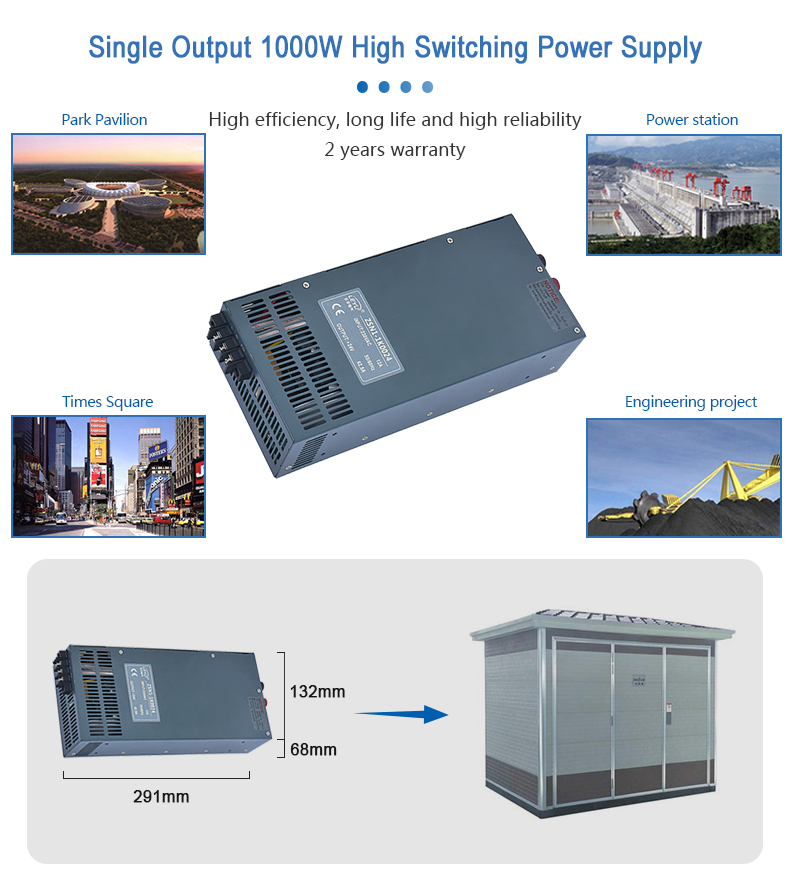

Dimension
 291*132*68mm(L*W*H)
Weight 2.5Kg
