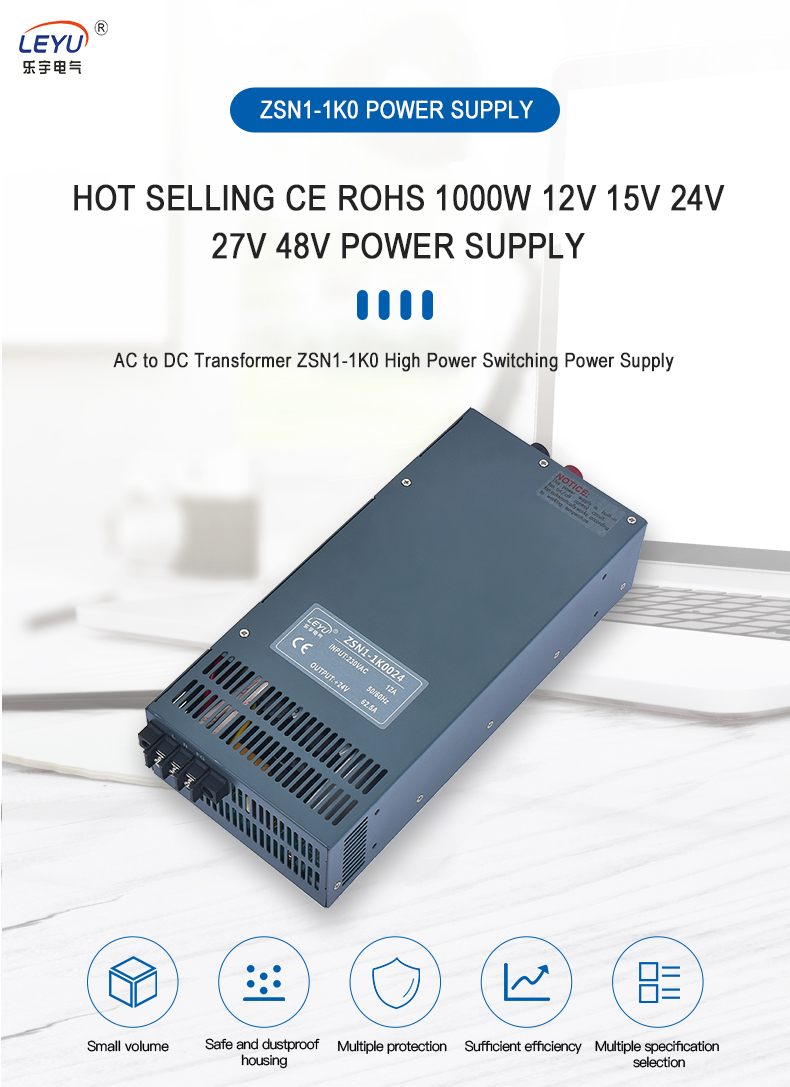

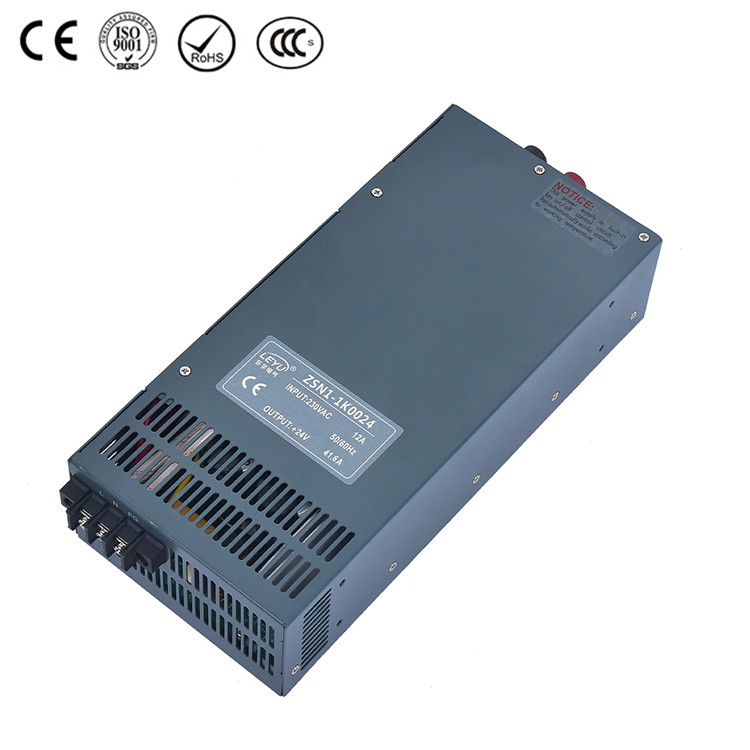

ZSN1-1KO

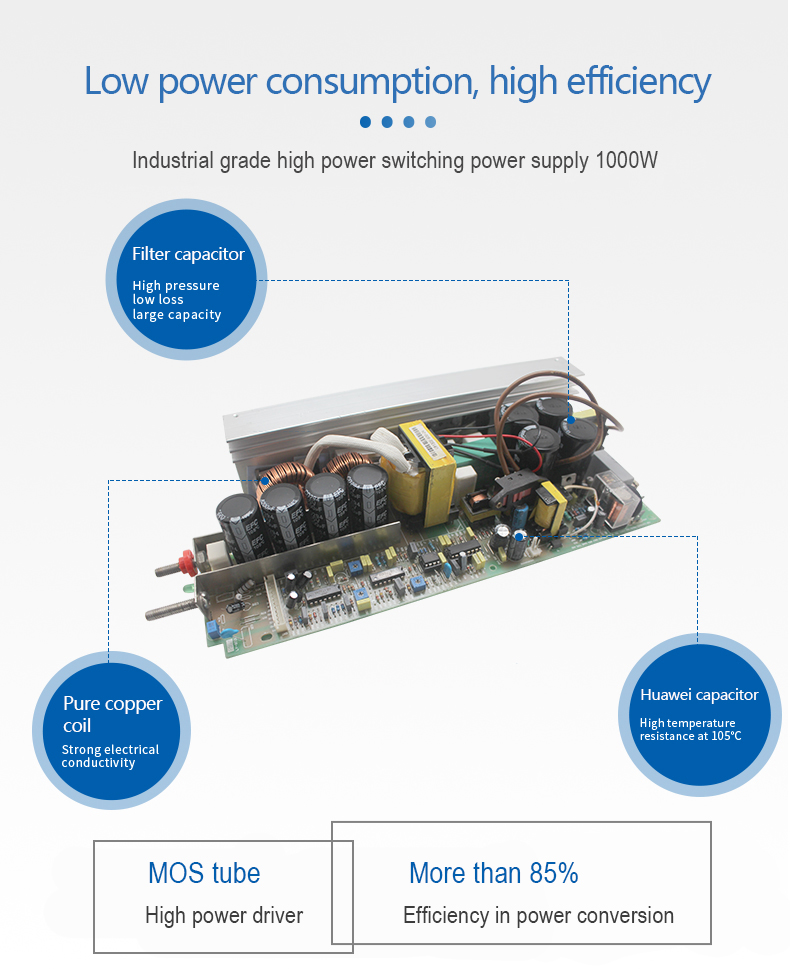

High-power switched-mode power supplies are mainly used in industrial automation control, military equipment, medical instruments, and communication systems. They are characterized by small size, good heat dissipation, and low cost. The device consists of a main circuit, PWM control circuit, microcontroller control circuit, and auxiliary power supply.

Online Service

Print this Page
Skype Online
E-mail Us
QQ
Facebook
wangwang
Linkedin
Whatsapp
Wechat
Online Inquiry
Previous
Next

Product Detail


SPECIFICATIONS

Model

ZSN1-1K0-12

ZSN1-1K0-15

ZSN1-1K0-24

ZSN1-1K0-27

ZSN1-1K0-48

OUTPUT
DC Voltage
 12V / 15V / 24V / 27V / 48V
Rated Current
 80A / 67A / 40A / 24A / 20A
Current Range
 0-80A / 0-67A / 0-40A / 0-24A / 0-20A
Rated Power
 960W/1005W/999W/960W
Ripple & Noise

200mVp-p / 200mVp-p / 240mVp-p/ 240mVp-p/300mVp-p

Voltage Adj. Range

10~13.2V

13.5~18V

20~26.4V

24~30V

41~56V


Voltage Tolerance
 ±10% / ±5%
Inlet Stability
 ±0.5%
Load Stability
 ±0.5%
Setup,Rise,Hold Up Time
 1.5s,50ms,20ms at full load
INPUT
Voltage Range
 180~264VAC   47~63Hz
AC Current
 10A/230V
Efficiency
 80% / 83% / 85% / 86% / 87%
Inrush Current
 Cold-start current 60A 230V
Leakage Current
 <3.5mA/240VAC

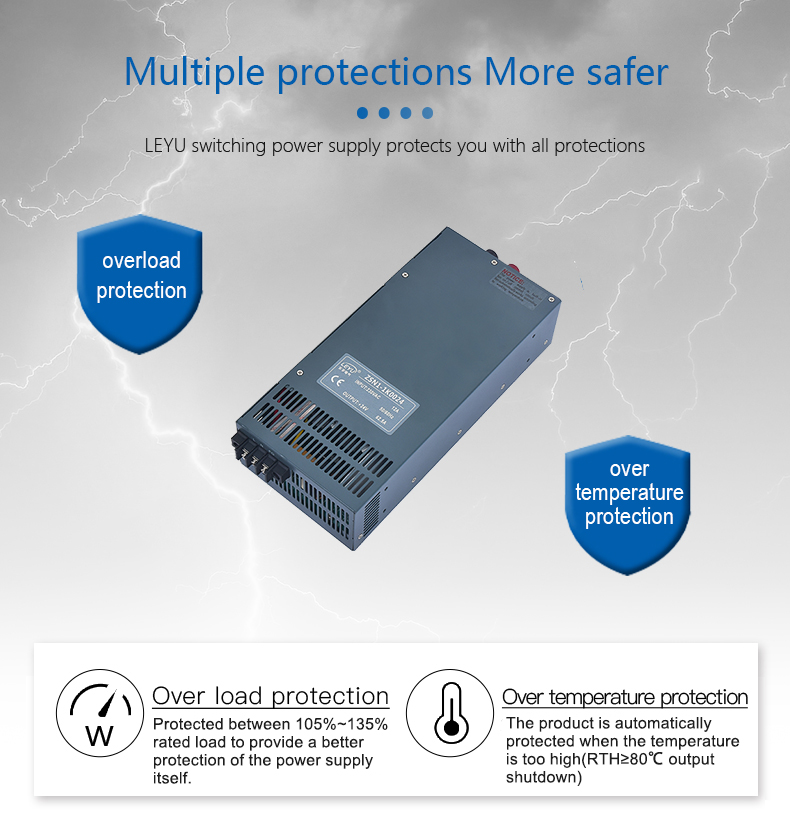

PROTECTION
Over Load

105%~135%

Protection type: plusing hiccup shutdown Reset:Fecycle AC ON/OFF

Over Temp.
 RTH≥80℃ output shutdown
ENVIRONMENT
Working Temp., Humidity
 -10℃~+60℃(Refer to output derating curve),20%~90%RH
Storage Temp., Humidity
 -20℃~+85℃, 10%~95%RH
Temp. Coefficient
 ±0.03%/℃(0~50℃)
Vibration
 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes

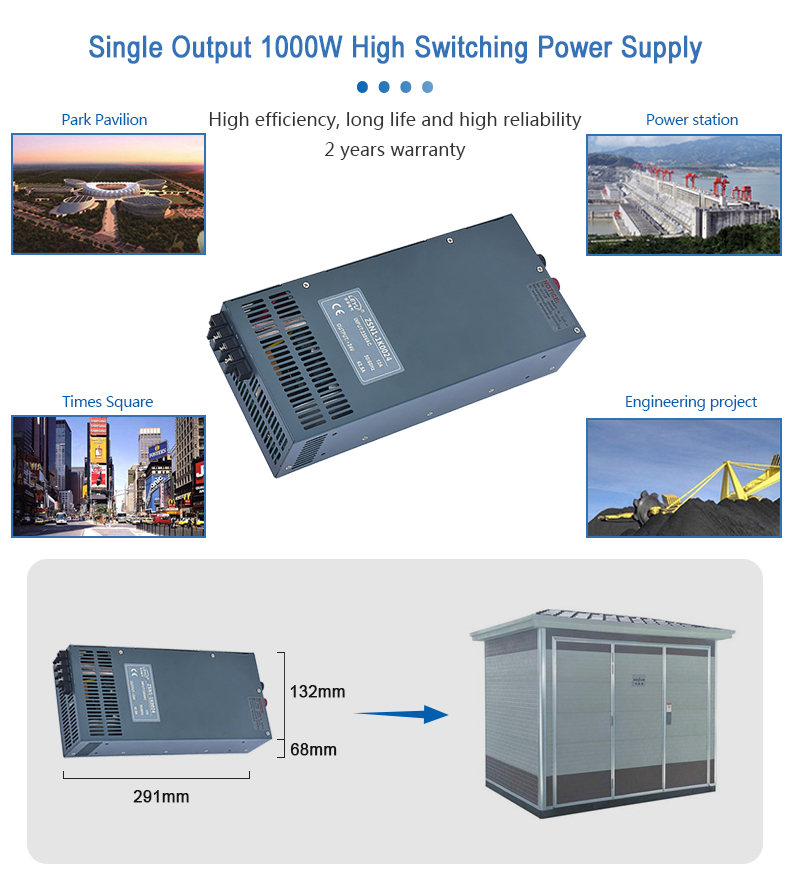

Dimension
 291*132*68mm(L*W*H)
Weight
 2.5Kg
