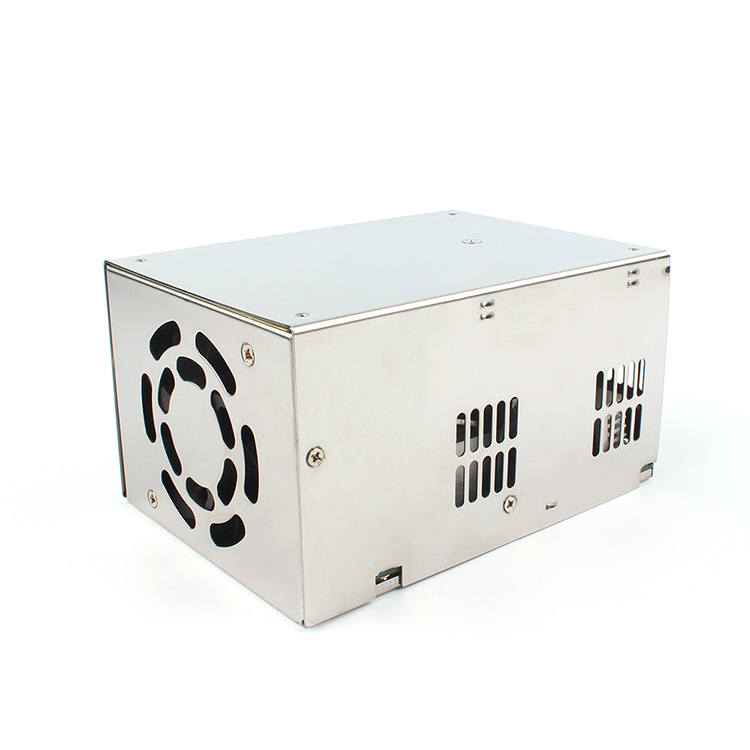

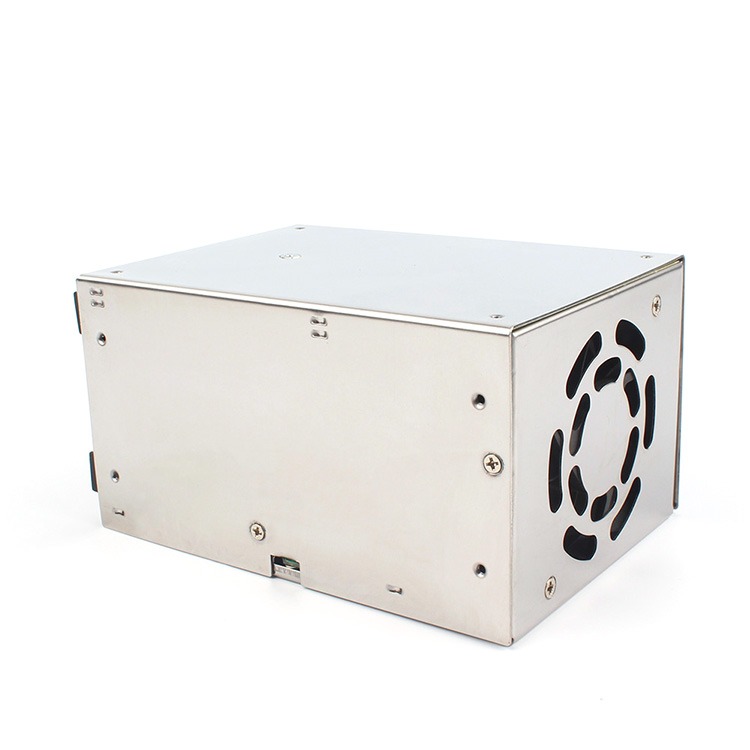

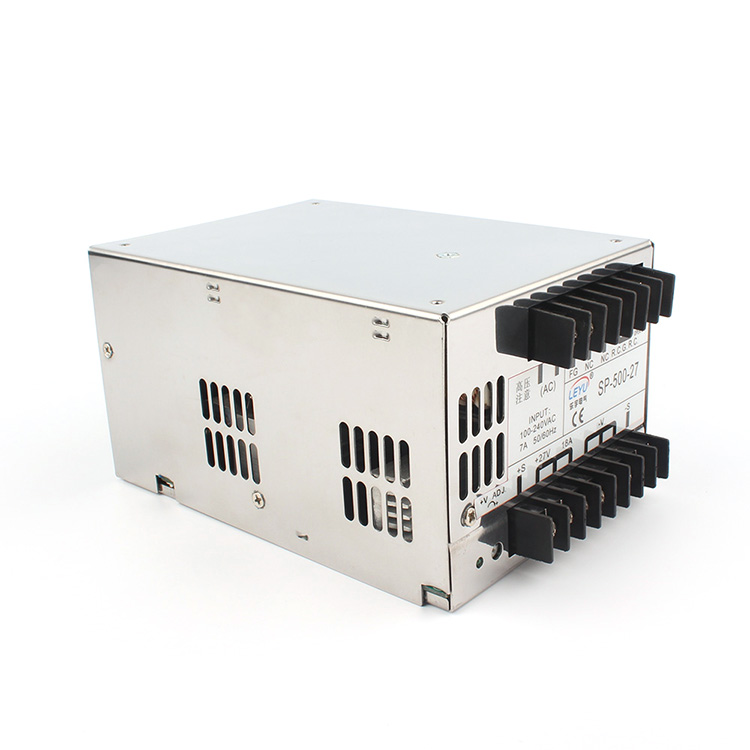

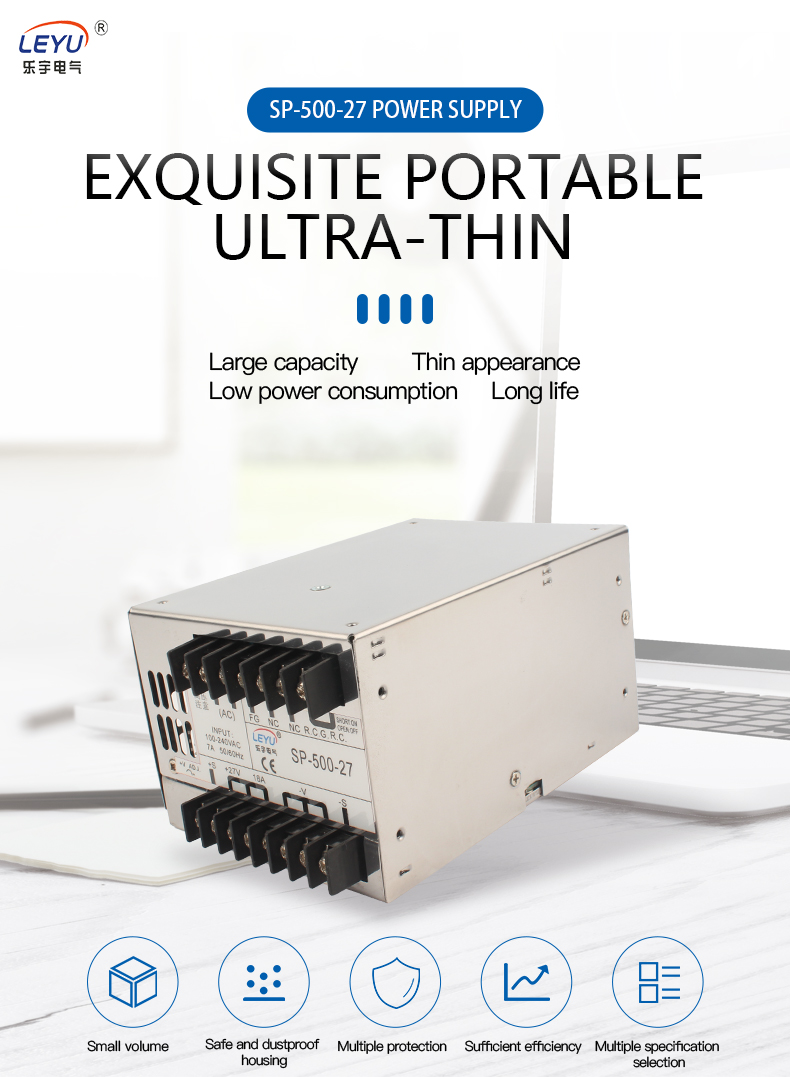

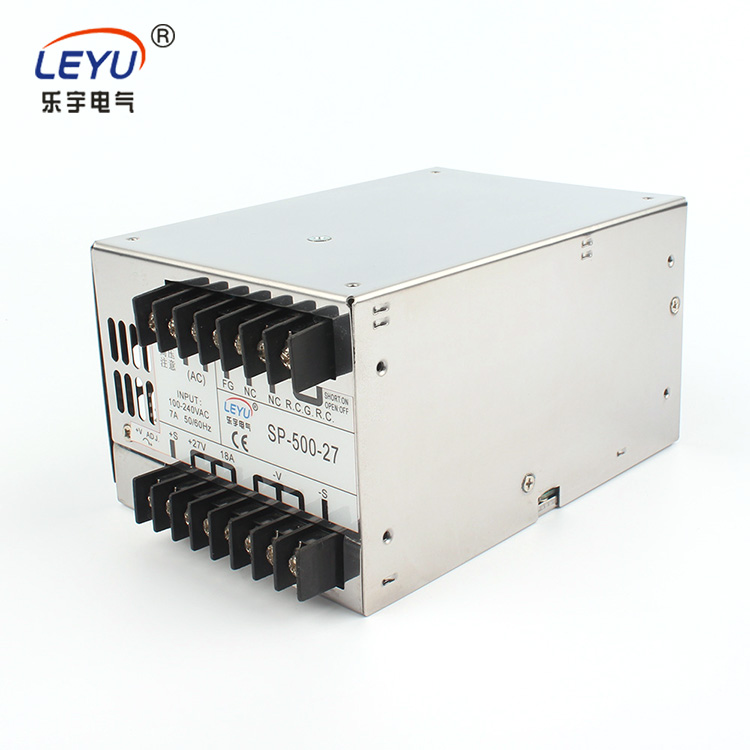

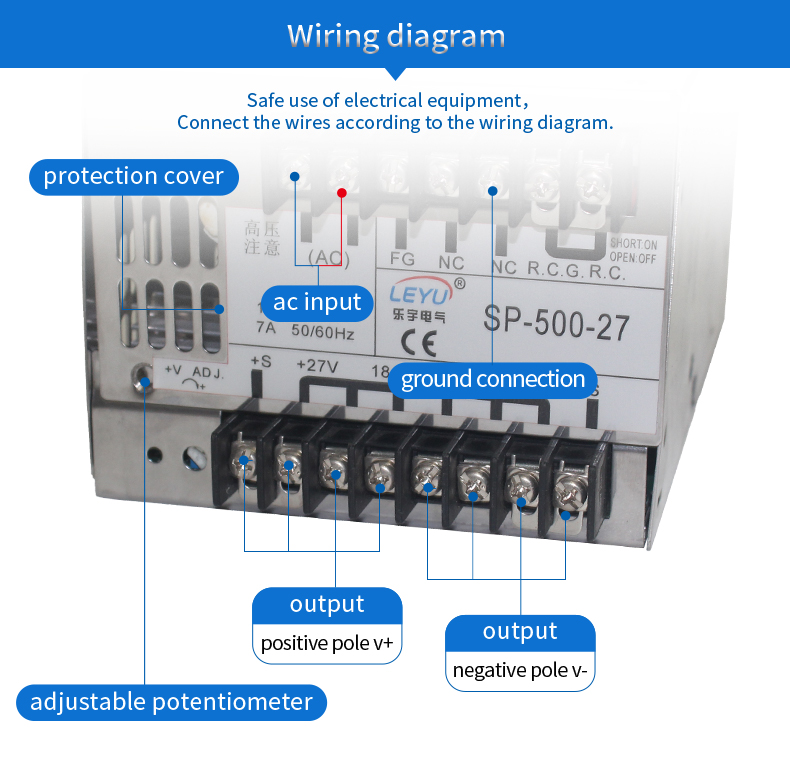

500W Single Output with PFC Function SP-500 series

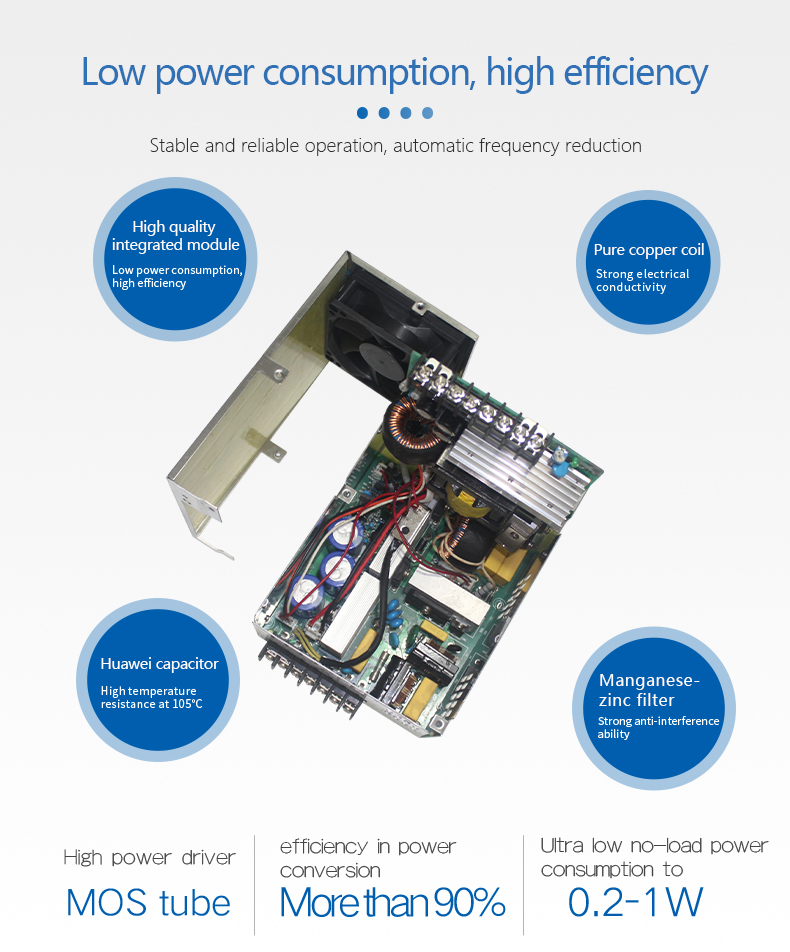

Features:
·Universal AC input/ full range
·Built-in active PFC function
·100% full load burn-in test

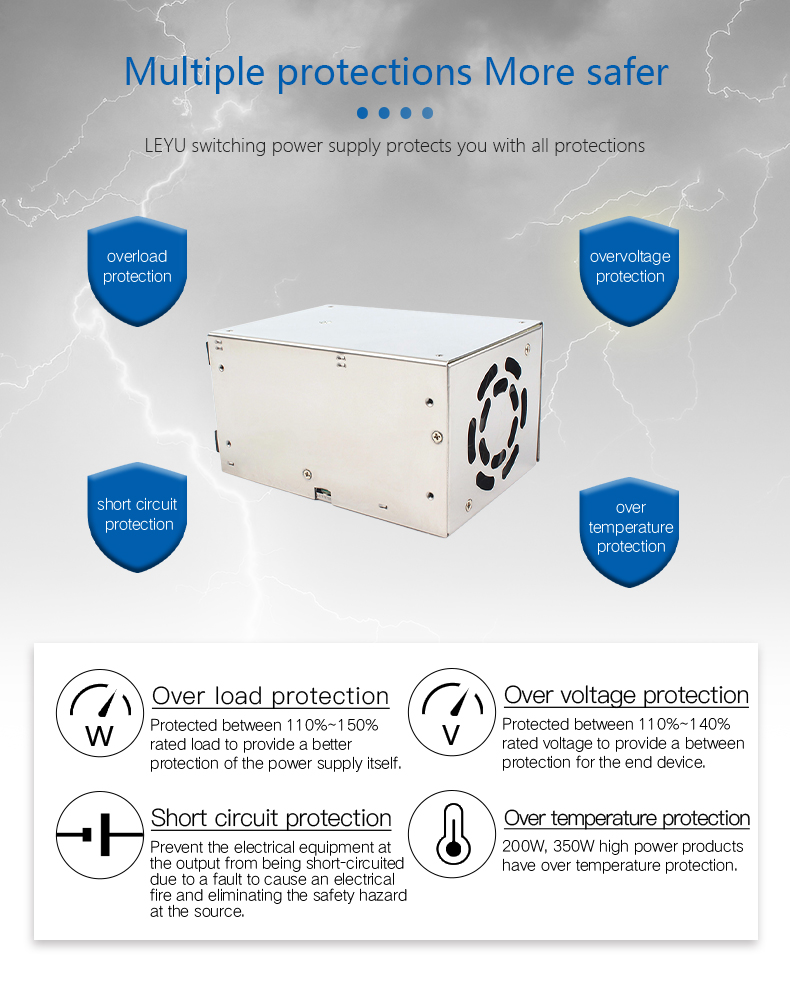

·Protections: Short circuit/ Over load/ Over voltage
·Built-in constant current limiting circuit
·LED indicator for power on
·Fixed switching frequency at PFC: 7KHzPWM:134 KHz
·2 year warranty
|
SPECIFICATIONS |
||||||||||
|
OUTPUT |
|
|||||||||
|
Model |
SP-500-12 |
SP-500-15 |
SP-500-24 |
SP-500-27 |
SP-500-36 |
SP-500-48 |
||||
|
DC Voltage |
12V |
15V |
24V |
27V |
36V |
48V |
||||
|
Rated Current |
40A |
32A |
20A |
18A |
13.8A |
10A |
||||
|
Current Range |
0-40A |
0-32A |
0-20A |
0-18A |
0-13.8A |
0-10A |
||||
|
Rated Power |
480W |
480W |
480W |
486W |
496W |
480W |
||||
|
Ripple&Noise |
240mVp-p |
240mVp-p |
240mVp-p |
200mVp-p |
200mVp-p |
300mVp-p |
||||
|
Voltage Adj. Range |
10-13.2V |
13.5-18V |
20-26.4V |
24-30V |
32.4-39.6V |
41-56V |
||||
|
Voltage Tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
±1% |
||||
|
Line Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||||
|
Load Regulation |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||||
|
Setup,Rise,Hold Up Time |
1.5s,50ms,20msat full load |
|||||||||
|
|
|
|||||||||
|
INPUT |
|
|||||||||
|
Voltage Range |
88~264VAC47-63Hz;124~370VDC |
|||||||||
|
AC Current |
7A/115V3.5A/230V |
|||||||||
|
Efficiency |
84% |
84% |
83% |
85.5% |
86.5% |
87% |
||||
|
Inrush Current |
18A/115V 36A/230V |
|||||||||
|
Leakage Current |
<3.5mA/240VAC |
|||||||||
|
|
|
|||||||||
|
PROTECTION |
|
|||||||||
|
Over Load |
105-135% |
|||||||||
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
||||||||||
|
Over Voltage |
13.8-16.2V |
15.5-18.2V |
18-21V |
27.6-32.4V |
31-36.5V |
57.6-67.2V |
||||
|
Over Temp. |
≥55℃Fan On≤45℃Fan Off ≥70℃ Output Cutout |
|||||||||
|
|
|
|||||||||
|
ENVIRONMENT |
|
|||||||||
|
Working Temp.Humidity |
-10℃~+50℃; 20%~90%RH |
|||||||||
|
Storage Temp.Humidity |
-20℃~+85℃; 10%~95%RH |
|||||||||
|
Temp.Coefficient |
±0.03%/℃(0～50℃) |
|||||||||
|
Vibration |
10~500Hz,2G 10min,/11cycle,60min,each axes |
|||||||||
|
|
|
|||||||||
|
SAFETY |
|
|||||||||
|
Withstand Voltage |
I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC |
|||||||||
|
Isolation Resistance |
I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ |
|||||||||
|
|
|
|||||||||
|
STANDARD |
|
|||||||||
|
Safety Standard |
UL1950 |
|||||||||
|
EMCStandard |
CISPR22(EN 55022),IEC1000-4,2,3,4,5,6,8,11 IEC1000-3-2 |
|||||||||
|
|
|
|||||||||
|
OTHERS |
|
|||||||||
|
Dimension |
185*120*93mm(L*W*H) |
|||||||||
|
Weight |
1.8kg |
|||||||||
|
|
|
|||||||||
|
NOTE |
|
|||||||||
|
1.All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. 2.Tolerance:includes set up tolerance,line regulation and load regulation 3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ&47μ parallel capacitor. 4.Line regulation:min&max voltage of the rated load. 5.Load regulation:load from 0 to 100% |
||||||||||
